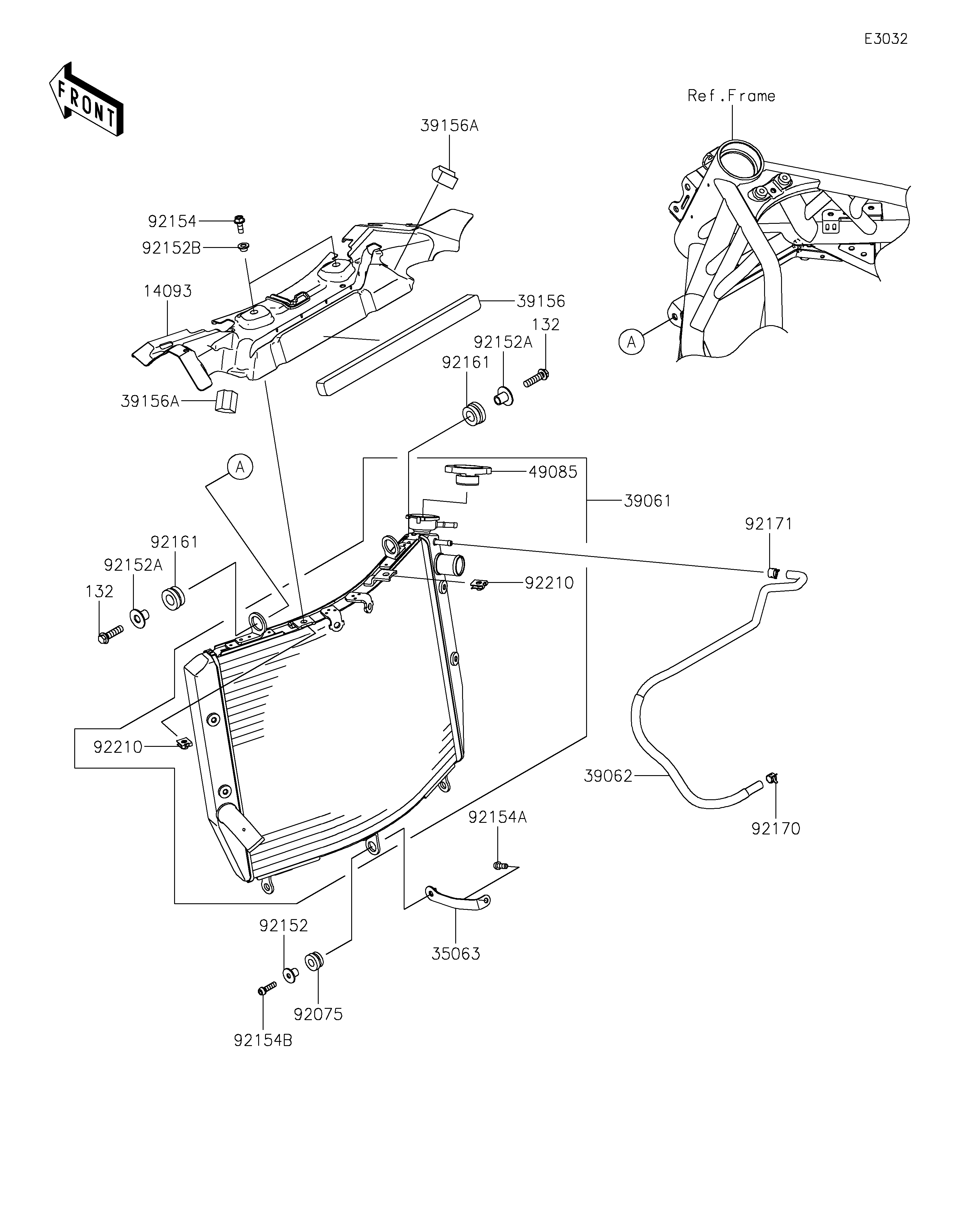

2018 NINJA H2™R - Radiator

DOWNLOAD PDF
SELECT A NEW PART
14093
35063
39061
39062
39156
39156A
39156A
49085
92075
92152
92152A
92152A
92152B
92154
92154A
92154B
92161
92161
92170
92171
92210
92210
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,HEAT 14093 14093-0158 1
STAY,RADIATOR 35063 35063-0997 1
RADIATOR-ASSY 39061 39061-0698 1
HOSE-COOLING,AIR BLEED 39062 39062-0688 1
PAD,20X285X15 39156 39156-1840 1
PAD,27X27X15 39156A 39156-1841 2
CAP-ASSY-PRESSURE 49085 49085-0006 1
DAMPER,RUBBER 92075 92075-1123 1
COLLAR,6.5X10X13.1 92152 92152-0332 1
COLLAR 92152A 92152-0439 2
COLLAR 92152B 92152-2111 2
BOLT,FLANGED,6X16 92154 92154-0887 2
BOLT,SOCKET,6X16 92154A 92154-1454 1
BOLT,SOCKET,6X22 92154B 92154-1456 1
DAMPER 92161 92161-0304 2
CLAMP 92170 92170-1493 1
CLAMP 92171 92171-0719 1
NUT 92210 92210-1323 2
BOLT-FLANGED-SMALL,8X30 132 132BC0830 2
