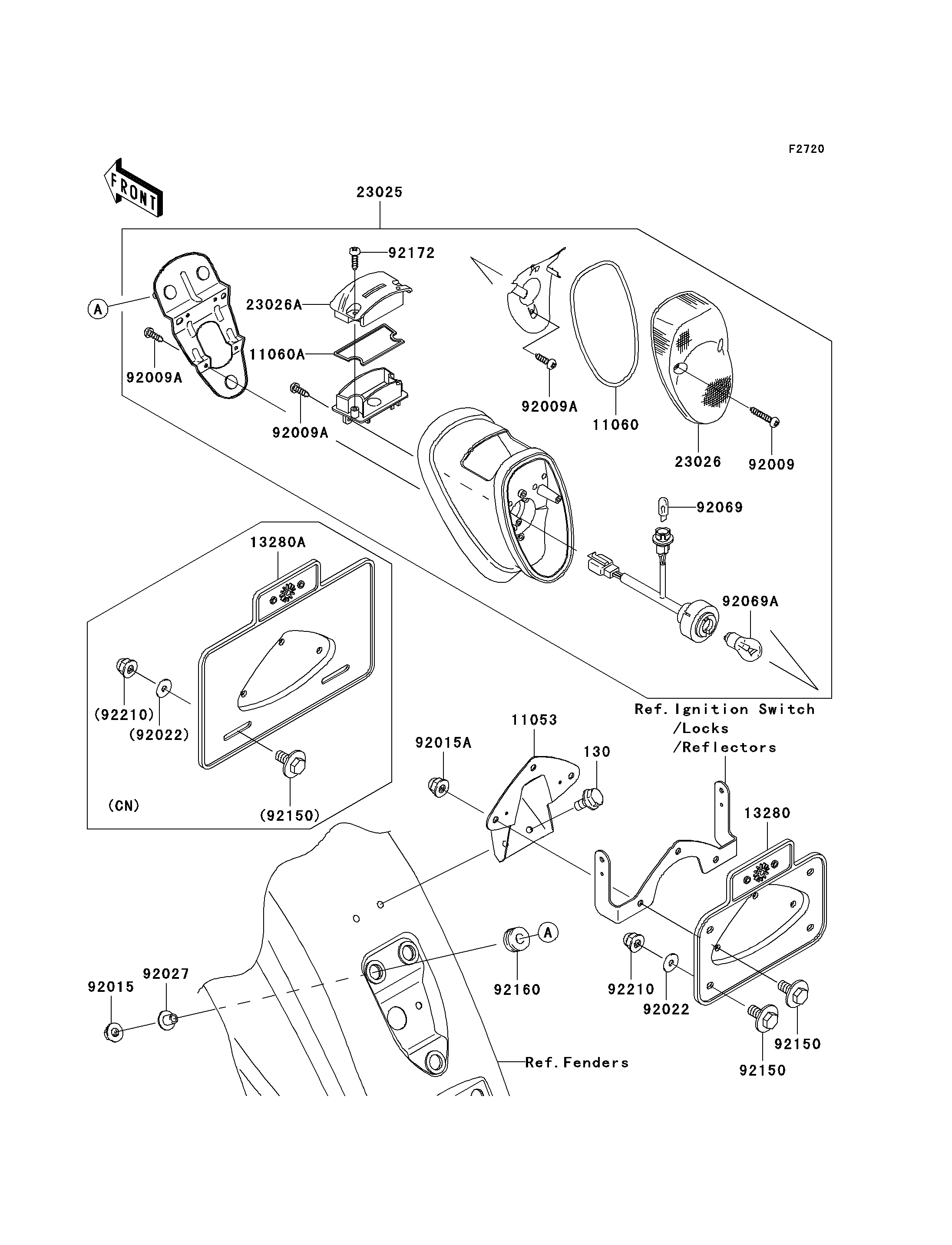

2008 Vulcan® 1600 Nomad™ - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
11053
11060
11060A
23025
23026
23026A
92009
92009A
92009A
92009A
92015
92015A
92027
92069
92069A
92160
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130J0612 2
BRACKET,LICENSE PLATE HOLDER 11053 11053-1220 1
GASKET,TAIL LAMP 11060 11060-1884 1
GASKET,LICENSE LENS 11060A 11060-1939 1
LAMP-TAIL 23025 23025-1333 1
LENS,TAIL 23026 23026-1220 1
LENS,LICENSE 23026A 23026-1224 1
SCREW,TAPPING,4X20 92009 92009-1378 2
SCREW,TAPPING,4X12 92009A 92009-1381 8
NUT,FLANGED,6MM 92015 92015-1367 3
NUT,CAP,6MM 92015A 92015-1385 3
COLLAR,L=13.1,BLACK 92027 92027-1450 3
BULB,12V 5W 92069 92069-1016 1
BULB,12V 21/5W 92069A 92069-1084 1
DAMPER 92160 92160-1162 3
SCREW,TAPPING,4X12 92172 92172-0084 2
HOLDER,LICENSE PLATE 13280 13280-1103 1 CAUS
HOLDER,LICENSE PLATE 13280A 13280-1130 1 CN
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 2 CN
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 4 CAUS
BOLT,6X14 92150 92150-1133 5 CN
BOLT,6X14 92150 92150-1133 7 CAUS
NUT,CAP,6MM 92210 92210-0003 2 CN
NUT,CAP,6MM 92210 92210-0003 4 CAUS
