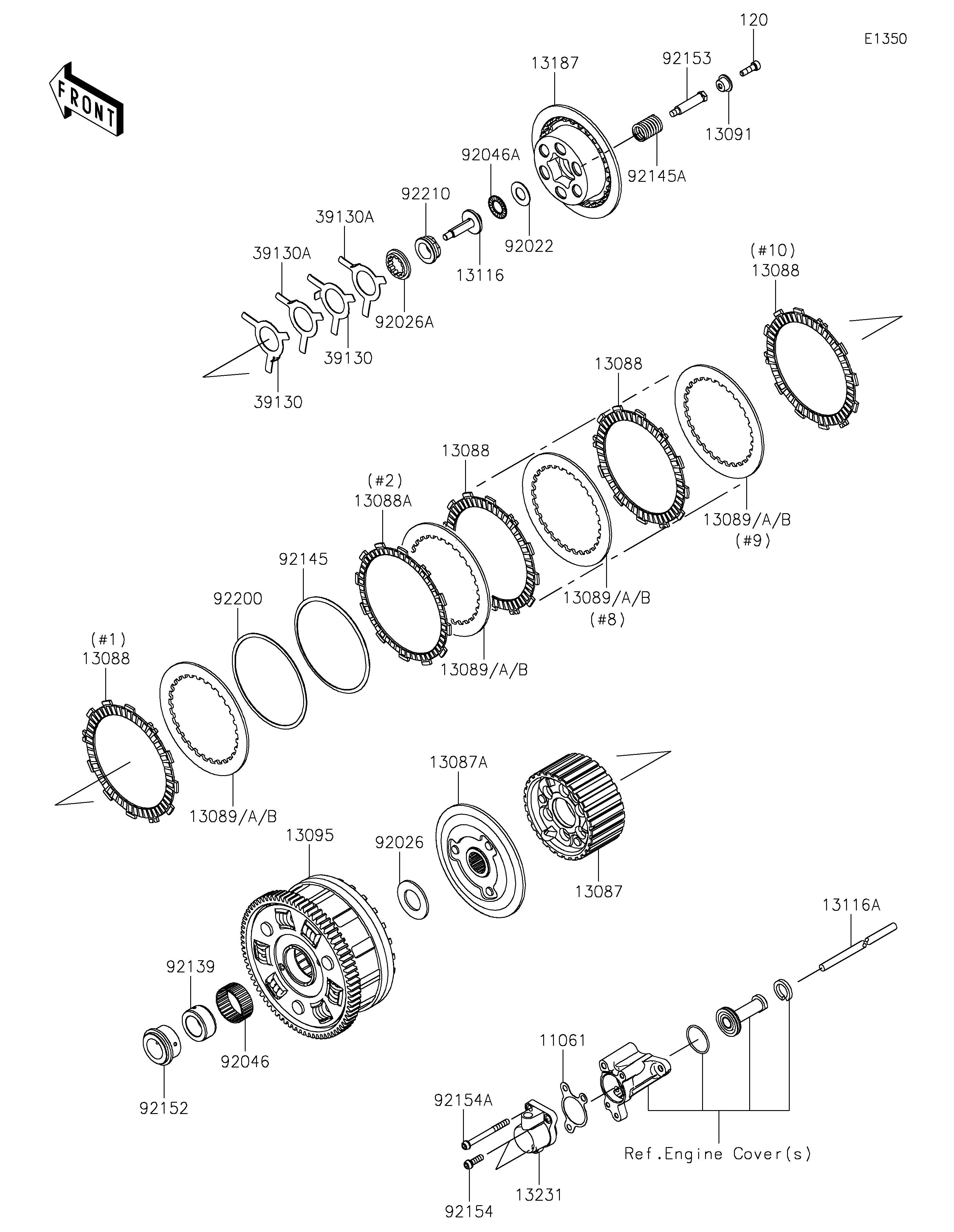

2018 NINJA H2™R - Clutch

DOWNLOAD PDF
SELECT A NEW PART
11061
13087
13087A
13088
13088
13088
13088
13088A
13089
13089
13089
13089
13089A
13089A
13089A
13089A
13089B
13089B
13089B
13089B
13091
13095
13116
13116A
13187
13231
39130
39130
39130A
39130A
92022
92026
92026A
92046
92046A
92139
92145
92145A
92152
92153
92154
92154A
92200
92210
120
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CLUTCH RELEASE 11061 11061-1228 1
HUB-CLUTCH 13087 13087-0575 1
HUB-CLUTCH 13087A 13087-0576 1
PLATE-FRICTION 13088 13088-0566 9
PLATE-FRICTION 13088A 13088-0567 1
PLATE-CLUTCH,T=2.0 13089 13089-0021 AR
PLATE-CLUTCH,T=2.3 13089A 13089-0027 9
PLATE-CLUTCH,T=2.6 13089B 13089-0028 AR
HOLDER,CLUTCH SPRING 13091 13091-1840 6
HOUSING-COMP-CLUTCH 13095 13095-0577 1
ROD-PUSH 13116 13116-0732 1
ROD-PUSH 13116A 13116-0738 1
PLATE-CLUTCH OPERATING 13187 13187-0025 1
RELEASE-ASSY-CLUTCH 13231 13231-0008 1
SPRING-LEAF 39130 39130-1078 2
SPRING-LEAF 39130A 39130-1079 2
WASHER,15.1X29X1.0 92022 92022-1463 1
SPACER,25.5X47X2.5 92026 92026-022 1
SPACER 92026A 92026-0792 1
BEARING-NEEDLE 92046 92046-0041 1
BEARING-NEEDLE,AXK1102 92046A 92046-1052 1
BUSHING,25X38X17.3 92139 92139-0304 1
SPRING 92145 92145-1250 1
SPRING 92145A 92145-1662 6
COLLAR 92152 92152-0866 1
BOLT 92153 92153-0797 6
BOLT,SOCKET,6X20 92154 92154-1623 2
BOLT,SOCKET,6X65 92154A 92154-1624 1
WASHER,T=1.0 92200 92200-1579 1
NUT 92210 92210-0397 1
BOLT-SOCKET,6X20 120 120Q0620 6
