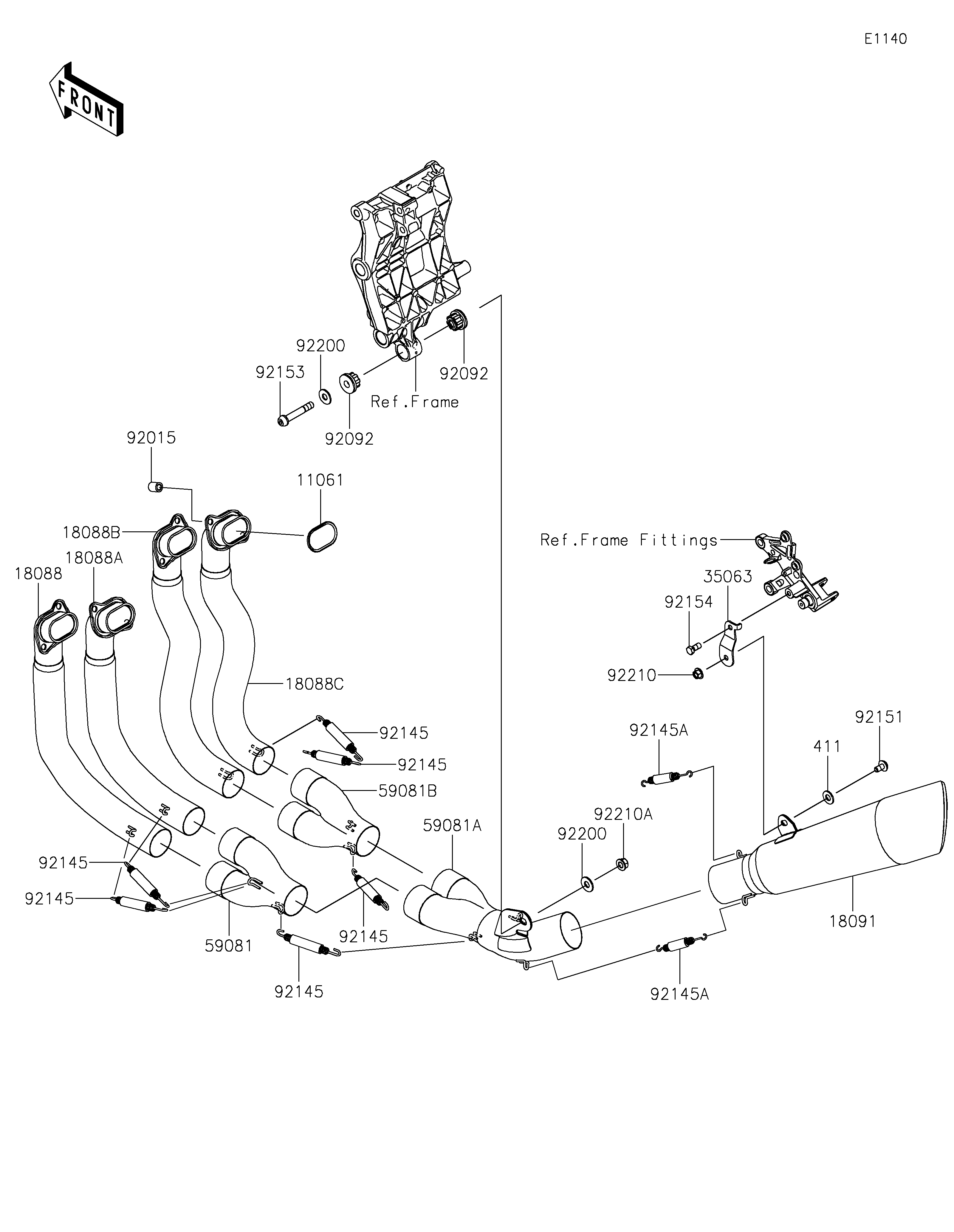

2018 NINJA H2™R - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
18088
18088A
18088B
18088C
18091
35063
59081
59081A
59081B
92015
92092
92092
92145
92145
92145
92145
92145
92145
92145A
92145A
92151
92153
92154
92200
92200
92210
92210A
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11061 11061-0951 4
PIPE-EXHAUST,#1 18088 18088-1284 1
PIPE-EXHAUST,#2 18088A 18088-1285 1
PIPE-EXHAUST,#3 18088B 18088-1286 1
PIPE-EXHAUST,#4 18088C 18088-1287 1
BODY-COMP-MUFFLER 18091 18091-0992 1
STAY,MUFFLER BODY 35063 35063-1278 1
MANIFOLD-EXHAUST,4-2 JOINT,LH 59081 59081-0297 1
MANIFOLD-EXHAUST,2-1 JOINT 59081A 59081-0298 1
MANIFOLD-EXHAUST,4-2 JOINT,RH 59081B 59081-0299 1
NUT 92015 92015-1923 8
BUSHING-RUBBER 92092 92092-1081 2
SPRING 92145 92145-1706 6
SPRING 92145A 92145-1707 2
BOLT,SOCKET,8X16 92151 92151-1752 1
BOLT,SOCKET,10X60 92153 92153-1837 1
BOLT,8X18 92154 92154-1659 1
WASHER,10.5X25X2.0 92200 92200-1377 2
NUT,8MM 92210 92210-0121 1
NUT,LOCK,FLANGED,10MM 92210A 92210-1139 1
WASHER-PLAIN,8MM 411 411S0800 1
