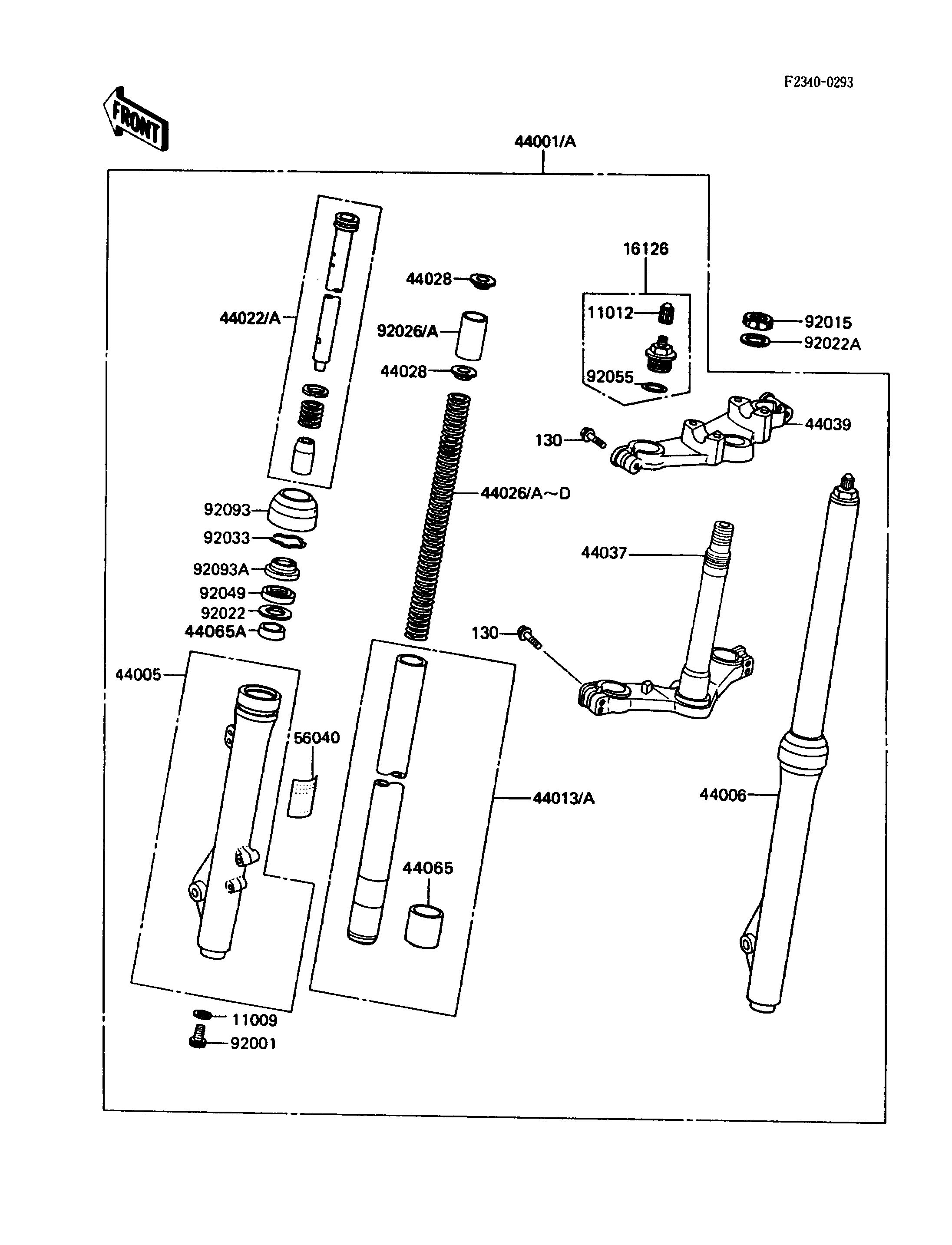

1989 KX80 - Front Fork(L2/N2/)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 44045-057 2
CAP,VALVE AIR 11012 11012-1391 2
VALVE,AIR 16126 16126-1145 2
FORK-FRONT 44001 44001-1703 1
PIPE-LEFT FORK OUTER 44005 44005-1263 1
PIPE-RIGHT FORK OUTER 44006 44006-1260 1
PIPE-FORK INNER 44013 44013-1282 2
CYLINDER-FORK 44022 44022-1232 2
SPRING-FRONT FORK,K=0.27 44026 44026-1403 2
SPRING-FRONT FORK,K=0.28 44026A 44026-1405 2 (OPTION)
SPRING-FRONT FORK,K=0.26 44026B 44026-1406 2 (OPTION)
GUIDE-FORK SPRING 44028 44028-1004 4
HOLDER-FORK UNDER 44037 44037-1225 1
HOLDER-FORK UPPER 44039 44039-1183 1
BUSHING-FRONT FORK,INNER PIPE 44065 44065-1088 2
BUSHING-FRONT FORK 44065A 44065-1089 2
LABEL-WARNING,FRONT FORK 56040 56040-1120 1
BOLT,SOCKET,FORK CYLINDER 92001 44041-040 2
NUT,STEERING STEM,22MM 92015 92015-1653 1
WASHER,FORK 92022 92022-1801 2
WASHER,STEERING STEM 92022A 92022-1873 1
SPACER,FORK,L=13.5 92026 92026-1360 2
RING-SNAP 92033 44044-015 2
SEAL-OIL,FORK 92049 92049-1252 2
RING-O 92055 92055-1318 2
SEAL,FORK 92093 92093-1202 2
SEAL,FORK OUTER TUBE 92093A 92093-1250 2
BOLT-FLANGED,8X35 130 130G0835 6
