Parts Diagrams |

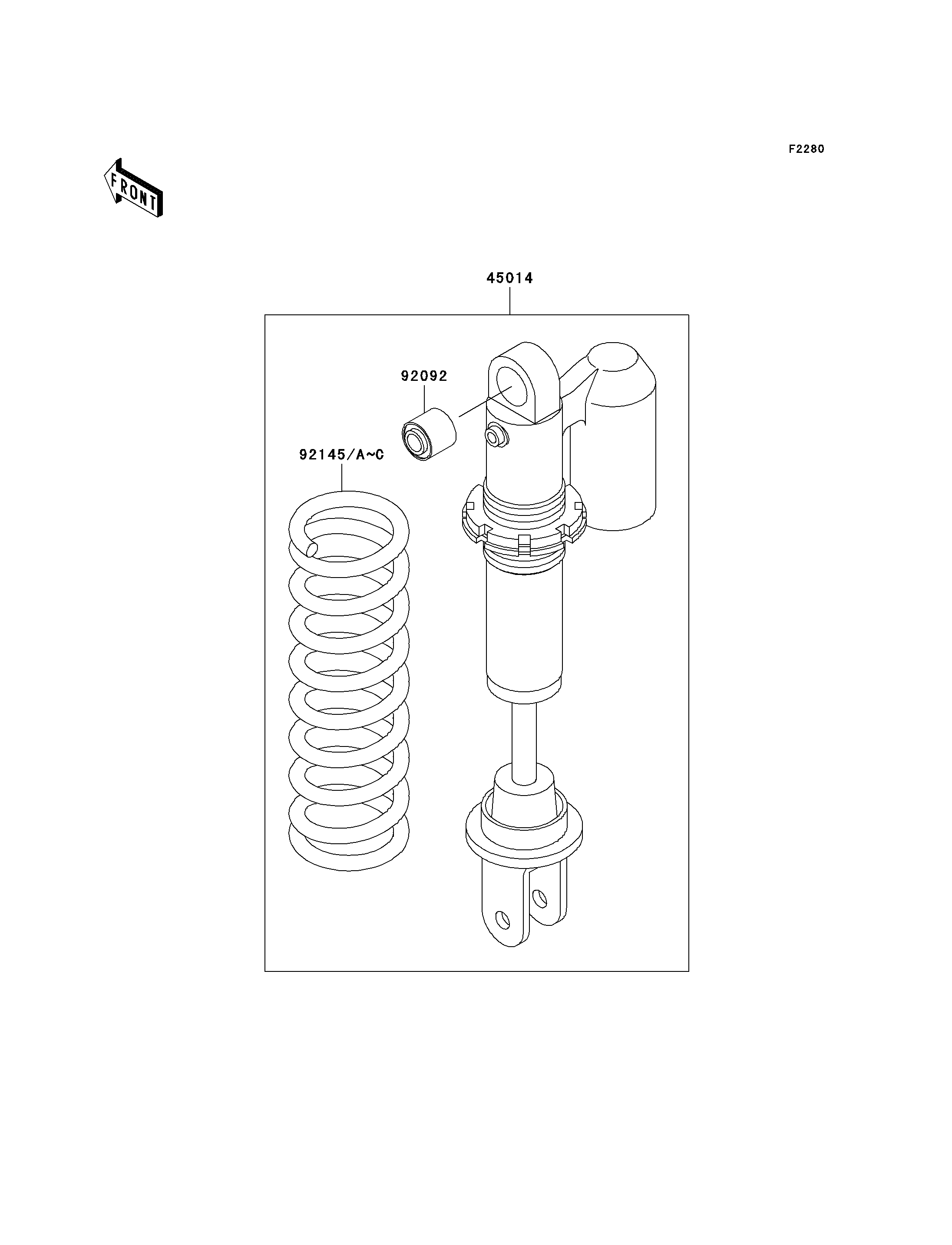

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHOCKABSORBER,I.SILVER | 45014 | 45014-1782-8V | 1 | ||
| BUSHING-RUBBER | 92092 | 92092-1078 | 1 | ||
| SPRING,SHOCKABSORBER,K=4.5,SIL | 92145 | 92145-1474-8V | 1 | (OPTION) | |
| SPRING,SHOCKABSORBER,K=4.7,SIL | 92145A | 92145-1475-8V | 1 | (OPTION) | |
| SPRING,SHOCKABSORBER,K=4.9,SIL | 92145B | 92145-1476-8V | 1 | ||
| SPRING,SHOCKABSORBER,K=5.1,SIL | 92145C | 92145-1477-8V | 1 | (OPTION) |
| SHOCKABSORBER,I.SILVER | |
| REF # | 45014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOCKABSORBER,K=4.5,SIL | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPRING,SHOCKABSORBER,K=4.7,SIL | |
| REF # | 92145A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPRING,SHOCKABSORBER,K=4.9,SIL | |
| REF # | 92145B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOCKABSORBER,K=5.1,SIL | |
| REF # | 92145C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
