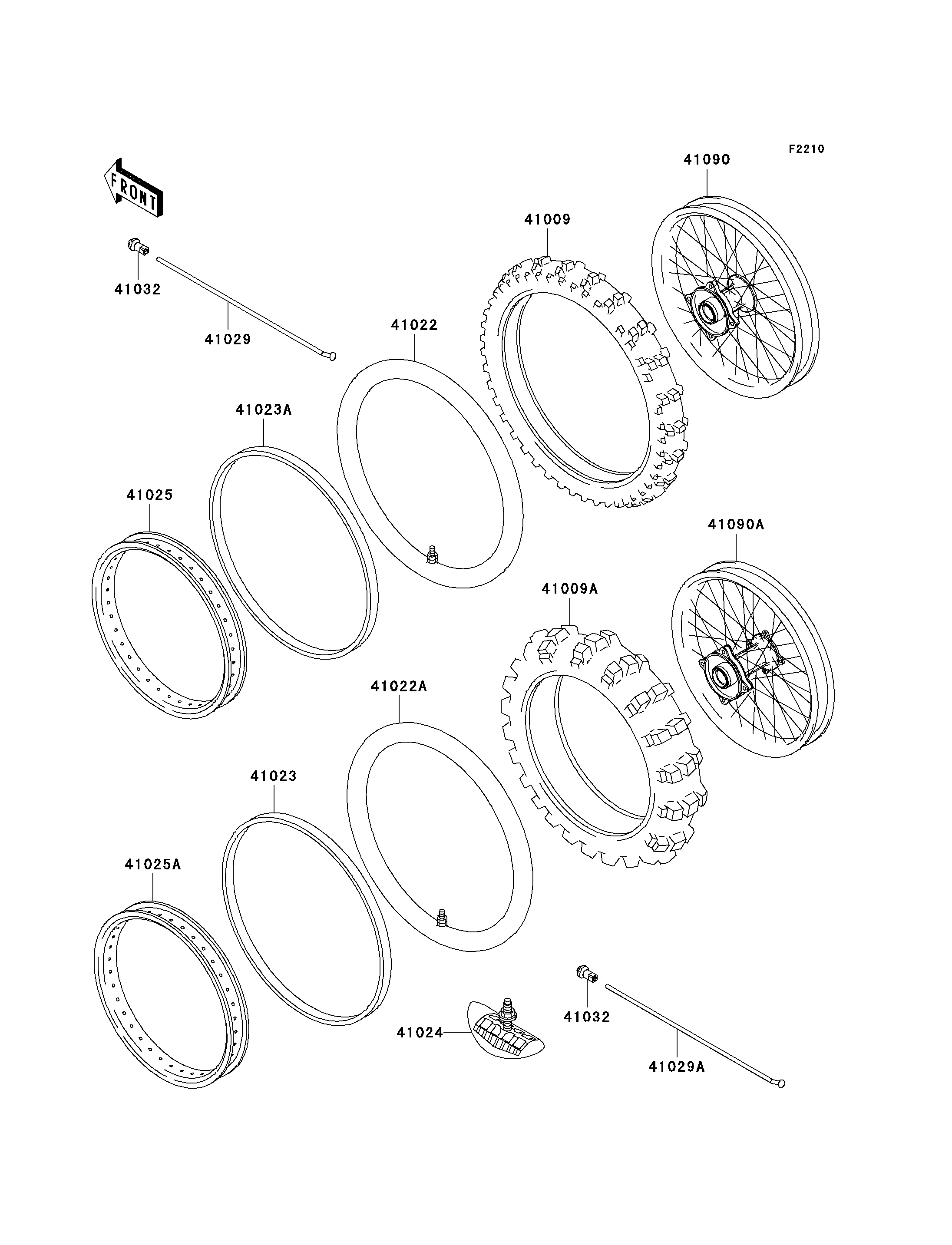

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE,FR,60/100-14 30M,D755F(D) | 41009 | 41009-1258 | 1 | ||
| TIRE,RR,80/100-12 41M,D755(D) | 41009A | 41009-1259 | 1 | ||
| TUBE-TIRE,60/100-14(D) | 41022 | 41022-1114 | 1 | ||
| TUBE-TIRE,80/100-12(D) | 41022A | 41022-1115 | 1 | ||
| BAND-RIM,80/100-12(D) | 41023 | 41023-1066 | 1 | ||
| BAND-RIM,80/100-14(D) | 41023A | 41023-1068 | 1 | ||
| STOPPER-RIM,1.60-M(DUNLOP) | 41024 | 41024-010 | 1 | ||
| RIM,FR,1.40X14 | 41025 | 41025-1388 | 1 | ||
| RIM,RR,1.60X12 | 41025A | 41025-1389 | 1 | ||
| SPOKE-INNER,FR,150MMX159D | 41029 | 41029-1302 | 28 | ||
| SPOKE-INNER,RR,125.5MMX167D | 41029A | 41029-1303 | 28 | ||
| NIPPLE-SPOKE | 41032 | 41032-1055 | 56 | ||
| WHEEL-SUB ASSY,FR | 41090 | 41090-1124 | 1 | (OPTION) | |
| WHEEL-SUB ASSY,RR | 41090A | 41090-1125 | 1 | (OPTION) |
| TIRE,FR,60/100-14 30M,D755F(D) | |
| REF # | 41009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE,RR,80/100-12 41M,D755(D) | |
| REF # | 41009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,60/100-14(D) | |
| REF # | 41022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,80/100-12(D) | |
| REF # | 41022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM,80/100-12(D) | |
| REF # | 41023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM,80/100-14(D) | |
| REF # | 41023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER-RIM,1.60-M(DUNLOP) | |
| REF # | 41024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,FR,1.40X14 | |
| REF # | 41025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,RR,1.60X12 | |
| REF # | 41025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,FR,150MMX159D | |
| REF # | 41029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 28 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,RR,125.5MMX167D | |
| REF # | 41029A |
|---|---|
| PART NUMBER | |
| QUANTITY | 28 |
| DESTINATION | |
| REMARKS | |
| NIPPLE-SPOKE | |
| REF # | 41032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 56 |
| DESTINATION | |
| REMARKS | |
| WHEEL-SUB ASSY,FR | |
| REF # | 41090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| WHEEL-SUB ASSY,RR | |
| REF # | 41090A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
