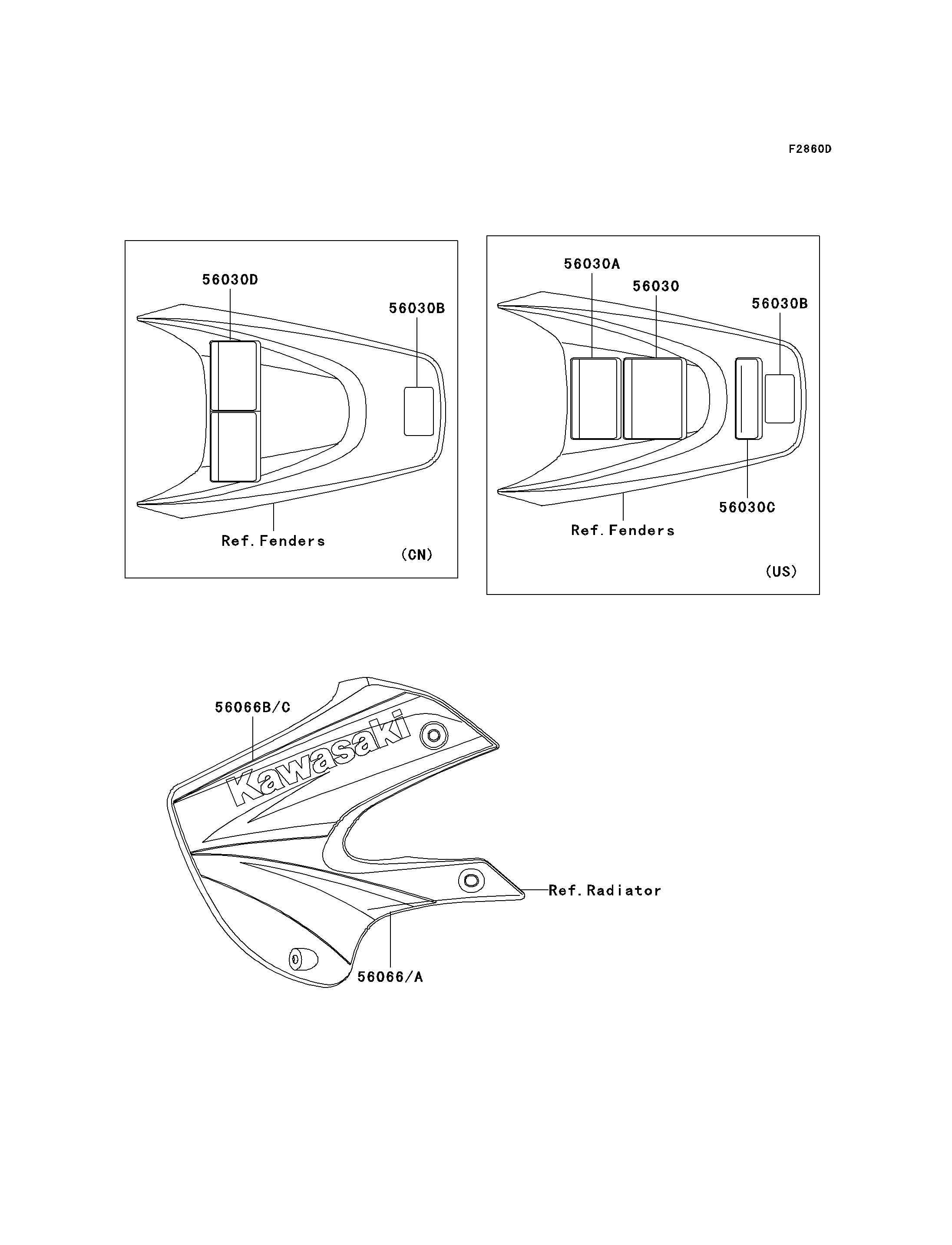

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,32:1 | 56030B | 56030-1230 | 1 | ||
| PATTERN,SHROUD,LWR,LH | 56066 | 56066-0299 | 1 | ||
| PATTERN,SHROUD,LWR,RH | 56066A | 56066-0321 | 1 | ||
| PATTERN,SHROUD,UPP,LH | 56066B | 56066-0338 | 1 | ||
| PATTERN,SHROUD,UPP,RH | 56066C | 56066-0339 | 1 | ||
| LABEL,IMPORTANT NOTICE | 56030 | 56030-1228 | 1 | US | |
| LABEL,DISCLAIMER | 56030A | 56030-1229 | 1 | US | |
| LABEL,NOISE EMISSION | 56030C | 56030-1231 | 1 | US | |
| LABEL,DISCLAIMER | 56030D | 56030-1233 | 1 | CN |
