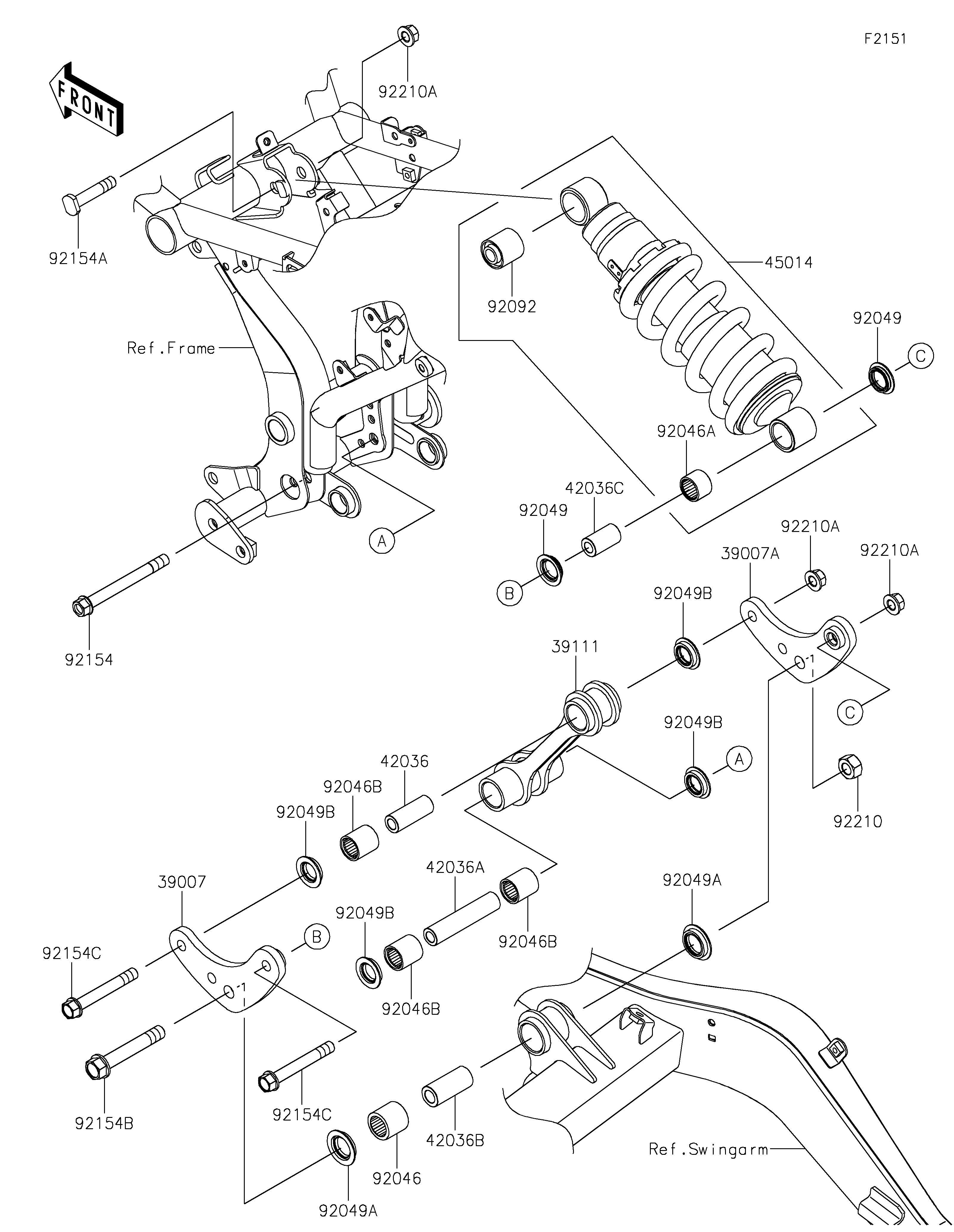

2022 Z650RS ABS - Suspension/Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
39007
39007A
39111
42036
42036A
42036B
42036C
45014
92046
92046A
92046B
92046B
92046B
92049
92049
92049A
92049A
92049B
92049B
92049B
92049B
92092
92154
92154A
92154B
92154C
92154C
92210
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,LH 39007 39007-0401 1
ARM-SUSP,RH 39007A 39007-0402 1
ROD-TIE 39111 39111-0343 1
SLEEVE,10.1X17X44.5 42036 42036-0718 1
SLEEVE,10.1X17X79.8 42036A 42036-0787 1
SLEEVE,12.1X20X44.5 42036B 42036-0788 1
SLEEVE,10.1X18X32 42036C 42036-1344 1
SHOCKABSORBER,P.SILVER 45014 45014-0565-458 1
BEARING-NEEDLE,7E-HVS20X27X25 92046 92046-1236 1
BEARING-NEEDLE,SFYZM182417 92046A 92046-1272 1
BEARING-NEEDLE,SFYZM172425 92046B 92046-1273 3
SEAL-OIL 92049 92049-0133 2
SEAL-OIL,ARM 92049A 92049-1109 2
SEAL-OIL,MHA17245.7F 92049B 92049-1223 4
BUSHING-RUBBER 92092 92092-1058 1
BOLT,FLANGED,10X100 92154 92154-1257 1
BOLT,10X50 92154A 92154-2165 1
BOLT,FLANGED,12X75 92154B 92154-2166 1
BOLT,FLANGED,10X75 92154C 92154-2226 2
NUT,LOCK,12MM 92210 92210-0274 1
NUT,LOCK,FLANGED,10MM 92210A 92210-1139 3
