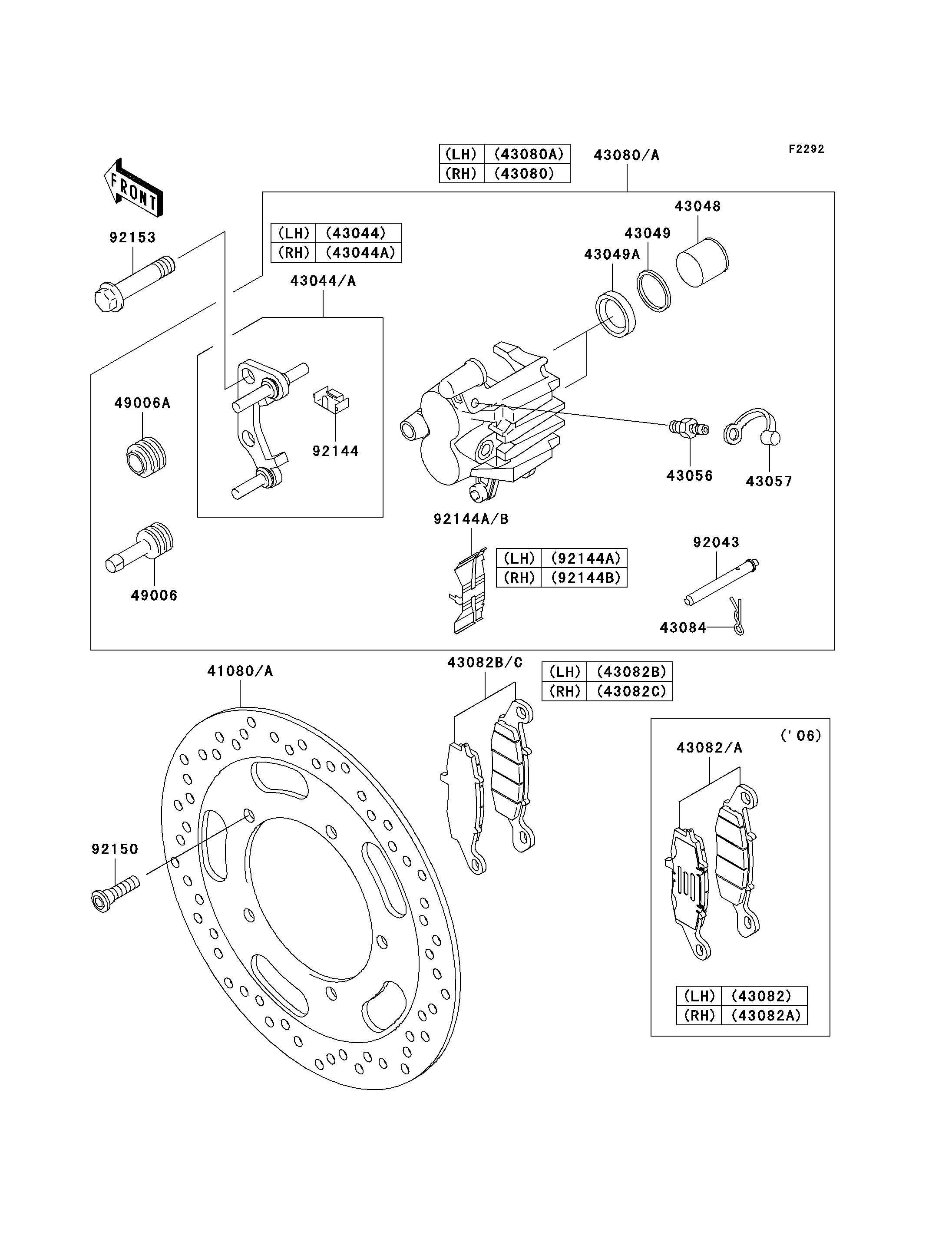

2008 Vulcan® 1600 Nomad™ - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
41080
43044
43044A
43048
43049
43049A
43056
43057
43080
43080A
43082B
43082C
43084
49006
49006A
92043
92144
92144A
92144B
92150
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR,SILVER 41080 41080-0095-CM 2
HOLDER-COMP-CALIPER,FR,LH 43044 43044-1115 1
HOLDER-COMP-CALIPER,FR,RH 43044A 43044-1116 1
PISTON-CALIPER 43048 43048-1073 4
PACKING 43049 43049-1068 4
PACKING,PISTON SEAL 43049A 43049-1092 4
BREATHER-BRAKE 43056 43056-1054 2
CAP-BREATHER 43057 43057-003 2
CALIPER-SUB-ASSY,FR,RH,SILVER 43080 43080-5015-GN 1
CALIPER-SUB-ASSY,FR,LH,SILVER 43080A 43080-5017-GN 1
PAD-ASSY-BRAKE,LH 43082B 43082-0061 1
PAD-ASSY-BRAKE,RH 43082C 43082-0062 1
CLAMP,PAD 43084 43084-003 2
BOOT,CALIPER 49006 49006-1054 2
BOOT,CALIPER 49006A 49006-1095 2
PIN,PAD 92043 92043-1489 2
SPRING,STOPPER 92144 92144-1831 2
SPRING,PAD,LH 92144A 92144-1832 1
SPRING,PAD,RH 92144B 92144-1844 1
BOLT,SOCKET,8X30 92150 92150-1771 10
BOLT,FLANGED,10X47 92153 92153-0740 4
