Parts Diagrams |

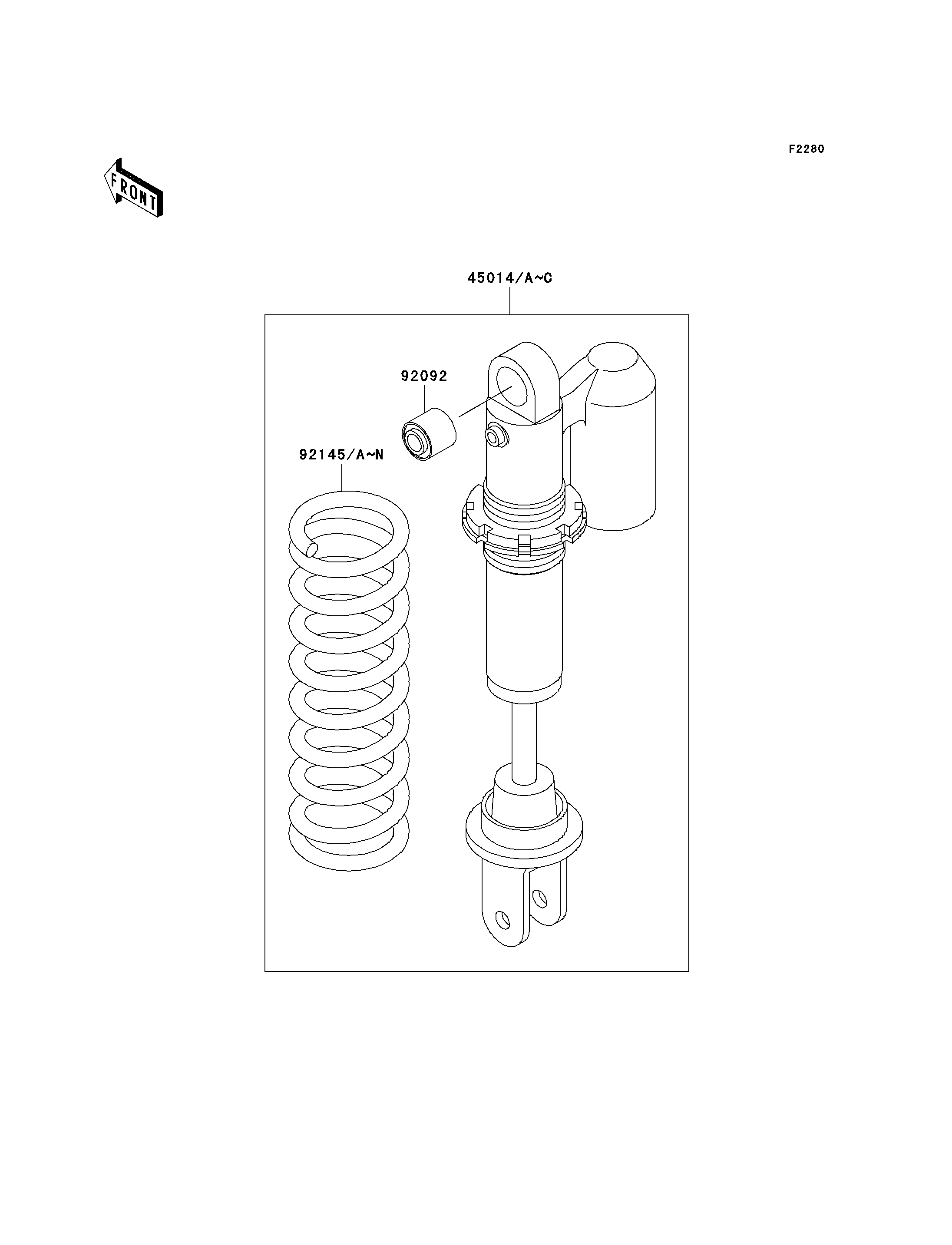

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHOCKABSORBER,BLACK | 45014C | 45014-1782-10 | 1 | ||
| BUSHING-RUBBER | 92092 | 92092-1078 | 1 | ||
| SPRING,SHOCKABSORBER,K=4.5,BLK | 92145H | 92145-1474-10 | 1 | (OPTION) | |
| SPRING,SHOCKABSORBER,K=4.7,BLK | 92145J | 92145-1475-10 | 1 | (OPTION) | |
| SPRING,SHOCKABSORBER,K=4.9,BLK | 92145L | 92145-1476-10 | 1 | ||
| SPRING,SHOCKABSORBER,K=5.1,BLK | 92145N | 92145-1477-10 | 1 | (OPTION) |
| SHOCKABSORBER,BLACK | |
| REF # | 45014C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOCKABSORBER,K=4.5,BLK | |
| REF # | 92145H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPRING,SHOCKABSORBER,K=4.7,BLK | |
| REF # | 92145J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPRING,SHOCKABSORBER,K=4.9,BLK | |
| REF # | 92145L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOCKABSORBER,K=5.1,BLK | |
| REF # | 92145N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
