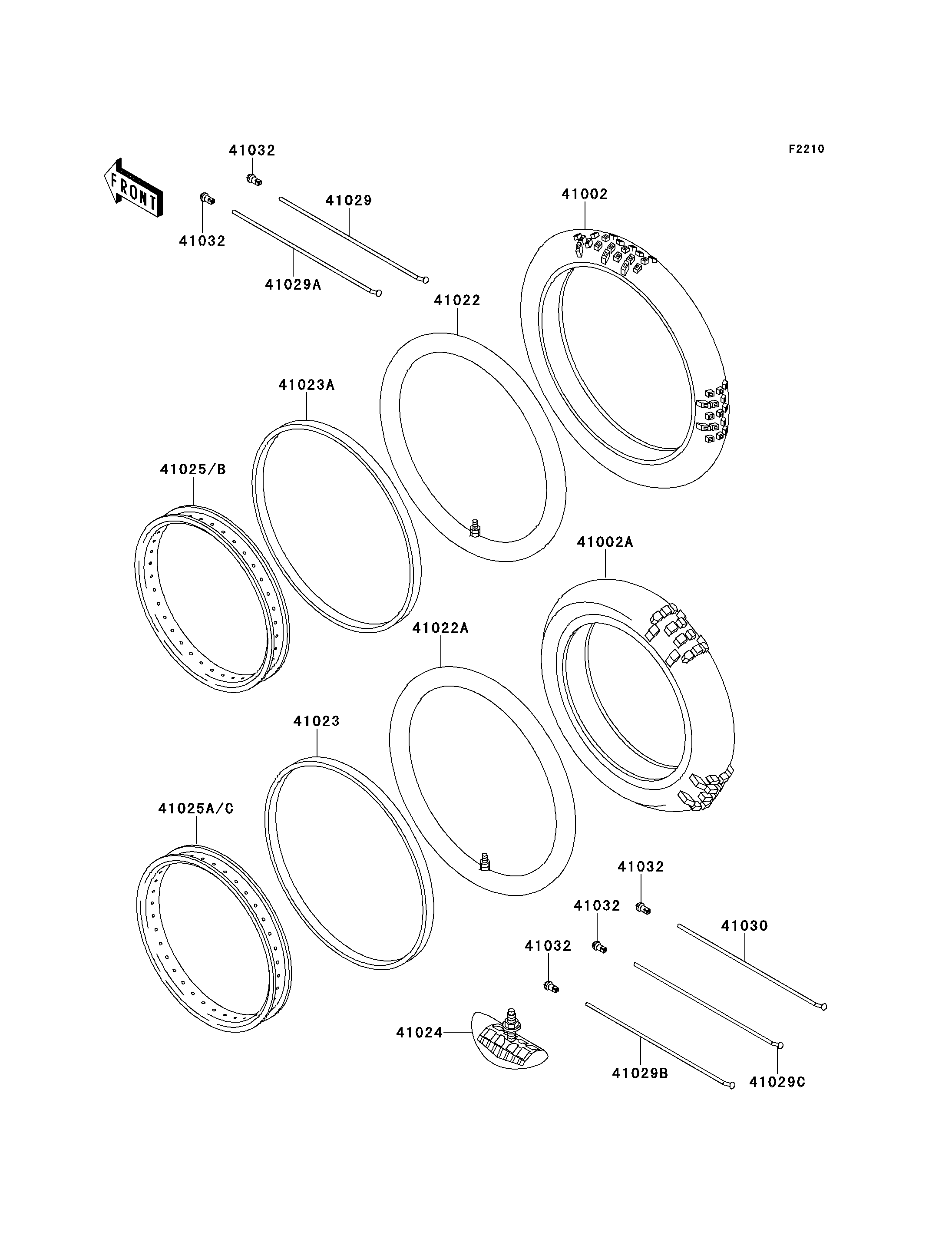

1992 KX60 - Tire

DOWNLOAD PDF
SELECT A NEW PART
41002
41002A
41022
41022A
41023
41023A
41024
41025
41025A
41025B
41025C
41029
41029A
41029B
41029C
41030
41032
41032
41032
41032
41032
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,60/100-14 30M,K195(D) 41002 41002-1555 1
TIRE,RR,80/100-12 41M,K195(D) 41002A 41002-1556 1
TUBE-TIRE,FR 41022 41022-1114 1
TUBE-TIRE,RR 41022A 41022-1115 1
BAND-RIM,80/100-12(D) 41023 41023-1066 1
BAND-RIM,80/100-14(D) 41023A 41023-1068 1
STOPPER-RIM,1.60-M(DUNLOP) 41024 41024-010 1
RIM,FR,1.40X14 41025 41025-1070 1
RIM,RR,1.60X12 41025A 41025-1071 1
RIM,FR,1.40X14 UT-02 41025B 41025-1082 1 (OPTION)
RIM,RR,1.60X12 UT-03 41025C 41025-1083 1 (OPTION)
SPOKE-INNER,FR,144MMX118D 41029 41029-1067 16
SPOKE-INNER,FR,134.5MMX102D 41029A 41029-1068 16
SPOKE-INNER,RR,129MMX124D 41029B 41029-1069 8
SPOKE-INNER,RR,115MMX114D 41029C 41029-1070 16
SPOKE-OUTER,RR,126MMX124D 41030 41030-1060 8
NIPPLE-SPOKE 41032 41032-1055 64
