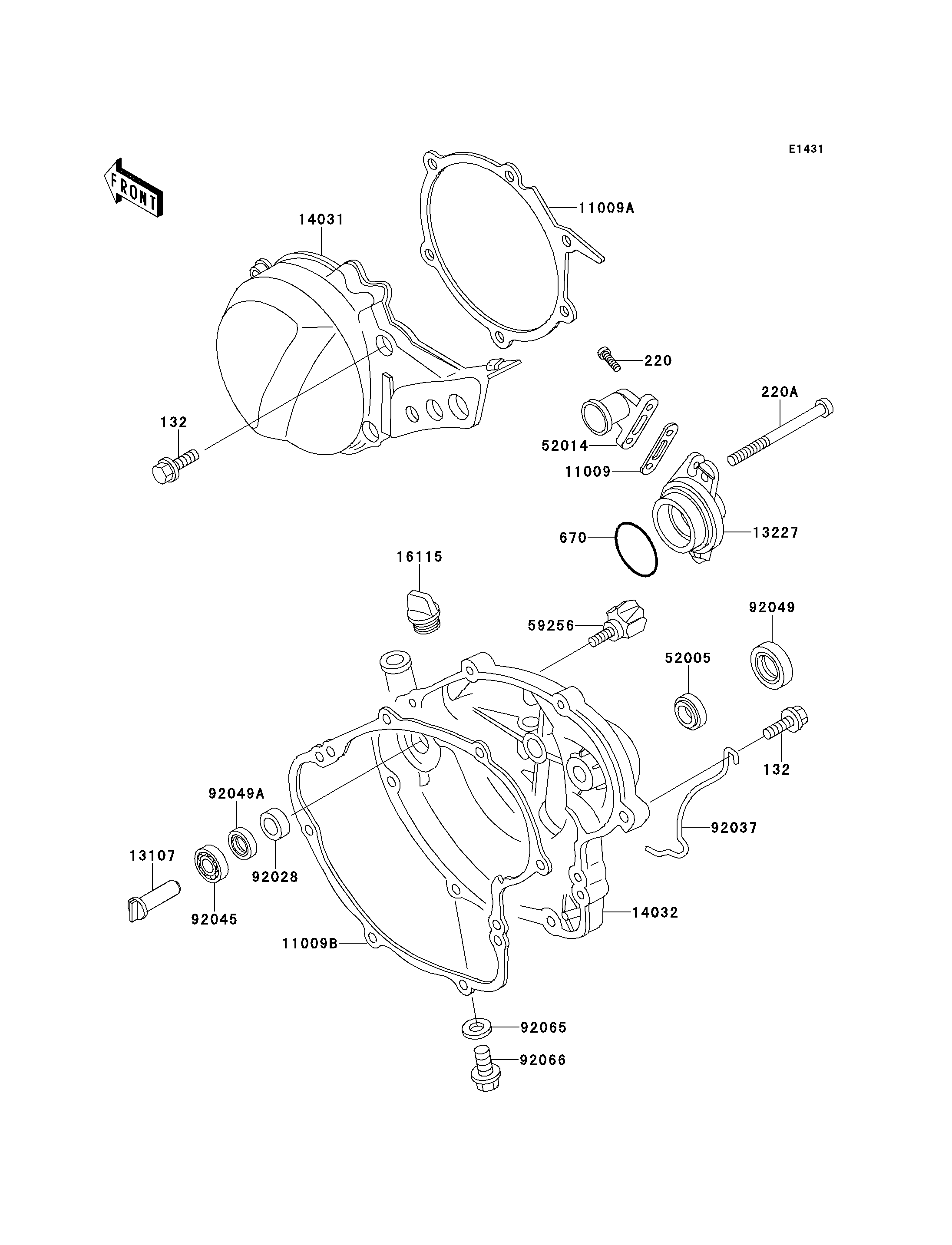

1992 KX60 - Engine Cover

DOWNLOAD PDF
SELECT A NEW PART
132
132
220
220A
670
11009
11009A
11009B
13107
13227
14031
14032
16115
52005
52014
59256
92028
92037
92045
92049
92049A
92065
92066
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0625 12
SCREW-PAN-CROS 220 220B0520 2
SCREW-PAN-CROS,6X75 220A 220B0675 2
O RING,39MM 670 670B3039 1
GASKET,ELBOW 11009 11009-1952 1
GASKET,GENERATOR COVER 11009A 11009-1974 1
GASKET,CLUTCH COVER 11009B 11009-1976 1
SHAFT,WATER PUMP 13107 13107-1123 1
HOUSING,WATER PUMP 13227 13227-1069 1
COVER-GENERATOR 14031 14031-1215 1
COVER-CLUTCH 14032 14032-1246 1
CAP-OIL FILLER 16115 16115-018 1
GAUGE,OIL LEVEL 52005 52005-1055 1
ELBOW 52014 52014-1067 1
IMPELLER,WATER PUMP 59256 59256-1052 1
BUSHING 92028 92028-1317 1
CLAMP,TUBE 92037 92037-1236 1
BEARING-BALL 92045 92045-1212 1
SEAL-OIL,SB16244 92049 92049-002 1
SEAL-OIL,MHSD8X18X10J-1 92049A 92049-1366 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
PLUG,DRAIN 92066 92066-1241 1
