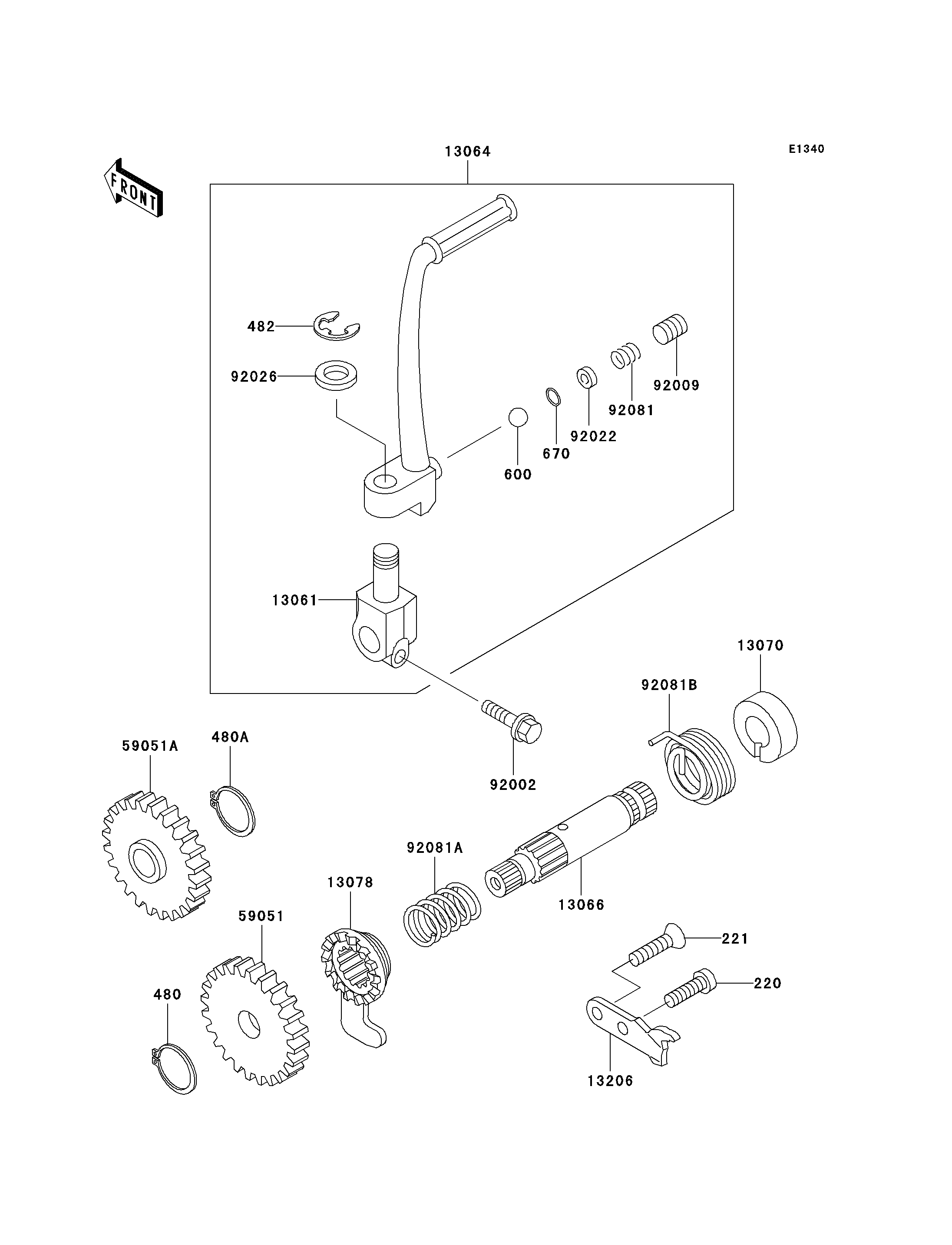

1999 KX60 - Kickstarter Mechanism

DOWNLOAD PDF
SELECT A NEW PART
220
221
480
480A
482
600
670
13061
13064
13066
13070
13078
13206
59051
59051A
92002
92009
92022
92026
92081
92081A
92081B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,6X16 220 220B0616 1
SCREW-CSK-CROS,6X18 221 221B0618 1
CIRCLIP-TYPE-C,12MM 480 480J1200 1
CIRCLIP-TYPE-C,15MM 480A 480J1500 1
CIRCLIP-TYPE-E,8MM 482 482K8000 1
BALL-STEEL,1/4" 600 600A0800 1
O RING,4MM 670 670B1504 1
BOSS,KICK LEVER 13061 13061-1301 1
LEVER-ASSY-KICK,PEDAL 13064 13064-1154 1
SHAFT-KICK,STARTER 13066 13066-1093 1
GUIDE,KICK SPRING 13070 13070-1034 1
RATCHET 13078 13078-1004 1
GUIDE-KICK 13206 13206-1065 1
GEAR-SPUR,32T 59051 59051-1026 1
GEAR-SPUR,30T 59051A 59051-1027 1
BOLT,6X20 92002 92002-1237 1
SCREW,SOCKET,8X8 92009 92009-1312 1
WASHER 92022 92022-1481 1
SPACER,12.2X20X1.6 92026 92026-1527 1
SPRING,KICK PEDAL 92081 92081-020 1
SPRING,RATCHET 92081A 92081-122 1
SPRING,RETURN 92081B 92081-1434 1
