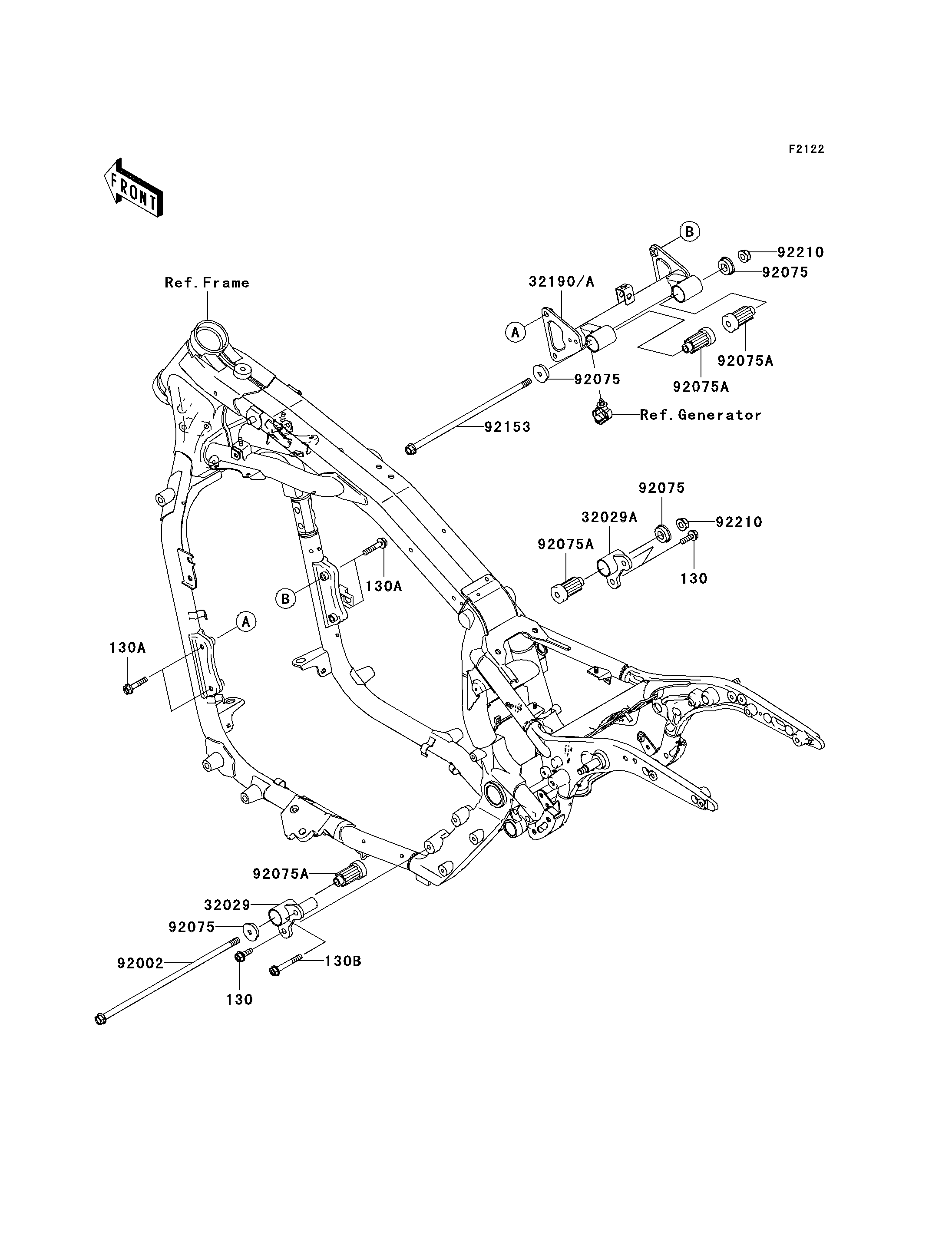

2008 Vulcan® 1600 Nomad™ - Engine Mount
130
130
130A
130A
130B
32029
32029A
32190A
92002
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92153
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X25 | 130 | 130J0825 | 3 | ||
| BOLT-FLANGED,8X40 | 130A | 130J0840 | 4 | ||
| BOLT-FLANGED,8X60 | 130B | 130J0860 | 1 | ||
| BRACKET-ENGINE,RR,LH | 32029 | 32029-1986 | 1 | ||
| BRACKET-ENGINE,RR,RH | 32029A | 32029-1987 | 1 | ||
| BRACKET-ENGINE,FR | 32190A | 32190-0336 | 1 | ||
| BOLT,FLANGED,10X330 | 92002 | 92002-1540 | 1 | ||
| DAMPER,ENGINE MOUNT | 92075 | 92075-1738 | 4 | ||
| DAMPER,ENGINE MOUNT,MAIN | 92075A | 92075-1739 | 4 | ||
| BOLT,FLANGED,10X285 | 92153 | 92153-1909 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1081 | 2 |
