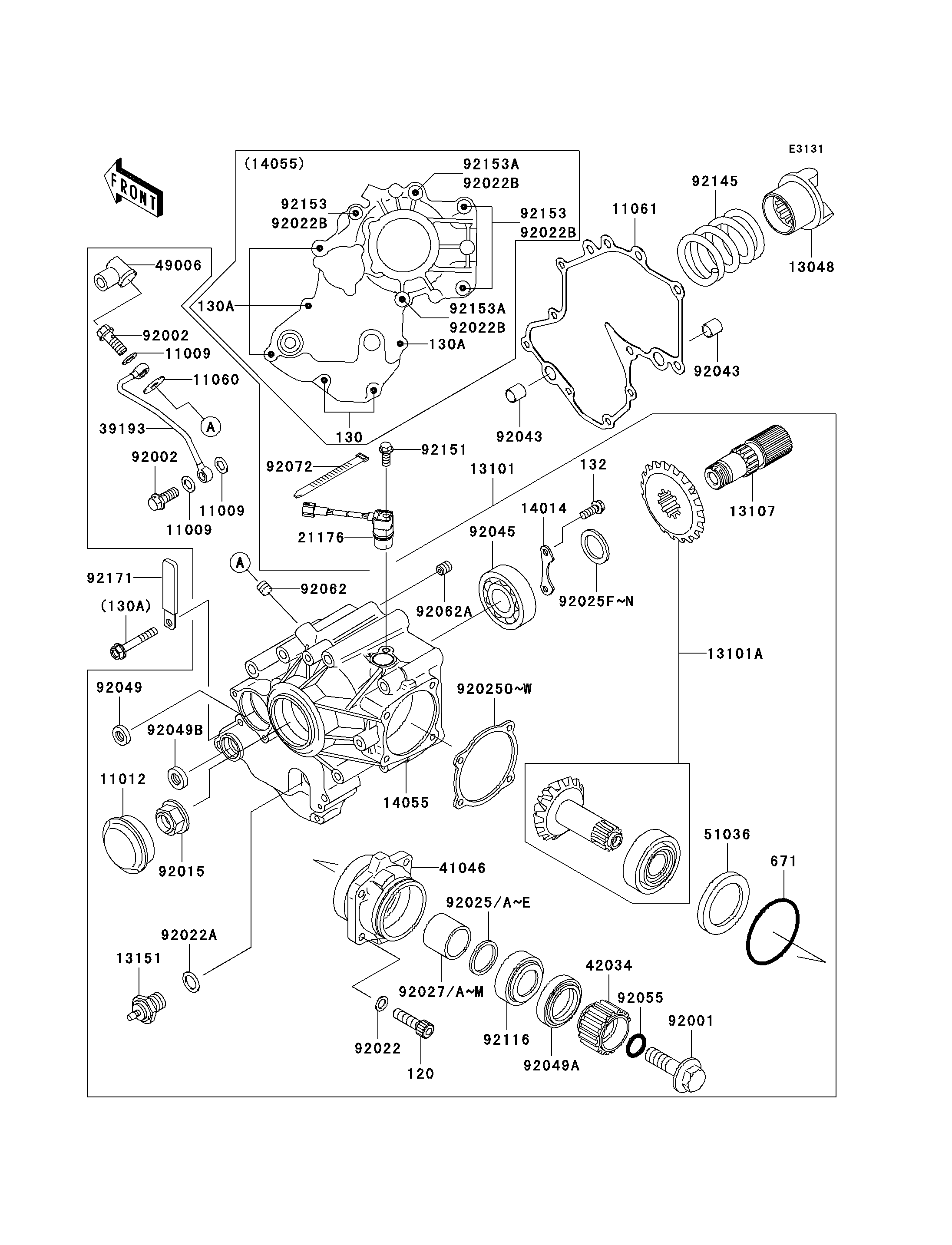

2008 Vulcan® 1600 Nomad™ - Front Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009
11009
11009
11009
11009
11009
11009
11012
11012
11012
11060
11060
11060
11061
11061
11061
13048
13048
13048
13101
13101
13101
13101A
13101A
13101A
13107
13107
13107
13151
13151
13151
14014
14014
14014
14055
14055
14055
21176
21176
21176
39193
39193
39193
41046
41046
41046
42034
42034
42034
49006
49006
49006
51036
51036
51036
92001
92001
92001
92002
92002
92002
92002
92002
92002
92015
92015
92015
92022
92022
92022
92022A
92022A
92022A
92022B
92022B
92022B
92022B
92022B
92022B
92022B
92022B
92022B
92022B
92022B
92022B
92025
92025
92025
92025A
92025A
92025A
92025B
92025B
92025B
92025C
92025C
92025C
92025D
92025D
92025D
92025E
92025E
92025E
92025F
92025F
92025F
92025G
92025G
92025G
92025H
92025H
92025H
92025I
92025I
92025I
92025J
92025J
92025J
92025K
92025K
92025K
92025L
92025L
92025L
92025M
92025M
92025M
92025N
92025N
92025N
92025O
92025O
92025O
92025P
92025P
92025P
120
120
120
130
130
130
130A
130A
130A
130A
130A
130A
132
132
132
92025Q
92025Q
92025Q
92025R
92025R
92025R
92025S
92025S
92025S
92025T
92025T
92025T
92025U
92025U
92025U
92025V
92025V
92025V
92025W
92025W
92025W
92027
92027
92027
92027A
92027A
92027A
92027B
92027B
92027B
92027C
92027C
92027C
92027D
92027D
92027D
92027E
92027E
92027E
92027F
92027F
92027F
92027G
92027G
92027G
92027H
92027H
92027H
92027I
92027I
92027I
92027J
92027J
92027J
92027K
92027K
92027K
92027L
92027L
92027L
92027M
92027M
92027M
92043
92043
92043
92043
92043
92043
92045
92045
92045
92049
92049
92049
92049A
92049A
92049A
92049B
92049B
92049B
92055
92055
92055
92062
92062
92062
92062A
92062A
92062A
92072
92072
92072
92116
92116
92116
92145
92145
92145
92151
92151
92151
92153
92153
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153A
92153A
92171
92171
92171
671
671
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,8.2X14X1.0 11009 11009-1344 3
CAP 11012 11012-1071 1
GASKET,OIL PIPE,8.2X25X1.0 11060 11060-1872 1
GASKET,BEVEL GEAR CASE 11061 11061-0046 1
CAM-DAMPER 13048 13048-1085 1
GEAR-ASSY 13101 13101-0020 1
GEAR-ASSY,BEVEL,FR 13101A 13101-5088 1
SHAFT,BEVEL,FR 13107 13107-1525 1
SWITCH-COMP,NEUTRAL 13151 13151-1010 1
PLATE-POSITION 14014 14014-1136 1
CASE-GEAR,FRONT BEVEL 14055 14055-0006 1
SENSOR,SPEED 21176 21176-0037 1
PIPE-OIL 39193 39193-1026 1
HOUSING-BEARING 41046 41046-1099 1
COUPLING,FR DRIVEN 42034 42034-1091 1
BOOT,DUST 49006 49006-1040 1
CUP 51036 51036-1002 1
BOLT,FLANGED,12X42 92001 92001-1169 1
BOLT,8X20 92002 92002-1429 2
NUT,24MM 92015 92015-1554 1
WASHER,8.5X13X1 92022 92022-1028 4
WASHER,12X18X1.0 92022A 92022-1211 1
WASHER,8.5X16X1.2 92022B 92022-1582 5
SHIM,25.2X29.8X1.70 92025 92025-1072 AR
SHIM,25.2X29.8X1.72 92025A 92025-1073 AR
SHIM,25.2X29.8X1.74 92025B 92025-1074 AR
SHIM,25.2X29.8X1.76 92025C 92025-1075 AR
SHIM,25.2X29.8X1.78 92025D 92025-1076 AR
SHIM,25.2X29.8X1.80 92025E 92025-1077 AR
SHIM,25.3X36X0.15 92025F 92025-1688 AR
SHIM,25.3X36X0.50 92025G 92025-1689 AR
SHIM,25.3X36X0.60 92025H 92025-1690 AR
SHIM,25.3X36X0.70 92025I 92025-1691 AR
SHIM,25.3X36X0.80 92025J 92025-1692 AR
SHIM,25.3X36X0.90 92025K 92025-1693 AR
SHIM,25.3X36X1.00 92025L 92025-1694 AR
SHIM,25.3X36X1.10 92025M 92025-1695 AR
SHIM,25.3X36X1.20 92025N 92025-1696 AR
SHIM,T=0.15 92025O 92025-1818 AR
SHIM,T=0.50 92025P 92025-1819 AR
BOLT-SOCKET,8X30 120 120S0830 4
BOLT-FLANGED,6X30 130 130S0630 2
BOLT-FLANGED,6X40 130A 130S0640 4
BOLT-FLANGED-SMALL,6X16 132 132G0616 2
SHIM,T=0.60 92025Q 92025-1820 AR
SHIM,T=0.70 92025R 92025-1821 AR
SHIM,T=0.80 92025S 92025-1822 AR
SHIM,T=0.90 92025T 92025-1823 AR
SHIM,T=1.00 92025U 92025-1824 AR
SHIM,T=1.20 92025V 92025-1825 AR
SHIM,T=0.10 92025W 92025-1826 AR
COLLAR,25.2X29.8X22.8 92027 92027-1152 AR
COLLAR,25.2X29.8X22.9 92027A 92027-1153 AR
COLLAR,25.2X29.8X23 92027B 92027-1154 AR
COLLAR,25.2X29.8X23.1 92027C 92027-1155 AR
COLLAR,25.2X29.8X23.2 92027D 92027-1156 AR
COLLAR,25.2X29.8X23.3 92027E 92027-1157 AR
COLLAR,25.2X29.8X23.4 92027F 92027-1158 AR
COLLAR,25.2X29.8X23.5 92027G 92027-1159 AR
COLLAR,25.2X29.8X23.6 92027H 92027-1160 AR
COLLAR,25.2X29.8X23.7 92027I 92027-1161 AR
COLLAR,25.2X29.8X23.8 92027J 92027-1162 AR
COLLAR,25.2X29.8X23.9 92027K 92027-1163 AR
COLLAR,25.2X29.8X24 92027L 92027-1164 AR
COLLAR,25.2X29.8X24.1 92027M 92027-1165 AR
PIN,11.5X14X14 92043 92043-1279 2
BEARING-BALL,6305C2 92045 92045-1165 1
SEAL-OIL,SD-8187 92049 92049-1017 1
SEAL-OIL,TC35527 92049A 92049-1038 1
SEAL-OIL,TC13225.5 92049B 92049-1519 1
RING-O,ID=18.64 92055 92055-1044 1
NOZZLE,6X8,GREEN 92062 92062-1078 1
NOZZLE,10X10,SILVER 92062A 92062-1083 1
BAND,L=202 92072 92072-1195 1
BEARING-ROLLER,HI-CAP30205 92116 92116-1062 1
SPRING,CAM DAMPER 92145 92145-1102 1
BOLT,FLANGED,6X14 92151 92151-1755 1
BOLT,8X80 92153 92153-0433 3
BOLT,8X95 92153A 92153-0434 2
CLAMP 92171 92171-0652 1
O RING,65MM 671 671B2565 1
