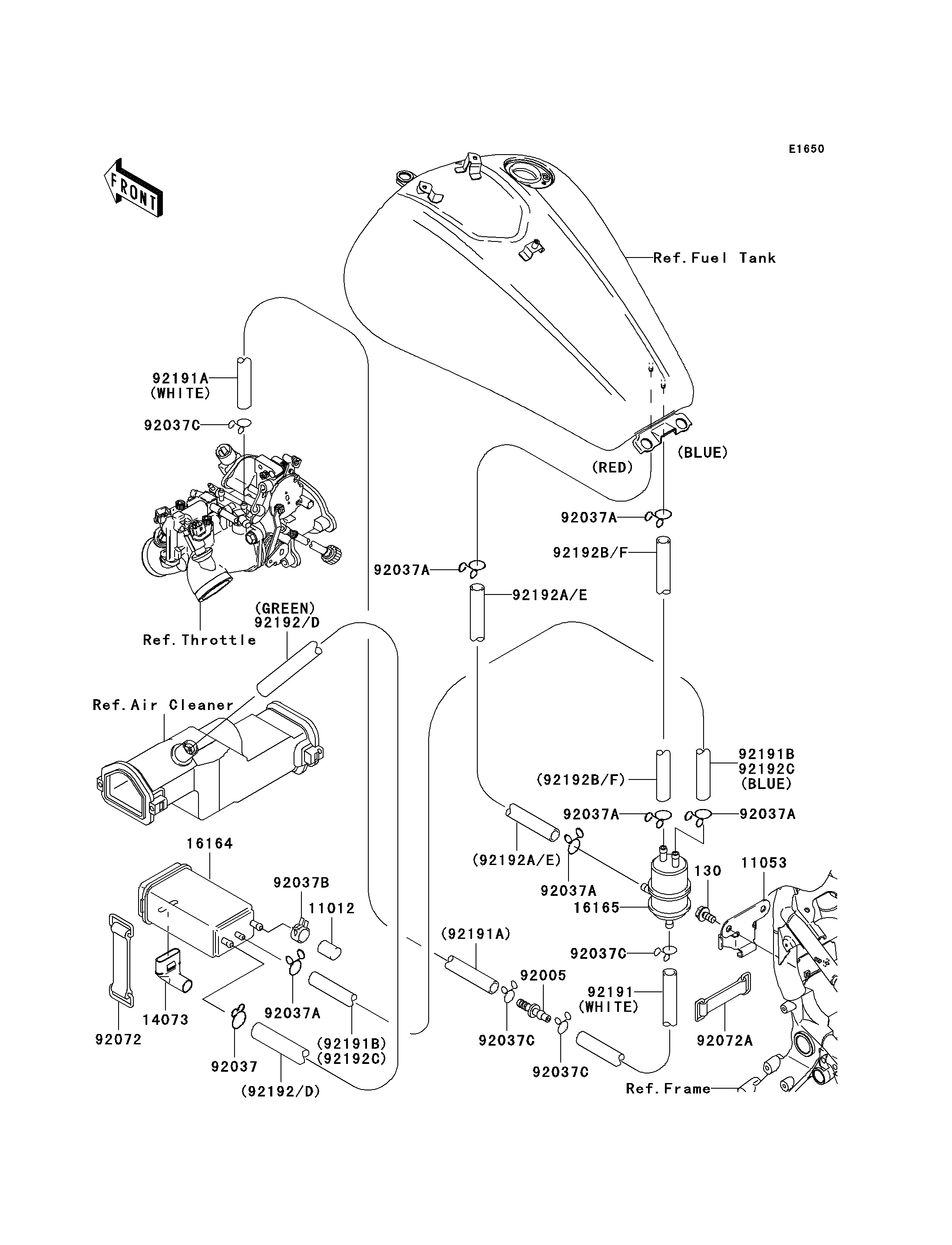

2008 Vulcan® 1600 Nomad™ - Fuel Evaporative System(CA)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,CANISTER | 11012 | 11012-1388 | 1 | CA | |
| BRACKET,EVAPO | 11053 | 11053-0006 | 1 | CA | |
| DUCT,CANISTER | 14073 | 14073-1219 | 1 | CA | |
| CANISTER | 16164 | 16164-1070 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| FITTING | 92005 | 92005-1206 | 1 | CA | |
| CLAMP,HOSE | 92037 | 92037-1104 | 1 | CA | |
| CLAMP,TUBE | 92037A | 92037-147 | 6 | CA | |
| CLAMP,CANISTER | 92037B | 92037-1512 | 1 | CA | |
| CLAMP | 92037C | 92037-1712 | 4 | CA | |
| BAND,L=90 | 92072 | 92072-045 | 1 | CA | |
| BAND,L=50 | 92072A | 92072-1419 | 1 | CA | |
| TUBE,THROTTLE-SEPARATOR,WHITE | 92191 | 92191-1375 | 1 | CA | |
| TUBE,4X9X180,WHITE | 92191A | 92191-1414 | 1 | CA | |
| TUBE,SEPARATOR-CANISTER,BLUE | 92192C | 92192-0546 | 1 | CA | |
| TUBE,CANISTER-FILTER,GREEN | 92192D | 92192-0547 | 1 | CA | |
| TUBE,TANK-SEPARATOR,RED | 92192E | 92192-0548 | 1 | CA | |
| TUBE,TANK-SEPARATOR,BLUE | 92192F | 92192-0549 | 1 | CA | |
| BOLT-FLANGED,6X12 | 130 | 130J0612 | 2 | CA |
| CAP,CANISTER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BRACKET,EVAPO | |
| REF # | 11053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| DUCT,CANISTER | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| SEPARATOR | |
| REF # | 16165 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| FITTING | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,CANISTER | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92037C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=90 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=50 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,THROTTLE-SEPARATOR,WHITE | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,4X9X180,WHITE | |
| REF # | 92191A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEPARATOR-CANISTER,BLUE | |
| REF # | 92192C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,CANISTER-FILTER,GREEN | |
| REF # | 92192D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,TANK-SEPARATOR,RED | |
| REF # | 92192E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,TANK-SEPARATOR,BLUE | |
| REF # | 92192F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BOLT-FLANGED,6X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
