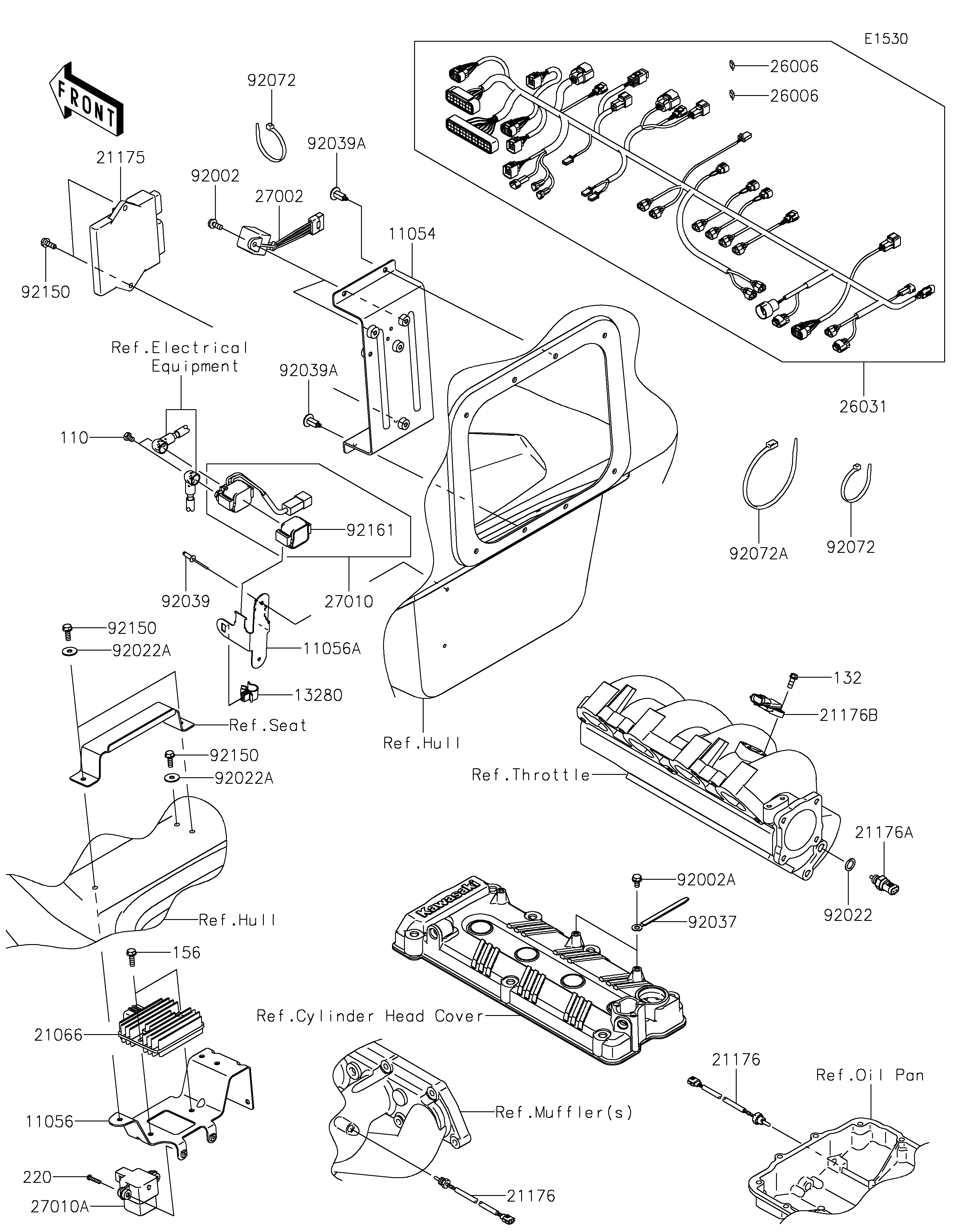

2022 JET SKI® ULTRA® LX - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
11054
11056
11056A
13280
21066
21175
21176
21176
21176A
21176B
26006
26006
26031
27002
27010
27010A
92002
92002A
92022
92022A
92022A
92037
92039
92039A
92039A
92072
92072
92072A
92150
92150
92150
92161
110
132
156
220
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ECU&RELAY 11054 11054-3743 1
BRACKET,REGULATOR&VDS 11056 11056-3702 1
BRACKET,SWITCH 11056A 11056-3855 1
HOLDER 13280 13280-0789 1
REGULATOR-VOLTAGE 21066 21066-3718 1
CONTROL UNIT-ELECTRONIC 21175 21175-0871 1
SENSOR,TEMP 21176 21176-0741 2
SENSOR,AIR TEMPERATURE 21176A 21176-1086 1
SENSOR,PRESSURE 21176B 21176-3765 1
FUSE,MINI BLADE,20A,YELLOW 26006 26006-3704 2
HARNESS,MAIN 26031 26031-2395 1
RELAY-ASSY 27002 27002-3703 2
SWITCH 27010 27010-0710 1
SWITCH,VDS 27010A 27010-3785 1
BOLT,6X16 92002 92002-3728 2
BOLT,6X12 92002A 92002-3763 2
WASHER,12X18X1.0 92022 92022-1211 1
WASHER,6.5X20X1.5 92022A 92022-3710 3
CLAMP,L=100 92037 92037-3736 2
RIVET 92039 92039-3714 2
RIVET 92039A 92039-3788 4
BAND,L=188.85 92072 92072-0105 2
BAND,L=372.24 92072A 92072-3883 1
BOLT,6X18 92150 92150-3729 5
DAMPER,SWITCH 92161 92161-1625 1
BOLT,6X8 110 110R0608 2
BOLT-FLANGED-SMALL,6X16 132 132BD0616 2
BOLT-WP,6X20 156 156R0620 2
SCREW-PAN-CROS,4X20 220 220R0420 2
