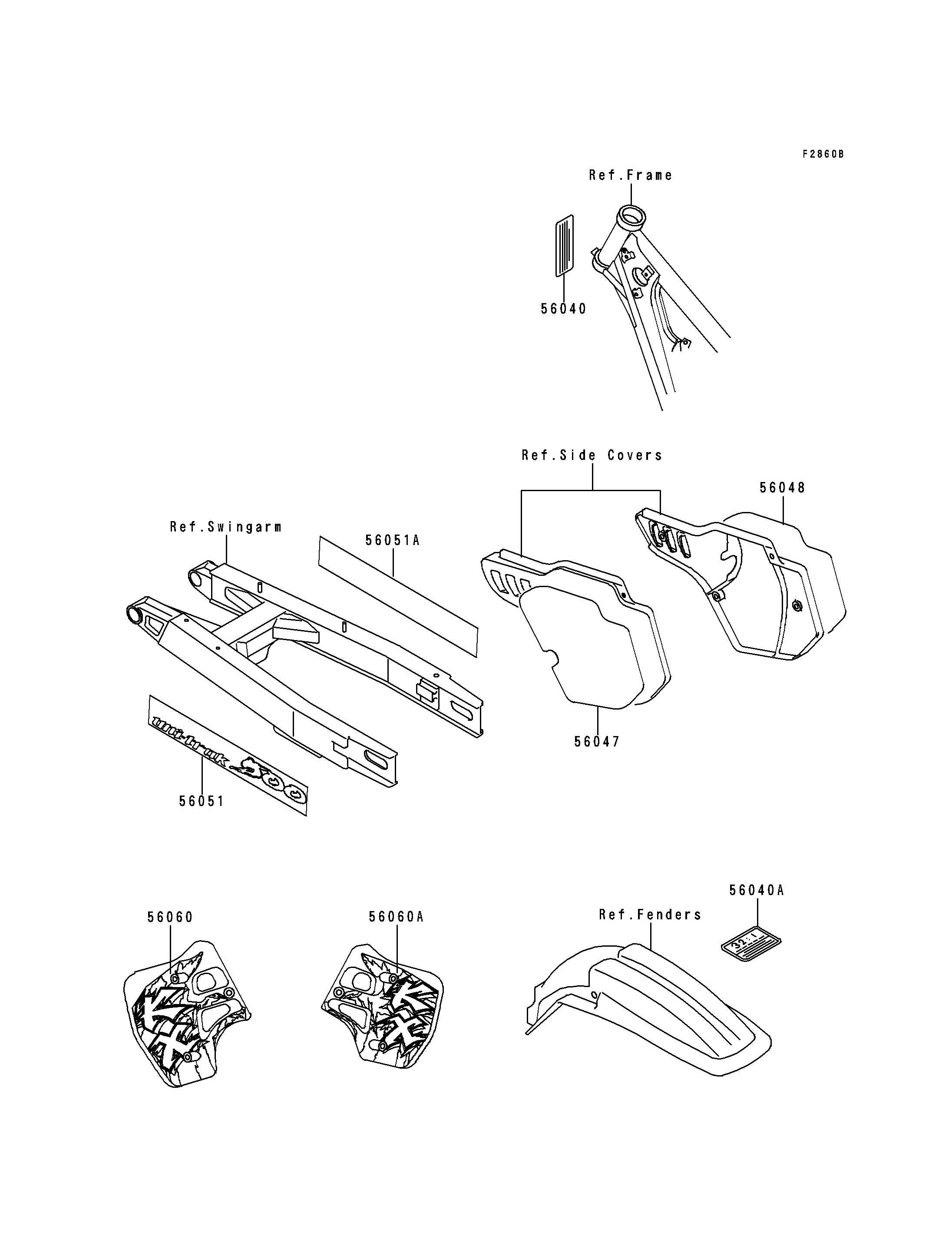

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL-WARNING,NOISE | 56040 | 56040-1101 | 1 | ||
| LABEL-WARNING,GASOLINE/OIL | 56040A | 56040-1129 | 1 | ||
| PATTERN,SIDE COVER,LH | 56047 | 56047-1784 | 1 | ||
| PATTERN,SIDE COVER,RH | 56048 | 56048-1524 | 1 | ||
| MARK,SWING ARM,LH,UNI-TRAK 500 | 56051 | 56051-1036 | 1 | ||
| MARK,SWING ARM,RH,500 UNI-TRAK | 56051A | 56051-1037 | 1 | ||
| PATTERN,SHROUD,LH | 56060 | 56060-1724 | 1 | ||
| PATTERN,SHROUD,RH | 56060A | 56060-1725 | 1 |
