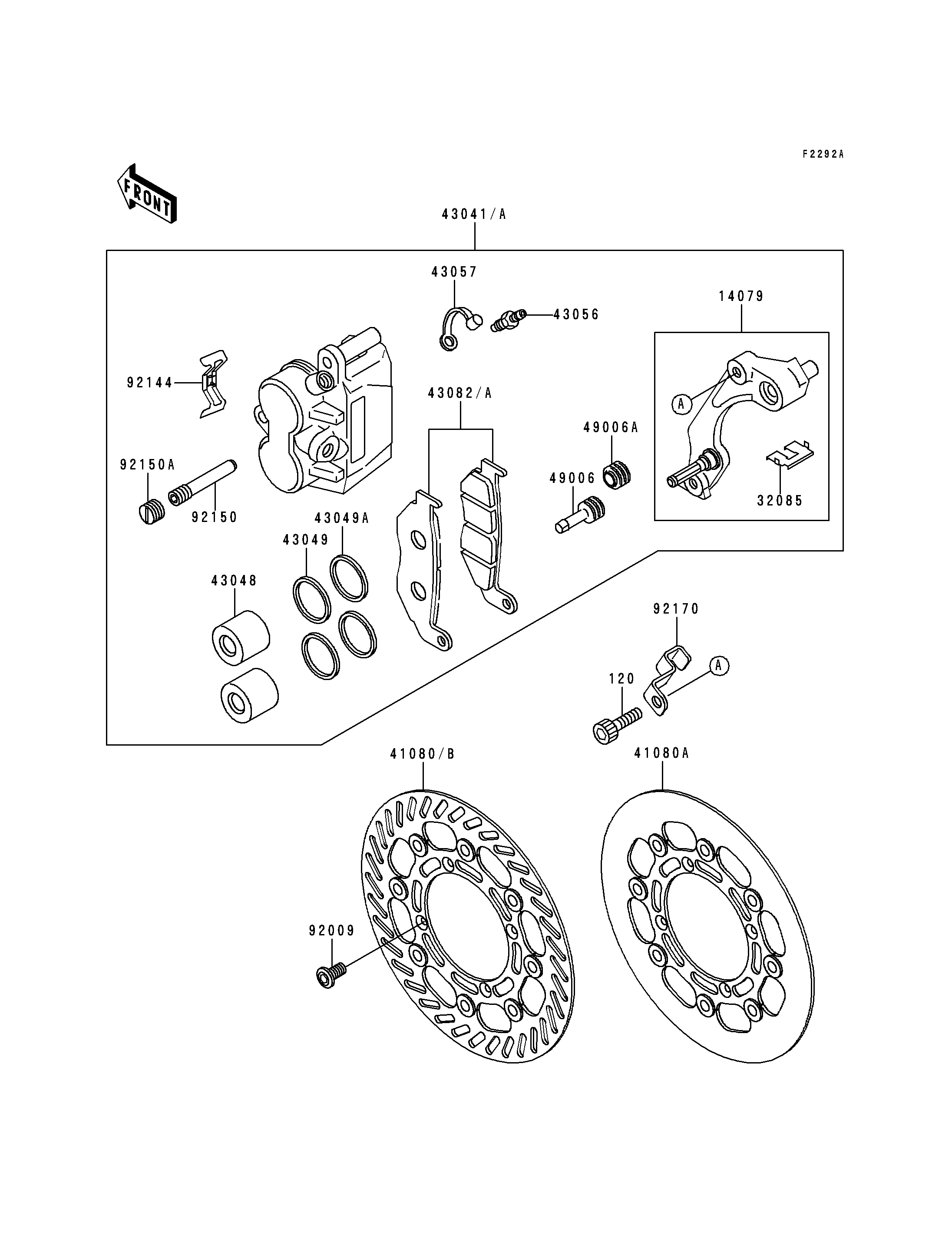

1996 KX500 - Front Brake(KX500-E6/E7/E8)

DOWNLOAD PDF
SELECT A NEW PART
120
14079
32085
41080A
41080B
43041A
43048
43049
43049A
43056
43057
43082A
49006
49006A
92009
92144
92150
92150A
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X40 120 120P0840 2
HOLDER-ASSY,FRONT CALIPER 14079 14079-1097 1
STOPPER,PAD 32085 32085-1361 1
DISC,FR 41080A 41080-1365 1 (OPTION)
DISC,FR 41080B 41080-1387 1
CALIPER-ASSY,FR,LH 43041A 43041-1576 1
PISTON-CALIPER 43048 43048-1064 2
PACKING,PISTON SEAL 43049 43049-1060 2
PACKING,PISTON SEAL 43049A 43049-1061 2
BREATHER-BRAKE 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
PAD-ASSY-BRAKE 43082A 43082-1172 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1242 1
SCREW,6X14 92009 92009-1546 4
SPRING,PAD 92144 92144-1721 1
BOLT,HANGER 92150 92150-1691 1
BOLT,PLUG 92150A 92150-1692 1
CLAMP,HOSE 92170 92170-1404 1
