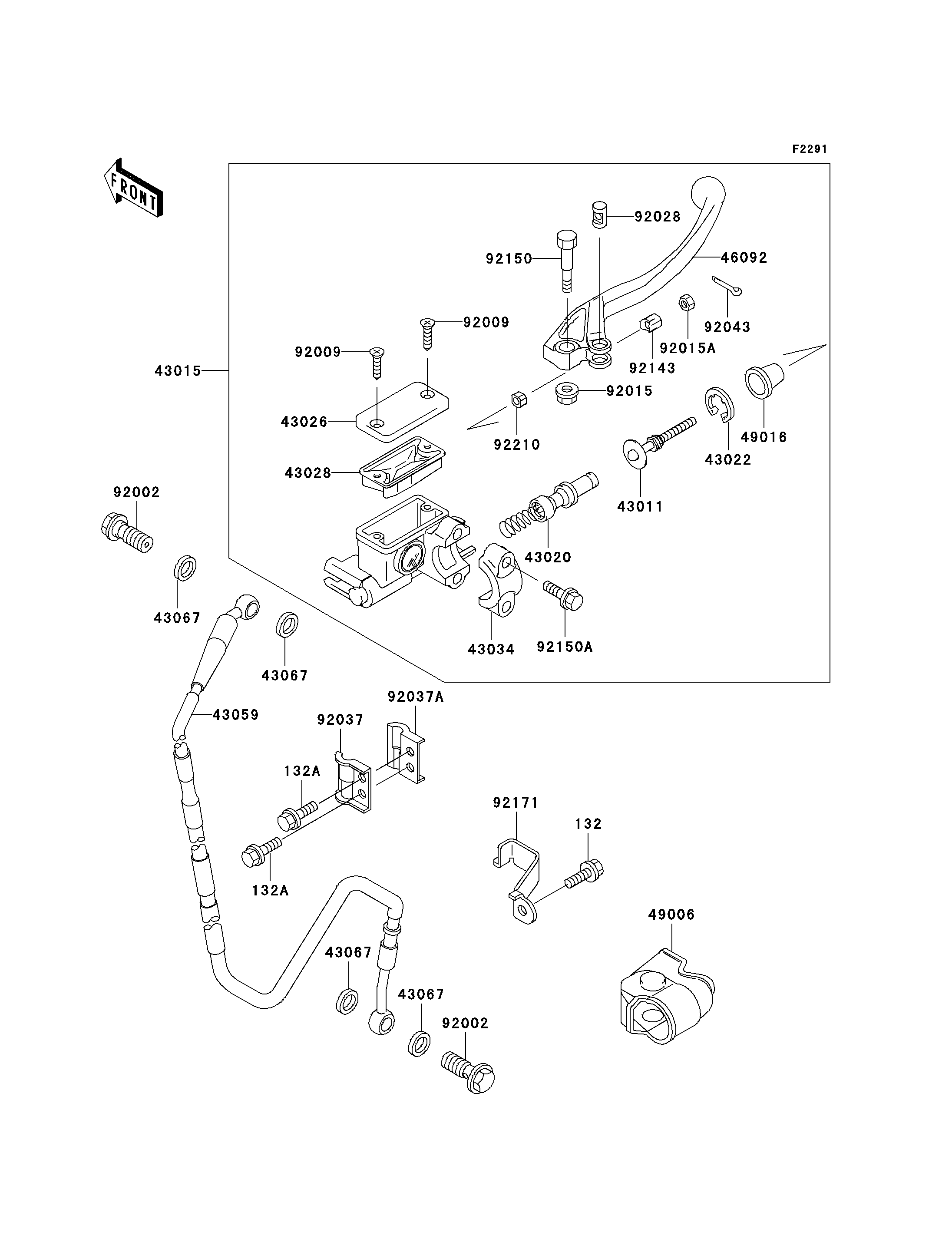

2003 KX500 - Front Master Cylinder(KX500-E15)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132A
43011
43015
43020
43022
43026
43028
43034
43059
43067
43067
43067
43067
46092
49006
49016
92002
92002
92009
92009
92015
92015A
92028
92037
92037A
92043
92143
92150
92150A
92171
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0612 1
BOLT-FLANGED-SMALL 132A 132G0616 2
ROD-BRAKE,FR MASTER CYLINDER 43011 43011-1181 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1657 1
PISTON-COMP-BRAKE 43020 43020-1115 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1075 1
DIAPHRAGM 43028 43028-1067 1
HOLDER-BRAKE 43034 43034-1110 1
HOSE-BRAKE,FR 43059 43059-1913 1
WASHER,10.5X15X1.5 43067 43067-001 4
LEVER-GRIP,FRONT BRAKE 46092 46092-1191 1
BOOT,FRONT BRAKE LEVER 49006 49006-1286 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,OIL,L=23 92002 92002-1888 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM 92015 92015-1528 1
NUT,ADJUST 92015A 92015-1642 1
BUSHING 92028 92028-1792 1
CLAMP,BRAKE HOSE,OUTSIDE 92037 92037-1362 1
CLAMP,BRAKE HOSE,INSIDE 92037A 92037-1363 1
PIN 92043 92043-1539 1
COLLAR 92143 92143-1882 1
BOLT,LEVER SET 92150 92150-1451 1
BOLT 92150A 92150-1452 2
CLAMP,HOSE 92171 92171-1160 1
NUT,ADJUST 92210 92210-1064 1
