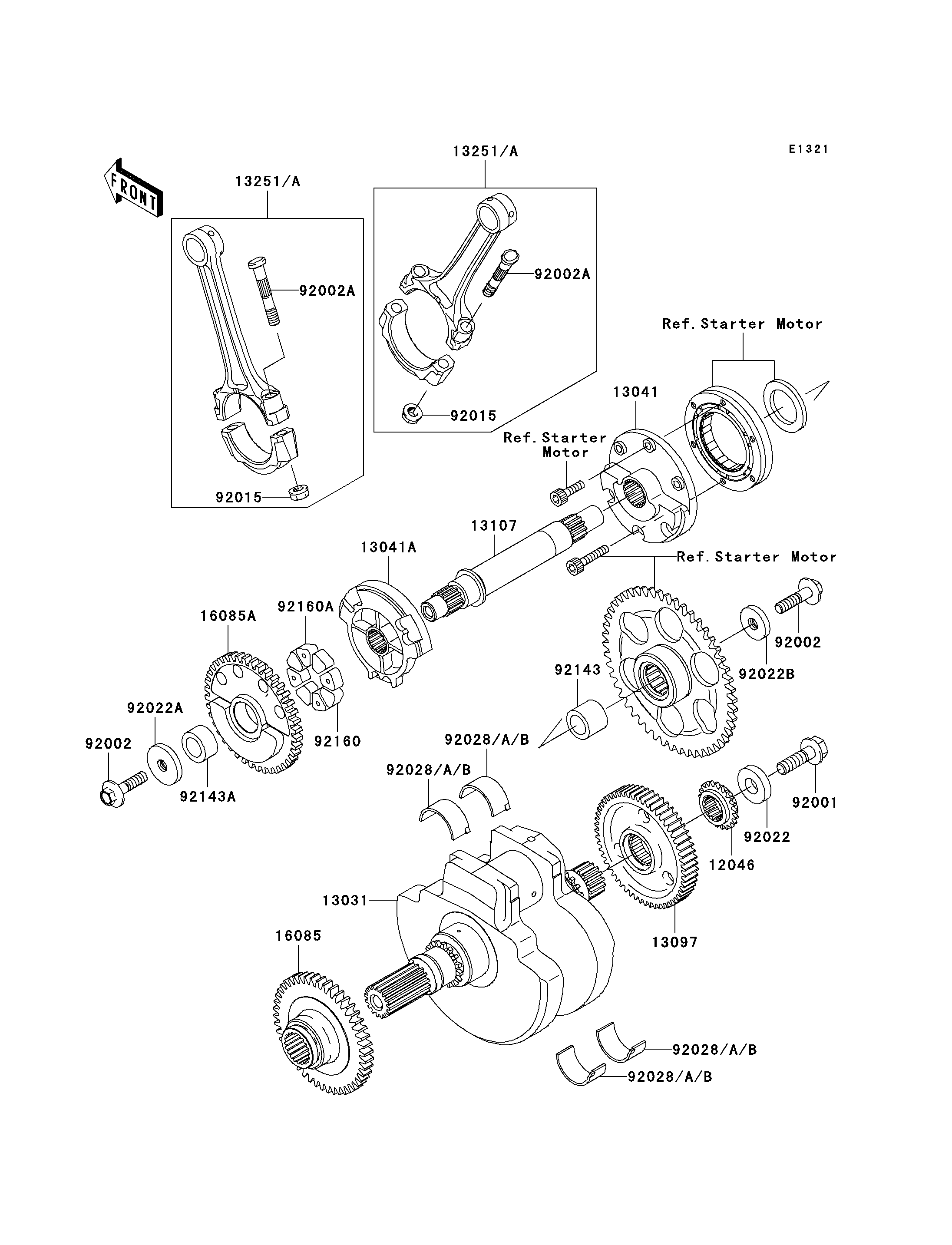

2008 Vulcan® 1600 Nomad™ - Crankshaft

DOWNLOAD PDF
SELECT A NEW PART
12046
13031
13041
13041A
13097
13107
13251
13251
13251A
13251A
16085
16085A
92001
92002
92002
92002A
92002A
92015
92015
92022
92022A
92022B
92028
92028
92028
92028
92028A
92028A
92028A
92028A
92028B
92028B
92028B
92028B
92143
92143A
92160
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,WATER PUMP 12046 12046-1103 1
CRANKSHAFT-COMP 13031 13031-0019 1
BALANCER,RH 13041 13041-1089 1
BALANCER,LH 13041A 13041-1093 1
GEAR-PRIMARY SPUR,56T 13097 13097-1369 1
SHAFT,BALANCER 13107 13107-1524 1
ROD-ASSY-CONNECTING,D 13251 13251-1147-DD 2
ROD-ASSY-CONNECTING,G 13251A 13251-1147-GG 2
GEAR,BALANCER,46T 16085 16085-0023 1
GEAR,BALANCER,46T 16085A 16085-1366 1
BOLT,FLANGED,12X40 92001 92001-1146 1
BOLT,FLANGED,10X40 92002 92002-1296 2
BOLT,CONNECTING ROD 92002A 92002-1896 4
NUT,CONNECTING ROD 92015 92015-1643 4
WASHER,12X40X6 92022 92022-1904 1
WASHER,10X40X6 92022A 92022-1905 1
WASHER,10X33X6 92022B 92022-1906 1
BUSHING,CONNECTING ROD,BLUE 92028 92028-1474 AR
BUSHING,CONNECTING ROD,BLACK 92028A 92028-1475 AR
BUSHING,CONNECTING ROD,BROWN 92028B 92028-1476 AR
COLLAR,20X30X24 92143 92143-1093 1
COLLAR,20X31X16 92143A 92143-1821 1
DAMPER 92160 92160-1725 4
DAMPER 92160A 92160-1726 4
