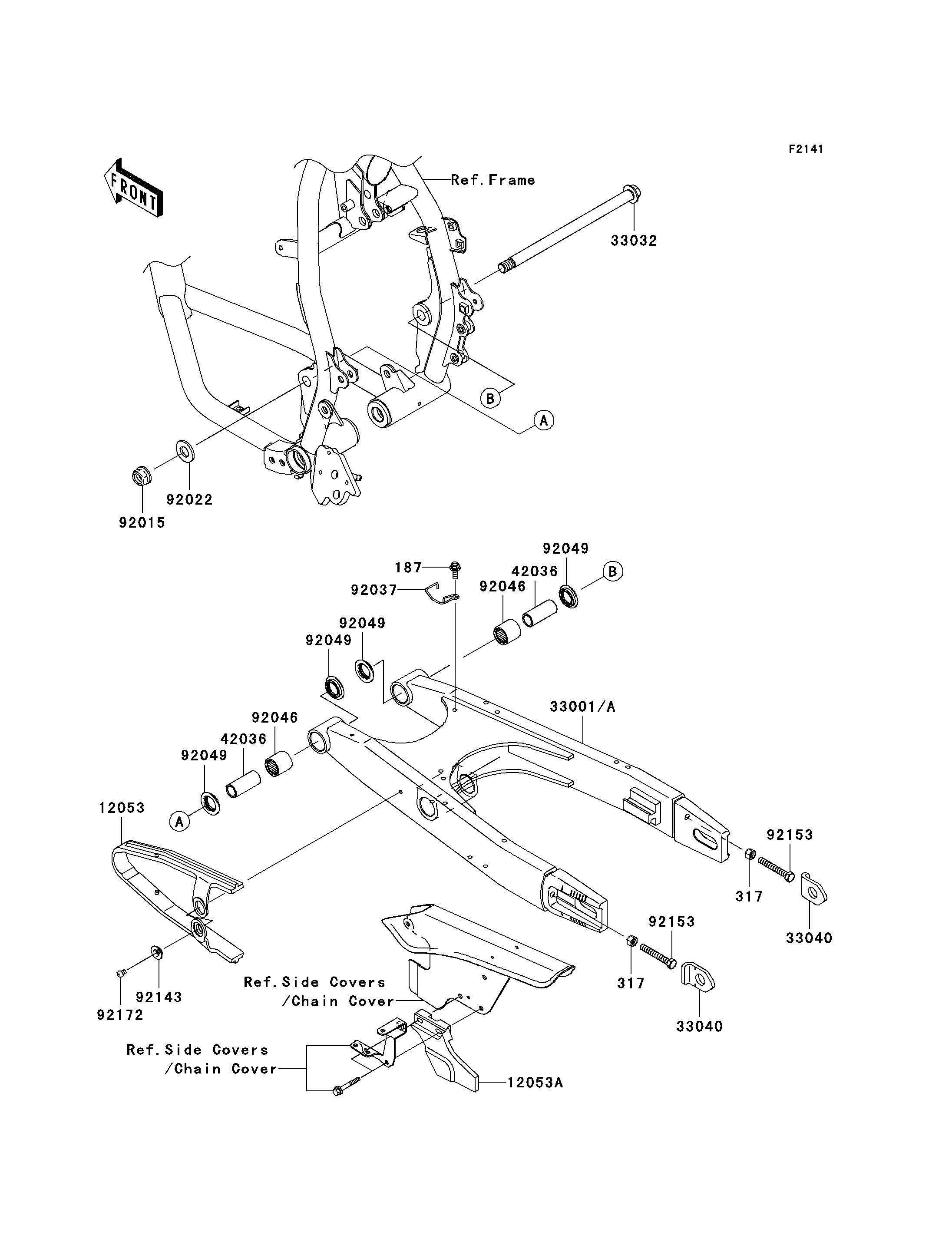

Parts Diagrams |
187
317
317
12053
12053A
33001
33032
33040
33040
42036
42036
92015
92022
92037
92046
92046
92049
92049
92049
92049
92143
92153
92153
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET-WSP,6X16 | 187 | 187BA0616 | 1 | ||
| NUT-HEX-SMALL,8MM | 317 | 317BA0800 | 2 | ||
| GUIDE-CHAIN | 12053 | 12053-0082 | 1 | ||
| GUIDE-CHAIN,RR | 12053A | 12053-1104 | 1 | ||
| ARM-COMP-SWING,P.SILVER | 33001 | 33001-0102-458 | 1 | ||
| SHAFT-SWING ARM | 33032 | 33032-1128 | 1 | ||
| ADJUSTER-CHAIN | 33040 | 33040-0024 | 2 | ||
| SLEEVE,15X20X47.5 | 42036 | 42036-1204 | 2 | ||
| NUT,14MM | 92015 | 92015-1459 | 1 | ||
| WASHER,16X32X3.2 | 92022 | 92022-1701 | 1 | ||
| CLAMP,HOSE | 92037 | 92037-1902 | 1 | ||
| BEARING-NEEDLE,BM202726 | 92046 | 92046-1110 | 2 | ||
| SEAL-OIL,ARM | 92049 | 92049-1109 | 4 | ||
| COLLAR | 92143 | 92143-1676 | 1 | ||
| BOLT,8X55 | 92153 | 92153-1407 | 2 | ||
| SCREW,5X8 | 92172 | 92172-0119 | 1 |
| BOLT-UPSET-WSP,6X16 | |
| REF # | 187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX-SMALL,8MM | |
| REF # | 317 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,RR | |
| REF # | 12053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-COMP-SWING,P.SILVER | |
| REF # | 33001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-SWING ARM | |
| REF # | 33032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ADJUSTER-CHAIN | |
| REF # | 33040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,15X20X47.5 | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,16X32X3.2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,BM202726 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,ARM | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X55 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X8 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
