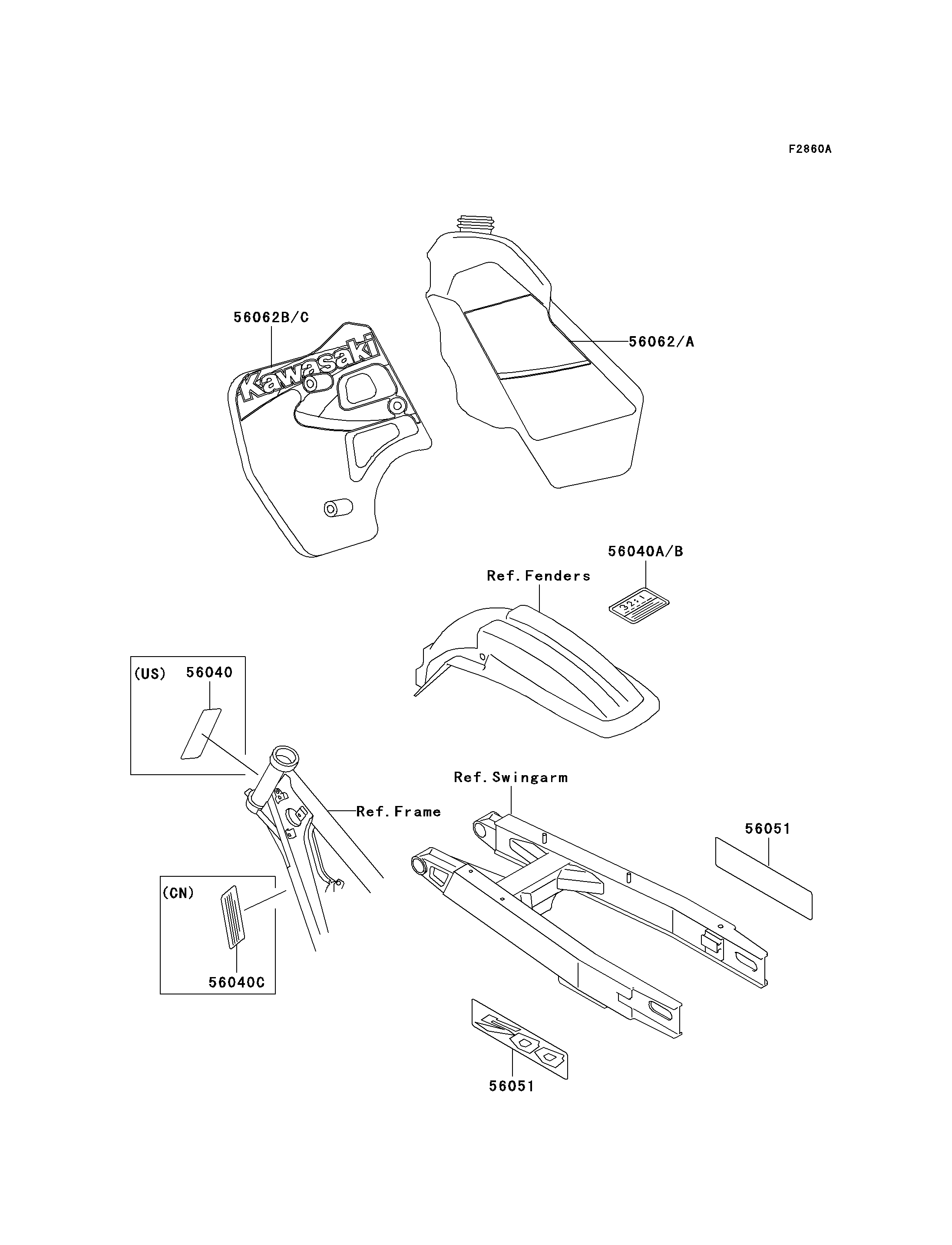

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,SWING ARM,500 | 56051 | 56051-1873 | 2 | ||
| PATTERN,FUEL TANK,LH | 56062 | 56062-1558 | 1 | ||
| PATTERN,FUEL TANK,RH | 56062A | 56062-1559 | 1 | ||
| PATTERN,SHROUD,LH | 56062B | 56062-1560 | 1 | ||
| PATTERN,SHROUD,RH | 56062C | 56062-1561 | 1 | ||
| LABEL-WARNING,NOISE | 56040 | 56040-1101 | 1 | US | |
| LABEL-WARNING,GASOLINE/OIL | 56040A | 56040-1129 | 1 | US | |
| LABEL-WARNING,GASOLINE/OIL | 56040B | 56040-1306 | 1 | CN | |
| LABEL-WARNING,WARRANTY | 56040C | 56040-1335 | 1 | CN |
