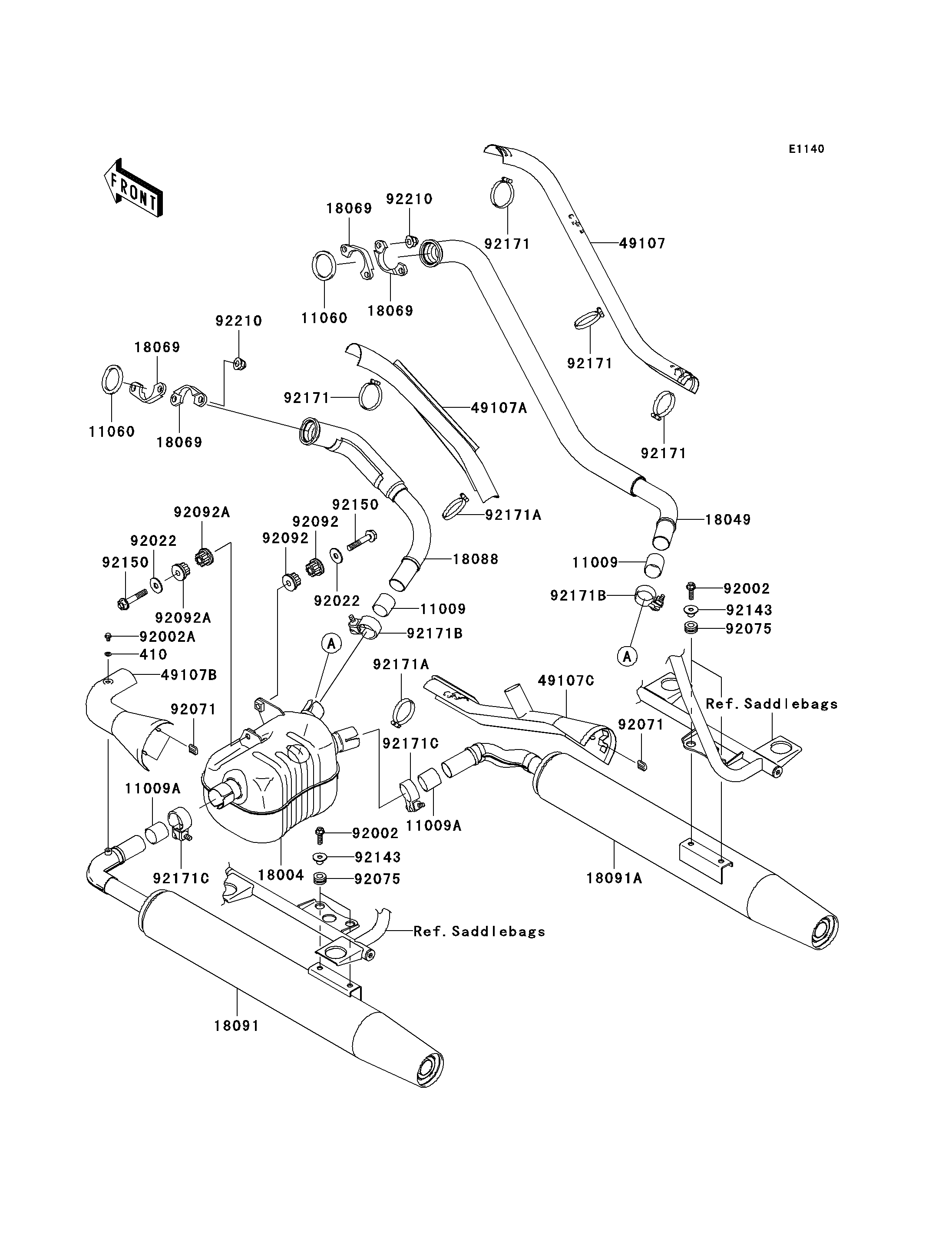

2008 Vulcan® 1600 Nomad™ - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
410
11009
11009
11009A
11009A
11060
11060
18004
18049
18069
18069
18069
18069
18088
18091
18091A
49107
49107A
49107B
49107C
92002
92002
92002A
92022
92022
92071
92071
92075
92075
92092
92092
92092A
92092A
92143
92143
92150
92150
92171
92171
92171
92171
92171A
92171A
92171B
92171B
92171C
92171C
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN-SMALL,6MM 410 410S0600 1
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1667 2
GASKET,MUFFLER CONNECTING 11009A 11009-1865 2
GASKET,EXHAUST PIPE 11060 11060-1119 2
CHAMBER-PREMUFFLER 18004 18004-0004 1
PIPE-EXHAUST,FR 18049 18049-1906 1
HOLDER-EXHAUST PIPE 18069 18069-1161 4
PIPE-EXHAUST,RR 18088 18088-1100 1
BODY-COMP-MUFFLER 18091 18091-0199 1
BODY-COMP-MUFFLER 18091A 18091-0200 1
COVER-EXHAUST PIPE,FRONT 49107 49107-0015 1
COVER-EXHAUST PIPE,RR 49107A 49107-0055 1
COVER-EXHAUST PIPE,LH 49107B 49107-1158 1
COVER-EXHAUST PIPE,RH 49107C 49107-1180 1
BOLT,8X25 92002 92002-1591 4
BOLT,6X8 92002A 92002-1604 1
WASHER,10.5X30X2.3,BLACK 92022 92022-1302 2
GROMMET 92071 92071-1270 4
DAMPER 92075 92075-1898 4
BUSHING-RUBBER,MUFFLER 92092 92092-1013 2
BUSHING-RUBBER 92092A 92092-1081 2
COLLAR 92143 92143-1753 4
BOLT,10X55 92150 92150-1749 2
CLAMP 92171 92171-0058 4
CLAMP 92171A 92171-0059 2
CLAMP,CHAMBER-EX PIPE 92171B 92171-0061 2
CLAMP,CHAMBER-MUFFLER 92171C 92171-0062 2
NUT,CAP,8MM 92210 92210-1132 4
