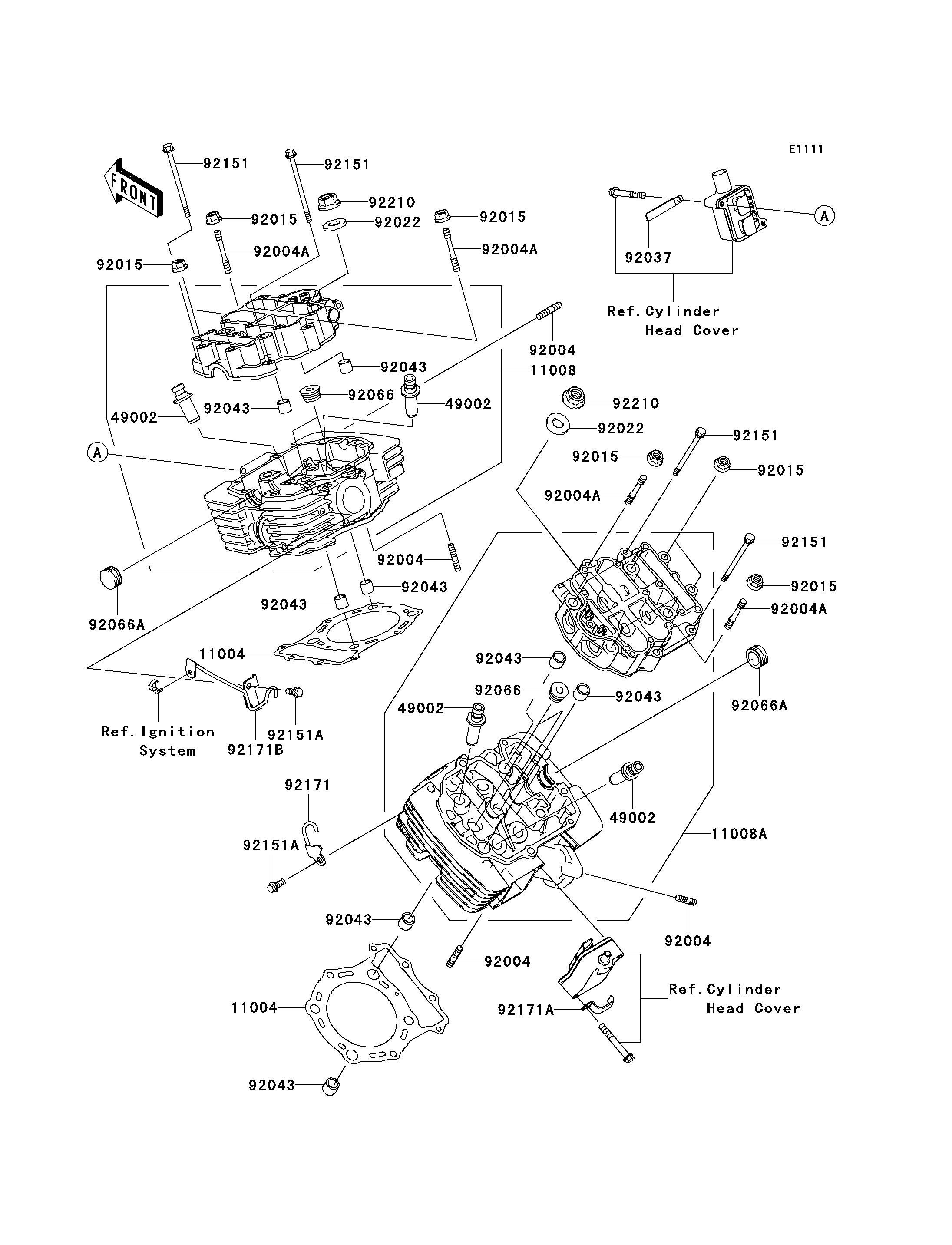

2008 Vulcan® 1600 Nomad™ - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11004
11008
11008A
49002
49002
49002
49002
92004
92004
92004
92004
92004A
92004A
92004A
92004A
92015
92015
92015
92015
92015
92015
92022
92022
92037
92043
92043
92043
92043
92043
92043
92043
92043
92066
92066
92066A
92066A
92151
92151
92151
92151
92151A
92151A
92171
92171A
92171B
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1334 2
HEAD-COMP-CYLINDER,FR 11008 11008-0043 1
HEAD-COMP-CYLINDER,RR 11008A 11008-0044 1
GUIDE-VALVE 49002 49002-1088 AR
STUD,8X25 92004 92004-1214 8
STUD,8X46.5 92004A 92004-1224 4
NUT,FLANGED,8MM 92015 92015-1406 8
WASHER,12.3X25X3.2 92022 92022-1862 8
CLAMP,L=45 92037 92037-1539 1
PIN,13X16X14 92043 92043-1608 8
PLUG,PT1/2X12.5 92066 92066-0002 4
PLUG 92066A 92066-0031 2
BOLT,6X115 92151 92151-1058 4
BOLT,6X14 92151A 92151-1423 2
CLAMP,HEAD,RR 92171 92171-0005 1
CLAMP 92171A 92171-0011 1
CLAMP,HEAD,FR 92171B 92171-0127 1
NUT,12MM 92210 92210-0115 8
