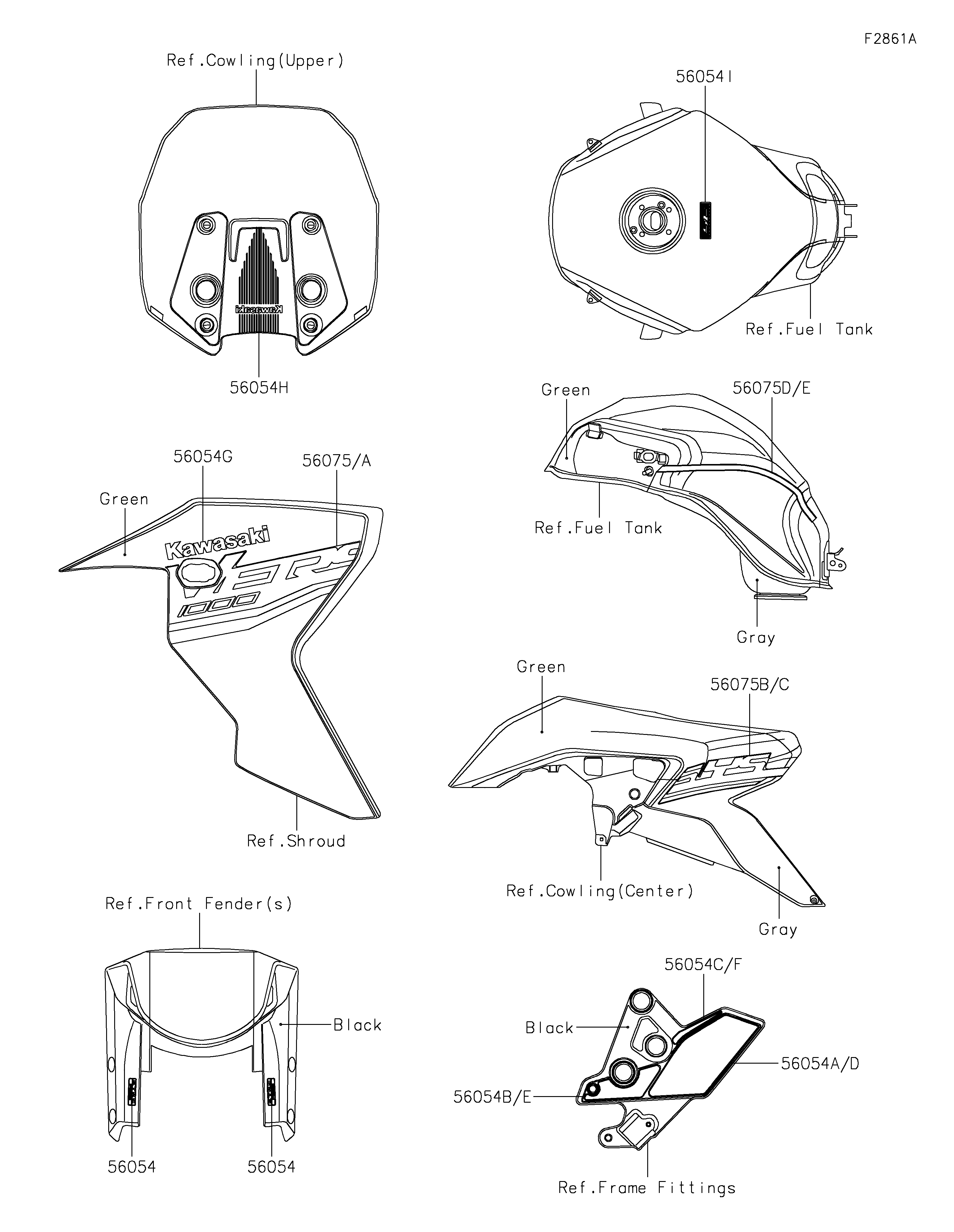

2020 VERSYS® 1000 SE LT+ - Decals(Green/Gray)(DLF)(CA,US)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054
56054A
56054B
56054C
56054D
56054E
56054F
56054G
56054H
56054I
56075
56075A
56075B
56075C
56075D
56075E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FR FENDER,KTRC ABS 56054 56054-1428 2 CA,US
MARK,STEP STAY,LH,RR 56054A 56054-1548 1 CA,US
MARK,STEP STAY,LH,FR 56054B 56054-1549 1 CA,US
MARK,STEP STAY,LH,SIDE 56054C 56054-1710 1 CA,US
MARK,STEP STAY,RH,RR 56054D 56054-1711 1 CA,US
MARK,STEP STAY,RH,FR 56054E 56054-1712 1 CA,US
MARK,STEP STAY,RH,SIDE 56054F 56054-1713 1 CA,US
MARK,KAWASAKI 56054G 56054-1876 2 CA,US
MARK,WINDSHIELD,KAWASAKI 56054H 56054-2185 1 CA,US
MARK,FUEL TANK,SE,3D 56054I 56054-2435 1 CA,US
PATTERN,SHROUD,LH 56075 56075-7730 1 CA,US
PATTERN,SHROUD,RH 56075A 56075-7731 1 CA,US
PATTERN,SIDE COWL.,LH 56075B 56075-7732 1 CA,US
PATTERN,SIDE COWL.,RH 56075C 56075-7733 1 CA,US
PATTERN,FUEL TANK,LH 56075D 56075-7785 1 CA,US
PATTERN,FUEL TANK,RH 56075E 56075-7786 1 CA,US
