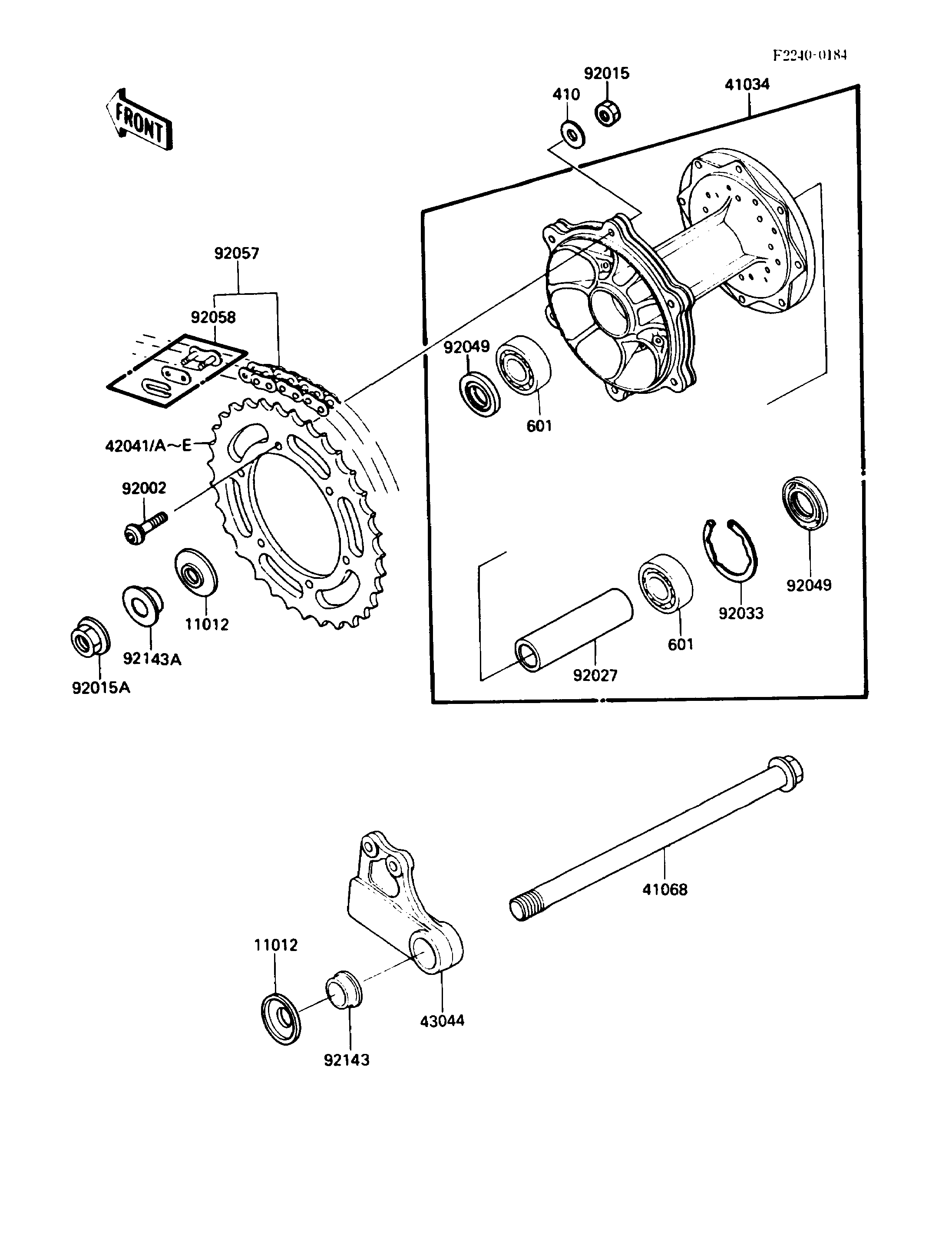

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,REAR AXLE | 11012 | 11012-1581 | 2 | ||
| DRUM-ASSY,REAR BRAKE | 41034 | 41034-1171 | 1 | ||
| AXLE,RR | 41068 | 41068-1249 | 1 | ||
| SPROCKET-HUB,45T,AL | 42041 | 42041-1154 | 1 | (OPTION) | |
| SPROCKET-HUB,49T,AL | 42041A | 42041-1256 | 1 | (OPTION) | |
| SPROCKET-HUB,48T,AL | 42041B | 42041-1257 | 1 | (OPTION) | |
| SPROCKET-HUB,47T,AL | 42041C | 42041-1258 | 1 | ||
| SPROCKET-HUB,46T,AL | 42041D | 42041-1259 | 1 | (OPTION) | |
| SPROCKET-HUB,47T | 42041E | 42041-1274 | 1 | (OPTION) | |
| HOLDER-COMP-CALIPER | 43044 | 43044-1068 | 1 | ||
| BOLT,8MM | 92002 | 92002-1387 | 6 | ||
| NUT,LOCK,8MM | 92015 | 92015-1124 | 6 | ||
| NUT,20MM | 92015A | 92015-1461 | 1 | ||
| COLLAR,20.2X25.4X120 | 92027 | 92027-1942 | 1 | ||
| RING-SNAP,42MM | 92033 | 92033-1041 | 1 | ||
| SEAL-OIL,BJNC2 25425 | 92049 | 92049-1203 | 2 | ||
| CHAIN,DRIVE,DID520DS5X114L | 92057 | 92057-1202 | 1 | ||
| JOINT-CHAIN,DRIVE | 92058 | 92058-1013 | 1 | ||
| COLLAR,REAR AXLE,L=13 | 92143 | 92143-1089 | 1 | ||
| COLLAR,REAR AXLE,L=18 | 92143A | 92143-1090 | 1 | ||
| WASHER-PLAIN-SMALL,8MM | 410 | 410B0800 | 6 | ||
| BEARING-BALL,#6004UC3 | 601 | 601B6004U | 2 |
