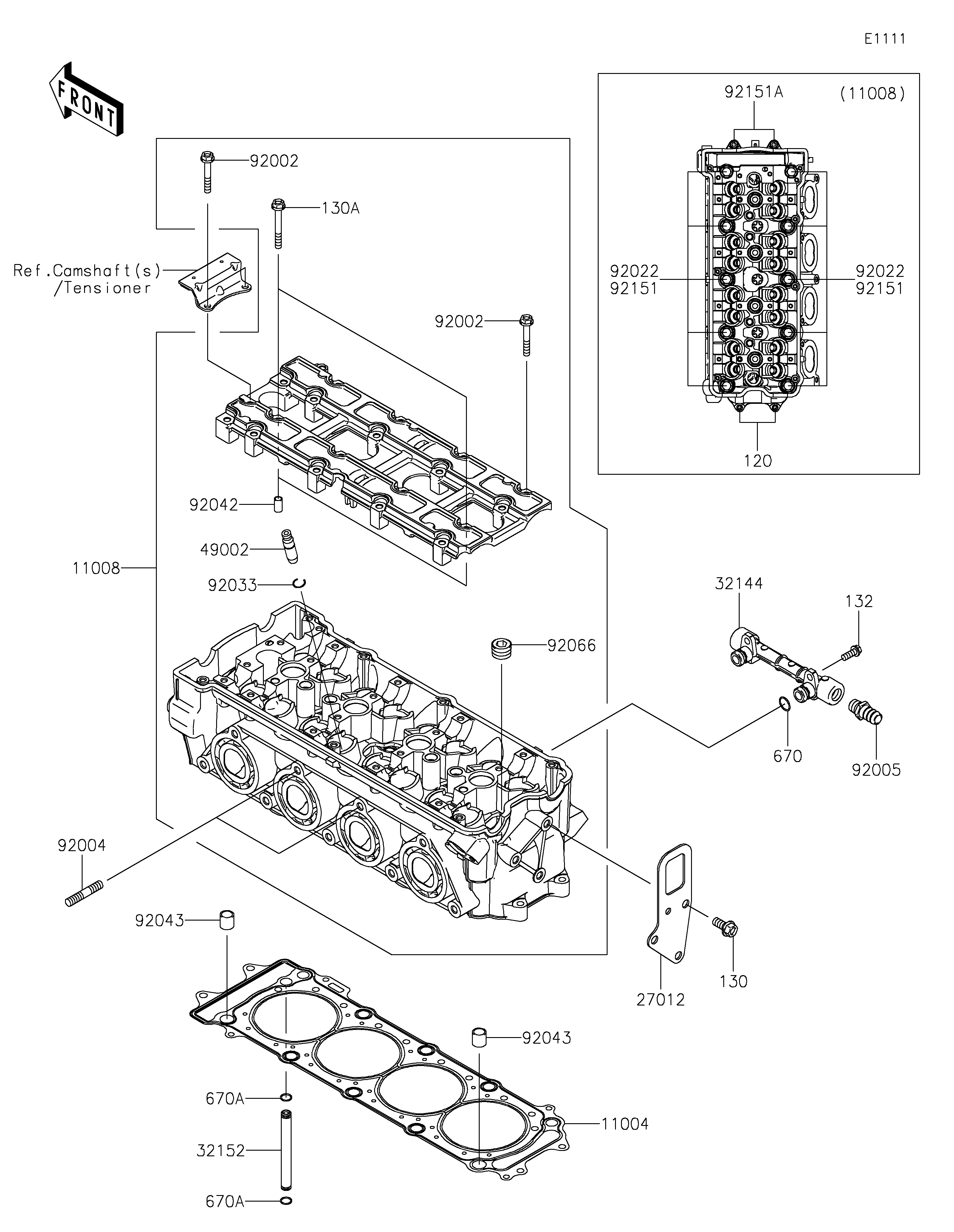

2021 JET SKI® STX®160X - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
120
130
130A
132
27012
32144
32152
49002
670
670A
670A
92002
92002
92004
92005
92022
92022
92033
92042
92043
92043
92066
92151
92151
92151A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-3721 1
HEAD-COMP-CYLINDER 11008 11008-3709 1
BOLT-SOCKET,6X30 120 120CD0630 2
BOLT-FLANGED,8X18 130 130BD0818 3
BOLT-FLANGED,6X50 130A 130CD0650 2
BOLT-FLANGED-SMALL,6X16 132 132BD0616 2
HOOK,ENGINE,RR 27012 27012-3863 1
PIPE-ASSY 32144 32144-3709 1
PIPE,OIL 32152 32152-1544 1
GUIDE-VALVE 49002 49002-1140 16
O RING,12MM 670 670B2012 2
O RING,7MM 670A 670D1507 2
BOLT,6X40 92002 92002-1756 18
STUD,8X30 92004 92004-3743 2
FITTING 92005 92005-3714 1
WASHER,11.5X20.5X1.6 92022 92022-1720 10
RING-SNAP 92033 92033-1247 16
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,14X14 92043 92043-1593 2
PLUG,PT1/2X12.5 92066 92066-0002 5
BOLT,11X168 92151 92151-1513 10
BOLT,SOCKET,7X120 92151A 92151-1804 2
