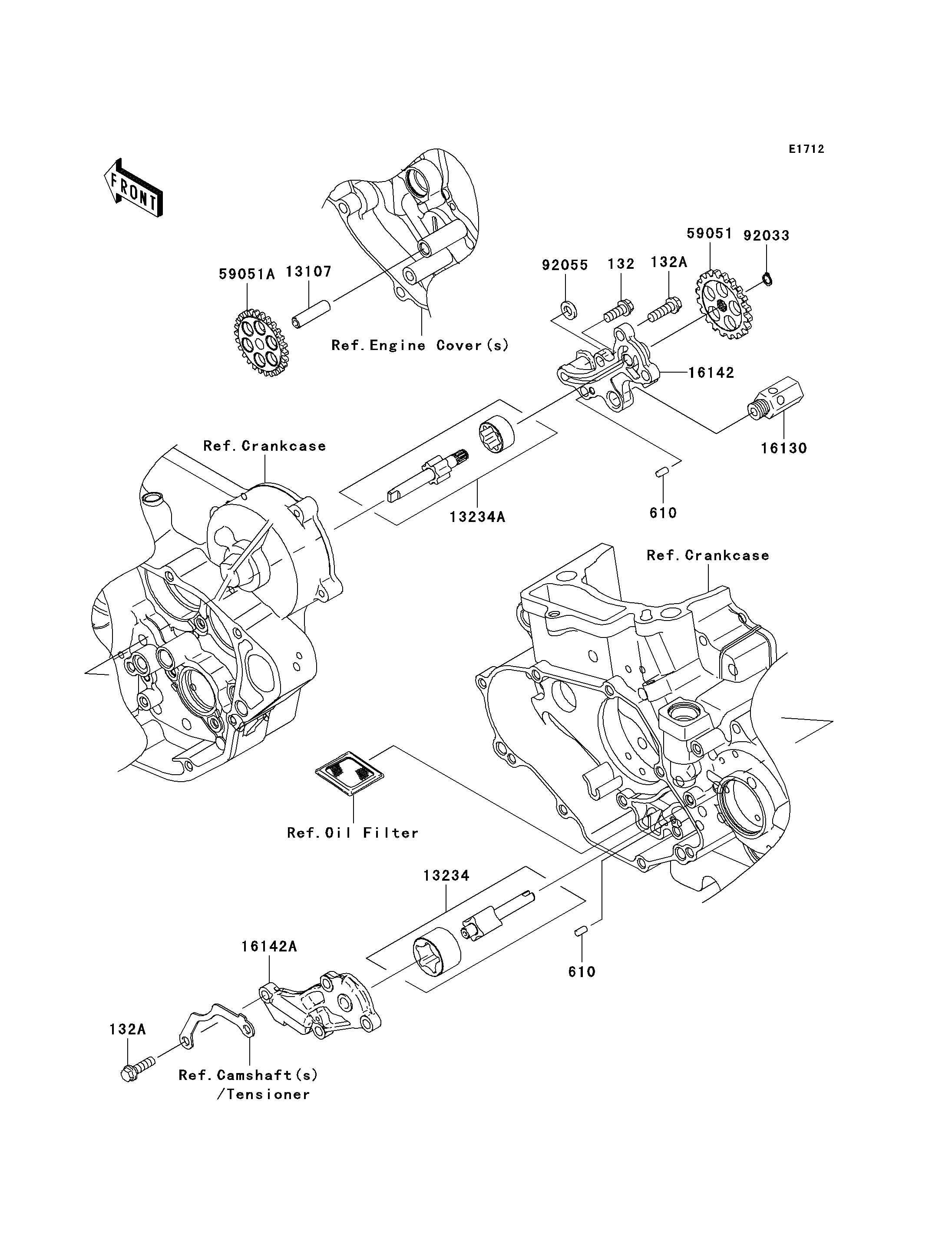

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X16 | 132 | 132G0616 | 1 | ||
| BOLT-FLANGED-SMALL,6X20 | 132A | 132G0620 | 7 | ||
| ROLLER,4X8 | 610 | 610A0408 | 2 | ||
| SHAFT | 13107 | 13107-0056 | 1 | ||
| SHAFT-COMP,SCAVENGE | 13234 | 13234-0013 | 1 | ||
| SHAFT-COMP,FEED | 13234A | 13234-0014 | 1 | ||
| VALVE-ASSY-RELIEF | 16130 | 16130-1058 | 1 | ||
| COVER-PUMP,OIL,RH | 16142 | 16142-0031 | 1 | ||
| COVER-PUMP,OIL,LH | 16142A | 16142-0035 | 1 | ||
| GEAR-SPUR,O/P DRIVEN,28T | 59051 | 59051-0044 | 1 | ||
| GEAR-SPUR,O/P IDLER,26T | 59051A | 59051-0045 | 1 | ||
| RING-SNAP | 92033 | 92033-0019 | 1 | ||
| RING-O,OD=13 | 92055 | 92055-074 | 1 |
| BOLT-FLANGED-SMALL,6X16 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X20 | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| ROLLER,4X8 | |
| REF # | 610 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHAFT | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-COMP,SCAVENGE | |
| REF # | 13234 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-COMP,FEED | |
| REF # | 13234A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-ASSY-RELIEF | |
| REF # | 16130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-PUMP,OIL,RH | |
| REF # | 16142 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-PUMP,OIL,LH | |
| REF # | 16142A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,O/P DRIVEN,28T | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,O/P IDLER,26T | |
| REF # | 59051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,OD=13 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
