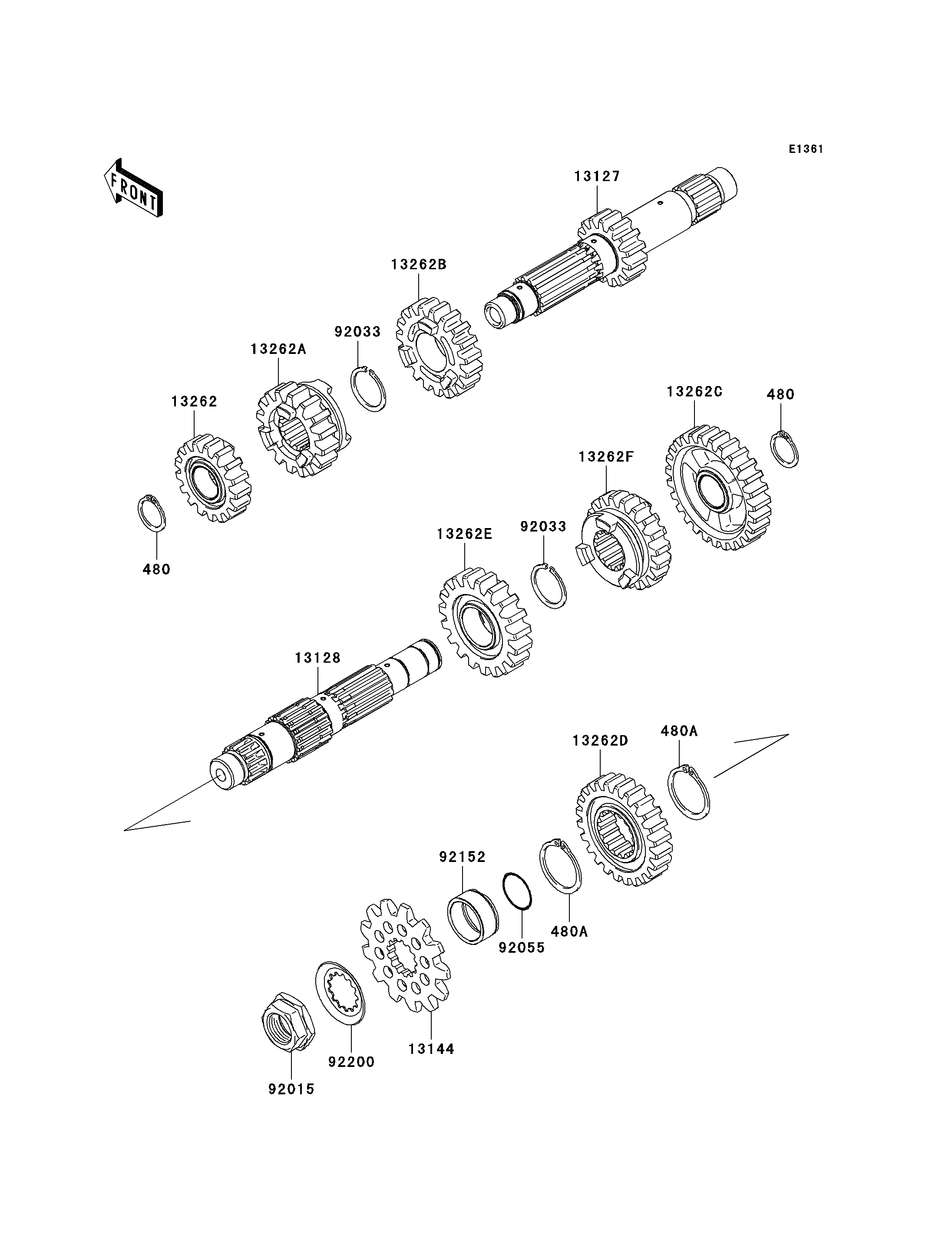

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
480
480
480A
480A
13127
13128
13144
13262
13262A
13262B
13262C
13262D
13262E
13262F
92015
92033
92033
92055
92152
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CIRCLIP-TYPE-C,19MM | 480 | 480J1900 | 2 | ||
| CIRCLIP-TYPE-C,30MM | 480A | 480J3000 | 2 | ||
| SHAFT-TRANSMISSION INPUT,15T | 13127 | 13127-0037 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-0021 | 1 | ||
| SPROCKET-OUTPUT,13T | 13144 | 13144-0017 | 1 | ||
| GEAR,INPUT 2ND,17T | 13262 | 13262-0255 | 1 | ||
| GEAR,INPUT 3RD,16T | 13262A | 13262-0256 | 1 | ||
| GEAR,INPUT 4TH,19T | 13262B | 13262-0257 | 1 | ||
| GEAR,OUTPUT LOW,27T | 13262C | 13262-0258 | 1 | ||
| GEAR,OUTPUT 2ND,24T | 13262D | 13262-0259 | 1 | ||
| GEAR,OUTPUT 3RD,19T | 13262E | 13262-0260 | 1 | ||
| GEAR,OUTPUT 4TH,19T | 13262F | 13262-0261 | 1 | ||
| NUT,20MM | 92015 | 92015-1963 | 1 | ||
| RING-SNAP,25MM | 92033 | 92033-1172 | 2 | ||
| RING-O,21.5X1.5 | 92055 | 92055-1293 | 1 | ||
| COLLAR,25X30X13.2 | 92152 | 92152-0150 | 1 | ||
| WASHER | 92200 | 92200-1065 | 1 |
| CIRCLIP-TYPE-C,19MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-C,30MM | |
| REF # | 480A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION INPUT,15T | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION OUTPUT | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-OUTPUT,13T | |
| REF # | 13144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 2ND,17T | |
| REF # | 13262 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 3RD,16T | |
| REF # | 13262A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 4TH,19T | |
| REF # | 13262B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT LOW,27T | |
| REF # | 13262C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 2ND,24T | |
| REF # | 13262D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 3RD,19T | |
| REF # | 13262E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 4TH,19T | |
| REF # | 13262F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,25MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,21.5X1.5 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,25X30X13.2 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
