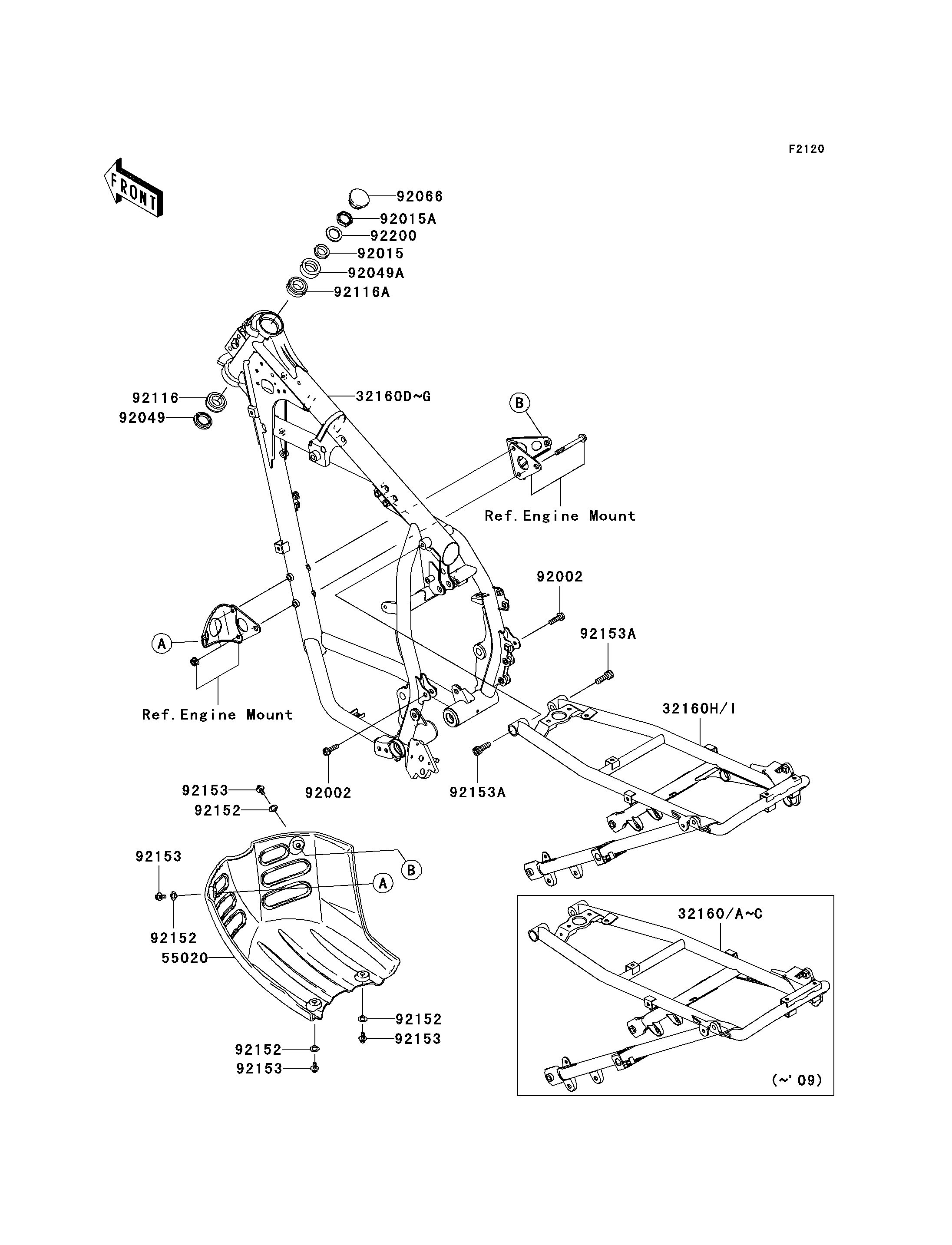

2009 KLR™650 - Frame

DOWNLOAD PDF
SELECT A NEW PART
55020
92002
92002
92015
92015A
92049
92049A
92066
92116
92116A
92152
92152
92152
92152
92153
92153
92153
92153
92153A
92153A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUARD,ENGINE,F.BLACK 55020 55020-0235-6Z 1
BOLT,FLANGED,8X28 92002 92002-1971 2
NUT,25MM,T=12 92015 92015-1546 1
NUT,STEERING STEM,22MM 92015A 92015-1653 1
SEAL-OIL,XMHE36X52X4J 92049 92049-1162 1
SEAL-OIL,STEERING STEM 92049A 92049-1214 1
PLUG 92066 92066-1306 1
BEARING-ROLLER,HR320/28XJ 92116 92116-1009 1
BEARING-ROLLER,HICAP 32005JR 92116A 92116-1052 1
COLLAR 92152 92152-0427 4
BOLT,6X16 92153 92153-0863 4
BOLT,SOCKET,10X30 92153A 92153-1524 2
WASHER,STEERING STEM 92200 92200-0517 1
FRAME-COMP,RR,F.S.BLACK 32160 32160-0181-18R 1 CNUS
FRAME-COMP,RR,F.S.BLACK 32160B 32160-0190-18R 1 CA
FRAME-COMP,MAIN,F.S.BLACK 32160D 32160-0274-18R 1 CNUS
FRAME-COMP,MAIN,F.S.BLACK 32160F 32160-0275-18R 1 CA
