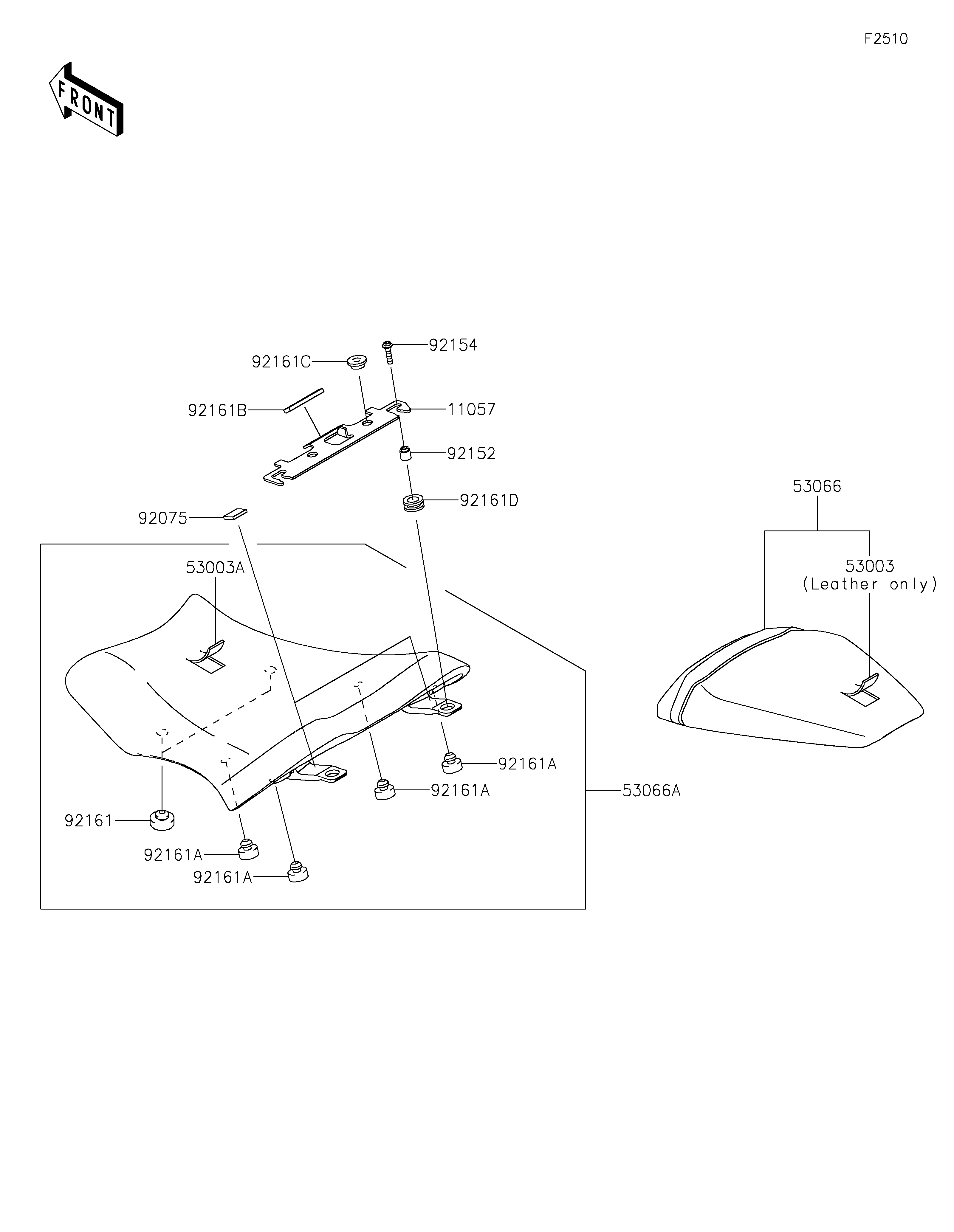

2021 Ninja® ZX™-10R ABS KRT Edition - Seat

DOWNLOAD PDF
SELECT A NEW PART
11057
53003
53003A
53066
53066A
92075
92152
92154
92161
92161A
92161A
92161A
92161A
92161B
92161C
92161D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT 11057 11057-7381 1
LEATHER,RR SEAT,BLACK 53003 53003-0420-MA 1
LEATHER,FR SEAT,BLACK 53003A 53003-0535-MA 1
SEAT-ASSY,RR,BLACK/BLACK 53066 53066-0506-12Y 1
SEAT-ASSY,FR,BLACK 53066A 53066-0700-MA 1
DAMPER,IGNITION 92075 92075-1982 2
COLLAR 92152 92152-2816 2
BOLT,SOCKET,5X20 92154 92154-4257 2
DAMPER,SEAT,10X25X8 92161 92161-0095 2
DAMPER,8X20X8 92161A 92161-0223 4
DAMPER,10X50X4 92161B 92161-1834 1
DAMPER,6X20X7.5 92161C 92161-1937 2
DAMPER 92161D 92161-2403 2
