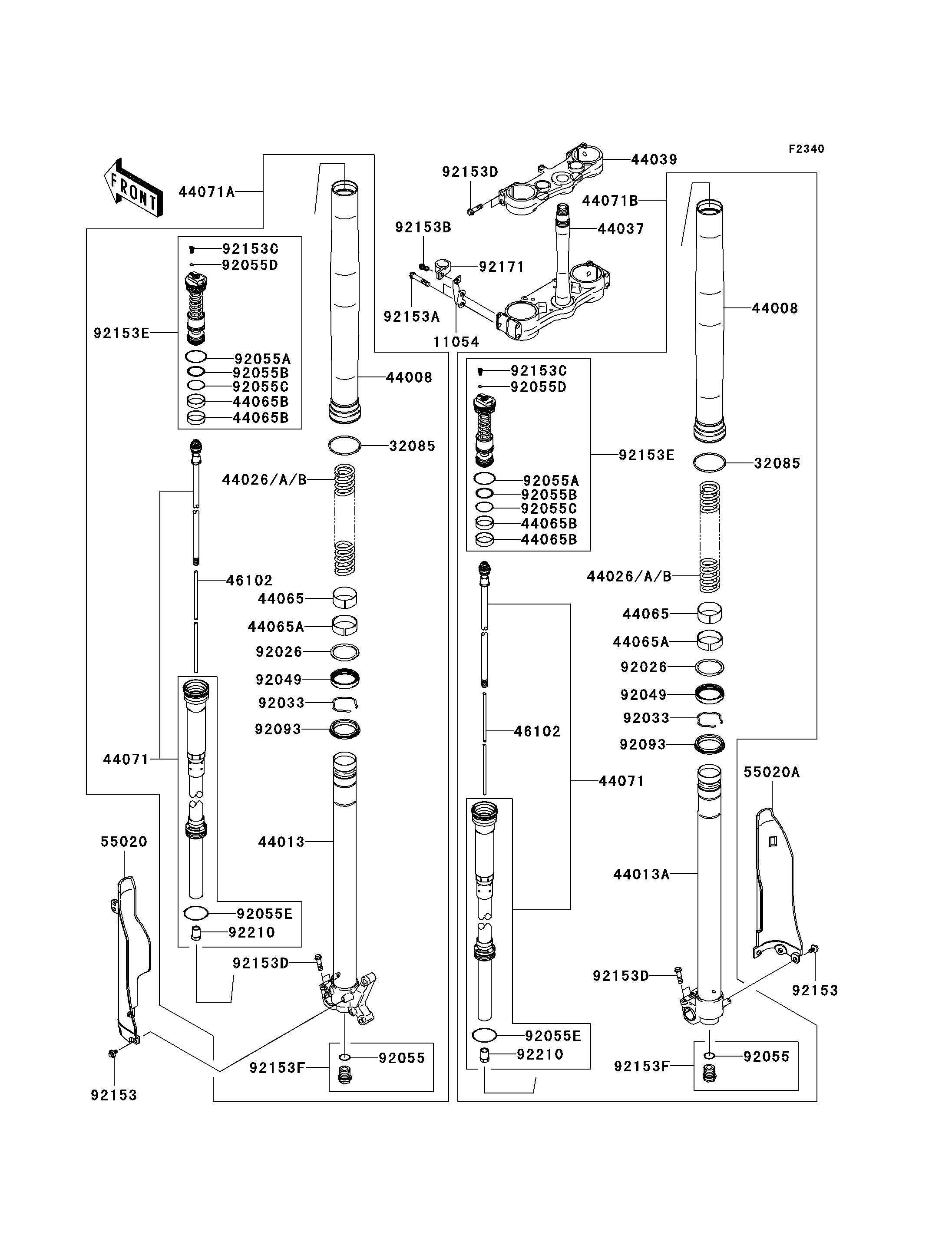

2007 KX250F - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11054
32085
32085
44008
44008
44013
44013A
44026
44026
44026A
44026A
44026B
44026B
44037
44039
44065
44065
44065A
44065A
44065B
44065B
44065B
44065B
44071
44071
44071A
44071B
46102
46102
55020
55020A
92026
92026
92033
92033
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055D
92055D
92055E
92055E
92093
92093
92153
92153
92153A
92153B
92153C
92153C
92153D
92153D
92153D
92153E
92153E
92153F
92153F
92171
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11054 11054-0111 1
STOPPER,RING 32085 32085-0073 2
PIPE-FORK OUTER,GOLD 44008 44008-0029-828 2
PIPE-FORK INNER,LH 44013 44013-0040 1
PIPE-FORK INNER,RH 44013A 44013-0041 1
SPRING-FRONT FORK,K=4.2N/MM 44026 44026-0075 2 (OPTION)
SPRING-FRONT FORK,K=4.4N/MM 44026A 44026-0076 2
SPRING-FRONT FORK,K=4.6N/MM 44026B 44026-0077 2 (OPTION)
HOLDER-FORK UNDER,M.M.GOLD 44037 44037-0034-10Y 1
HOLDER-FORK UPPER,M.M.GOLD 44039 44039-0036-10Y 1
BUSHING-FRONT FORK,SLIDE 44065 44065-0016 2
BUSHING-FRONT FORK,GUIDE 44065A 44065-0017 2
BUSHING-FRONT FORK,SLIDE 44065B 44065-0018 4
DAMPER-ASSY,FORK 44071 44071-0382 2
DAMPER-ASSY,FORK,LH 44071A 44071-5015 1
DAMPER-ASSY,FORK,RH 44071B 44071-5016 1
ROD,PUSH 46102 46102-0075 2
GUARD,FORK,LH,WHITE 55020 55020-0172-RZ 1
GUARD,FORK,RH,WHITE 55020A 55020-0173-RZ 1
SPACER,SEAL 92026 92026-0089 2
RING-SNAP 92033 92033-0039 2
SEAL-OIL 92049 92049-0074 2
RING-O,CENTER BOLT 92055 92055-0090 2
RING-O 92055A 92055-0091 2
RING-O 92055B 92055-0092 2
RING-O 92055C 92055-0093 2
RING-O 92055D 92055-0094 2
RING-O 92055E 92055-0095 2
SEAL,DUST 92093 92093-0059 2
BOLT,FLANGED,6X14 92153 92153-0936 6
BOLT,FLANGED,8X45 92153A 92153-0990 4
BOLT,FLANGED 92153B 92153-1397 1
BOLT,PLUG 92153C 92153-1398 2
BOLT,FLANGED,8X40 92153D 92153-1399 8
BOLT,FORK,GOLD 92153E 92153-1701-10J 2
BOLT,CENTER 92153F 92153-1778 2
CLAMP,BRAKE HOSE 92171 92171-0506 1
NUT,LOCK 92210 92210-0268 2
