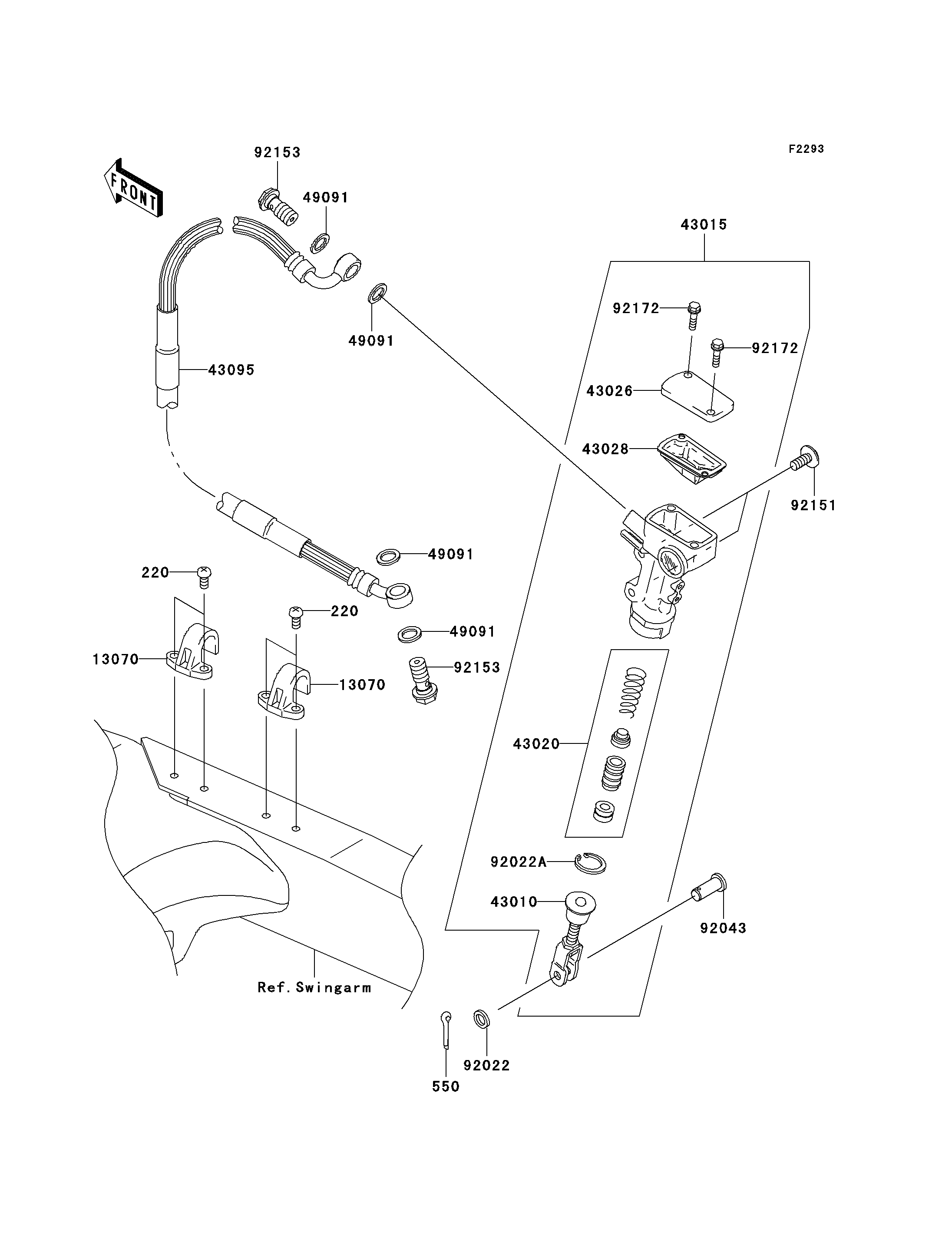

Parts Diagrams |
220
220
550
13070
13070
43010
43015
43020
43026
43028
43095
49091
49091
49091
49091
92022
92022A
92043
92151
92153
92153
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PAN-CROS,5X10 | 220 | 220B0510 | 4 | ||
| PIN-COTTER,2.0X15 | 550 | 550D2015 | 1 | ||
| GUIDE,BRAKE HOSE | 13070 | 13070-0048 | 2 | ||
| ROD-ASSY-BRAKE | 43010 | 43010-1087 | 1 | ||
| CYLINDER-ASSY-MASTER,RR | 43015 | 43015-0004 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1094 | 1 | ||
| CAP-BRAKE | 43026 | 43026-1086 | 1 | ||
| DIAPHRAGM | 43028 | 43028-1092 | 1 | ||
| HOSE-BRAKE,RR | 43095 | 43095-0187 | 1 | ||
| WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 4 | ||
| WASHER,8.5X13X1 | 92022 | 92022-1028 | 1 | ||
| WASHER,CIRCRIP | 92022A | 92022-1601 | 1 | ||
| PIN | 92043 | 92043-0004 | 1 | ||
| BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 2 | ||
| BOLT,OIL,L=23 | 92153 | 92153-0627 | 2 | ||
| SCREW | 92172 | 92172-1064 | 2 |
| SCREW-PAN-CROS,5X10 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,2.0X15 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,BRAKE HOSE | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-BRAKE | |
| REF # | 43010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-ASSY-MASTER,RR | |
| REF # | 43015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-COMP-BRAKE | |
| REF # | 43020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-BRAKE | |
| REF # | 43026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM | |
| REF # | 43028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE,RR | |
| REF # | 43095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-SEAL,10.1X14.5X1.5 | |
| REF # | 49091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X13X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,CIRCRIP | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,OIL,L=23 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
