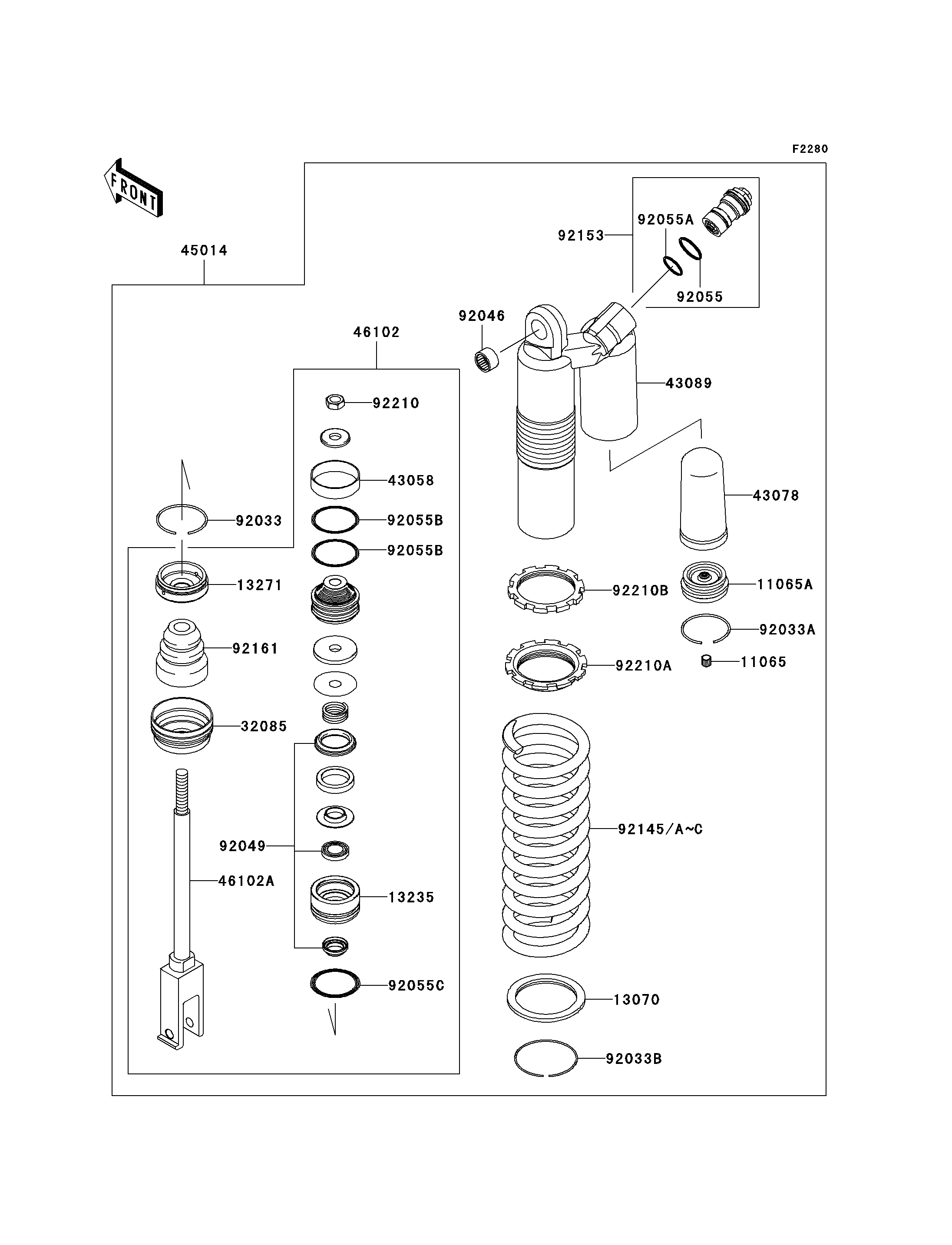

2007 KX250F - Shock Absorber(s)

DOWNLOAD PDF
SELECT A NEW PART
11065
11065A
13070
13235
13271
32085
43058
43078
43089
45014
46102
46102A
92033
92033A
92033B
92046
92049
92055
92055A
92055B
92055B
92055C
92145
92145A
92145B
92145C
92153
92161
92210
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,AIR VALVE 11065 11065-0145 1
CAP,CHAMBER 11065A 11065-0164 1
GUIDE,SPRING SEAT 13070 13070-0057 1
GUIDE-COMP,ROD 13235 13235-0001 1
PLATE,END 13271 13271-0858 1
STOPPER,SPRING SEAT 32085 32085-0077 1
RING,PISTON 43058 43058-0012 1
RESERVOIR 43078 43078-0030 1
CYLINDER-SHOCKABSORBER,GOLD 43089 43089-0012-829 1
SHOCKABSORBER 45014 45014-5028 1
ROD,PISTON 46102 46102-0087 1
ROD 46102A 46102-0088 1
RING-SNAP 92033 92033-0040 1
RING-SNAP 92033A 92033-0041 1
RING-SNAP 92033B 92033-0042 1
BEARING-NEEDLE,7E-HVS16X22X12 92046 92046-1301 1
SEAL-OIL 92049 92049-0075 1
RING-O,PLUG BOLT 92055 92055-0098 1
RING-O,PLUG BOLT 92055A 92055-0099 1
RING-O 92055B 92055-0100 2
RING-O 92055C 92055-0101 1
SPRING,REAR SHOCK,K=51N/MM,SIL 92145 92145-0463-8V 1
SPRING,REAR SHOCK,K=47N/MM,SIL 92145A 92145-0464-8V 1 (OPTION)
SPRING,REAR SHOCK,K=49N/MM,SIL 92145B 92145-0465-8V 1 (OPTION)
SPRING,REAR SHOCK,K=53N/MM,SIL 92145C 92145-0466-8V 1 (OPTION)
BOLT,PLUG 92153 92153-1702 1
DAMPER,STOPPER 92161 92161-0329 1
NUT,PISTON 92210 92210-0270 1
NUT,SPRING ADJUSTER 92210A 92210-0271 1
NUT,SPRING ADJUST NUT 92210B 92210-0272 1
