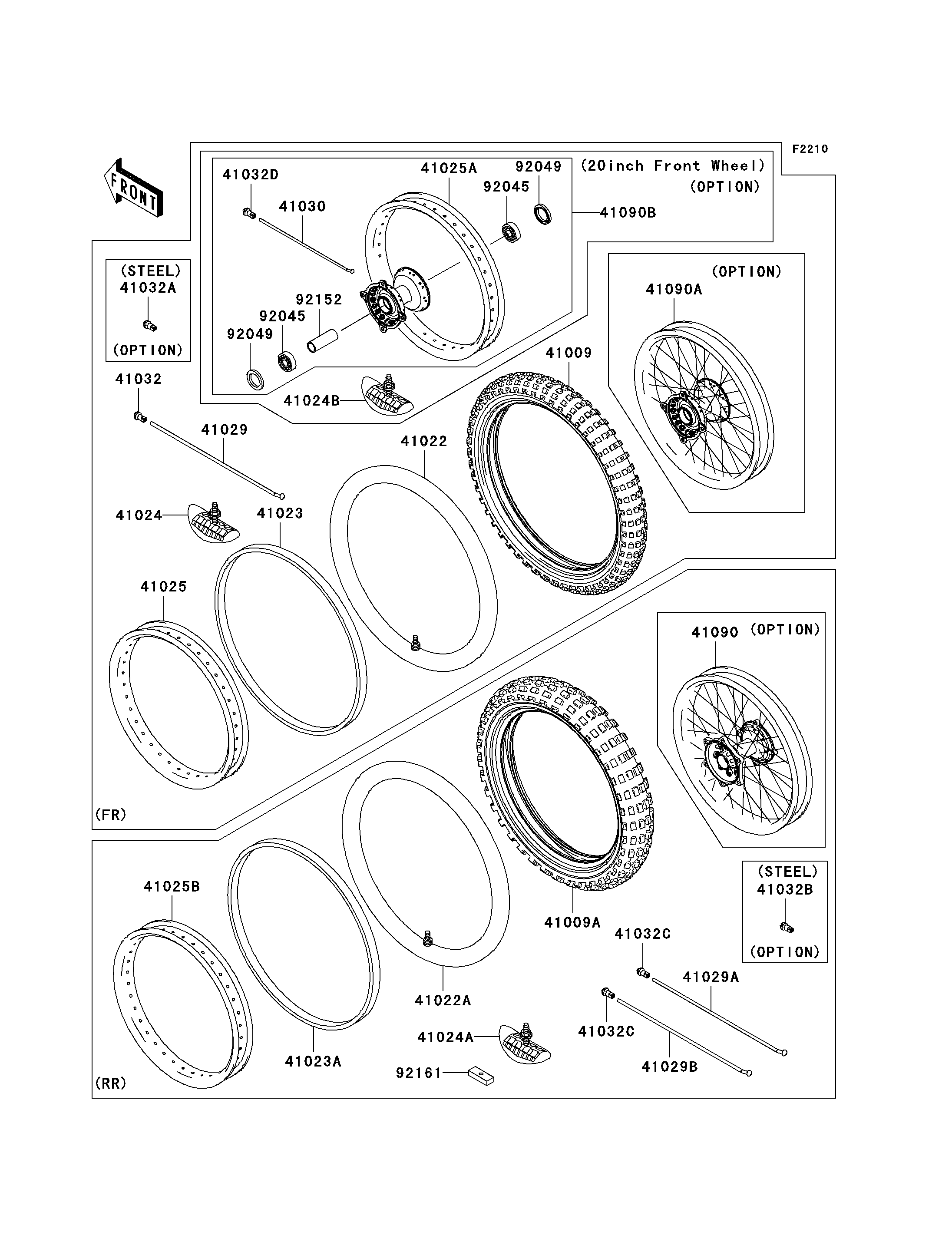

2007 KX250F - Wheels/Tires

DOWNLOAD PDF
SELECT A NEW PART
41009
41009A
41022
41022A
41023
41023A
41024
41024A
41024B
41025
41025A
41025B
41029
41029A
41029B
41030
41032
41032A
41032B
41032C
41032C
41032D
41090
41090A
41090B
92045
92045
92049
92049
92152
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,80/100-21 51M,M401(BS) 41009 41009-0064 1
TIRE,RR,100/90-19 57M,M402(BS) 41009A 41009-0076 1
TUBE-TIRE,MC90/90-21(BS) 41022 41022-1107 1
TUBE-TIRE,100/90-19(BS) 41022A 41022-1142 1
BAND-RIM,X-21(BS) 41023 41023-1009 1
BAND-RIM,110/90-19(BS) 41023A 41023-1081 1
STOPPER-RIM,1.60-M(DUNLOP) 41024 41024-010 1
STOPPER-RIM,1.85-M(DUNLOP) 41024A 41024-011 1
STOPPER-RIM,1.85-M(DUNLOP) 41024B 41024-011 1 (OPTION)
RIM,FR,1.60X21 41025 41025-0004 1
RIM,FR,1.85X20 41025A 41025-1411 1
RIM,RR,1.85X19 41025B 41025-1435 1
SPOKE-INNER,FR 41029 41029-0003 36
SPOKE-INNER,RR,202MMX160D 41029A 41029-1204 27
SPOKE-INNER,RR,204MMX159D 41029B 41029-1330 9
SPOKE-OUTER,FR,217.5MMX170D 41030 41030-1172 36 (OPTION)
NIPPLE-SPOKE,ALUMINIUM 41032 41032-0002 36
NIPPLE-SPOKE,8X9X20(+) 41032A 41032-1077 36 (OPTION)
NIPPLE-SPOKE,STEEL 41032B 41032-1085 36 (OPTION)
NIPPLE-SPOKE,ALUMINIUM 41032C 41032-1086 36
NIPPLE-SPOKE,ALUMINIUM 41032D 41032-1086 36 (OPTION)
WHEEL,RR,1.85X19,AL NIPPLE,GLD 41090 41090-0033-10Y 1 (OPTION)
WHEEL,FR,1.60X21,AL NIPPLE,GLD 41090A 41090-0035-10Y 1 (OPTION)
WHEEL,FR,1.85X20,ALUM NIPPLE 41090B 41090-1154 1 (OPTION)
BEARING-BALL,69042RS 92045 92045-1284 2 (OPTION)
SEAL-OIL,BJNC-2 25X37X5 92049 92049-1403 2 (OPTION)
COLLAR,FRONT BRAKE DRUM,L=72 92152 92152-1472 1 (OPTION)
DAMPER,RIM STOPPER 92161 92161-1184 1
