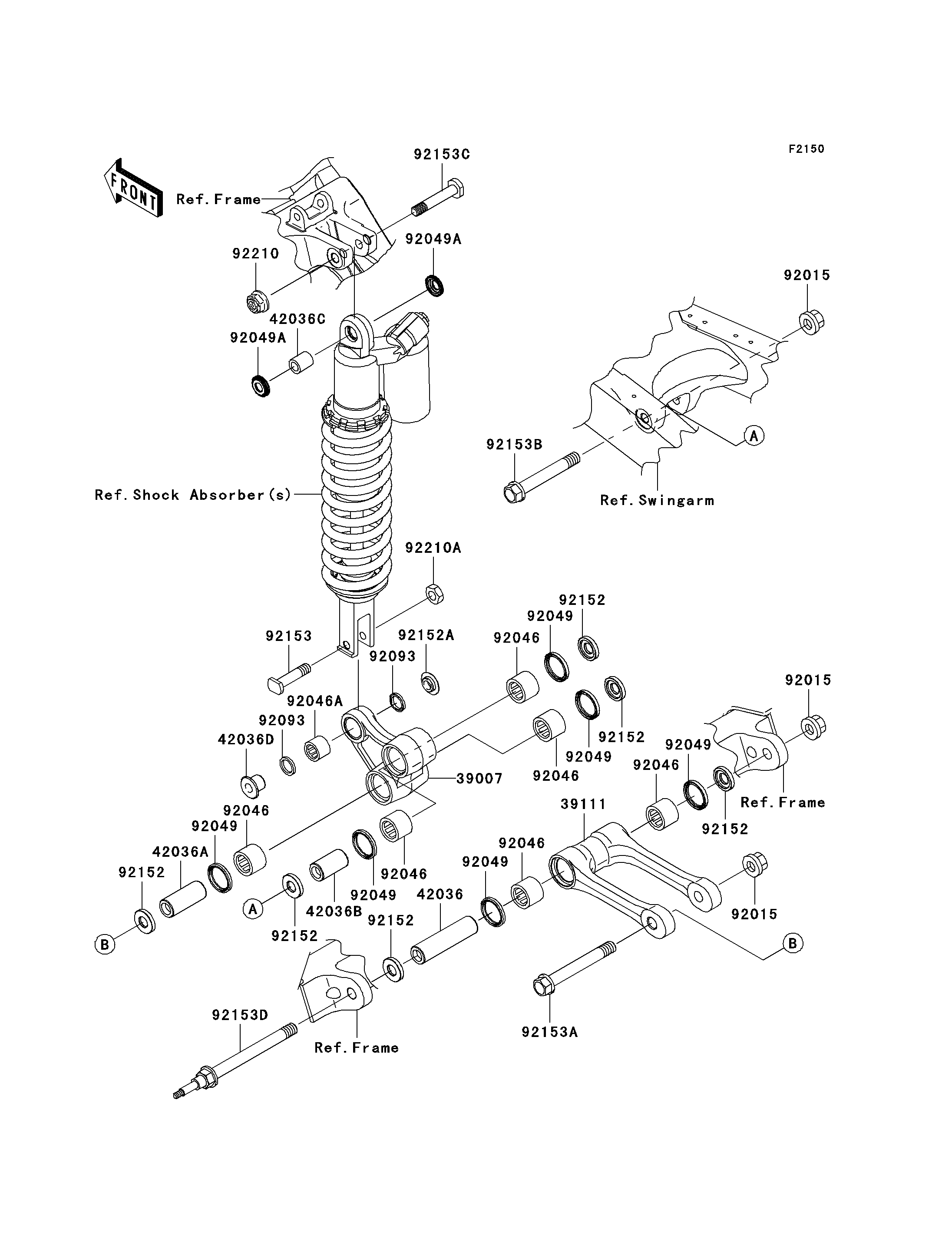

2007 KX250F - Rear Suspension

DOWNLOAD PDF
SELECT A NEW PART
39007
39111
42036
42036A
42036B
42036C
42036D
92015
92015
92015
92046
92046
92046
92046
92046
92046
92046A
92049
92049
92049
92049
92049
92049
92049A
92049A
92093
92093
92152
92152
92152
92152
92152
92152
92152A
92153
92153A
92153B
92153C
92153D
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-0057 1
ROD-TIE,SUSPENSION 39111 39111-0022 1
SLEEVE,ROD,L=78.4 42036 42036-0020 1
SLEEVE,SUSPENSION ARM,L=49 42036A 42036-0021 1
SLEEVE,SUSPENSION ARM,L=37 42036B 42036-0022 1
SLEEVE,10X16X19.3 42036C 42036-0030 1
SLEEVE 42036D 42036-1351 1
NUT,LOCK,FLANGED,12MM 92015 92015-1433 3
BEARING-NEEDLE,F-2016 92046 92046-1151 6
BEARING-NEEDLE,7E-HVS16X22X12 92046A 92046-1301 1
SEAL-OIL,SDO26X32X4 92049 92049-0063 6
SEAL-OIL 92049A 92049-0069 2
SEAL 92093 92093-1436 2
COLLAR 92152 92152-0425 6
COLLAR 92152A 92152-1139 1
BOLT,10X45 92153 92153-0937 1
BOLT,FLANGED,12X95 92153A 92153-0938 1
BOLT,FLANGED,12X86 92153B 92153-0939 1
BOLT,10X58 92153C 92153-1386 1
BOLT,12MM,L=122 92153D 92153-1643 1
NUT,LOCK,FLANGED,10MM 92210 92210-1080 1
NUT,LOCK,10MM 92210A 92210-1184 1
