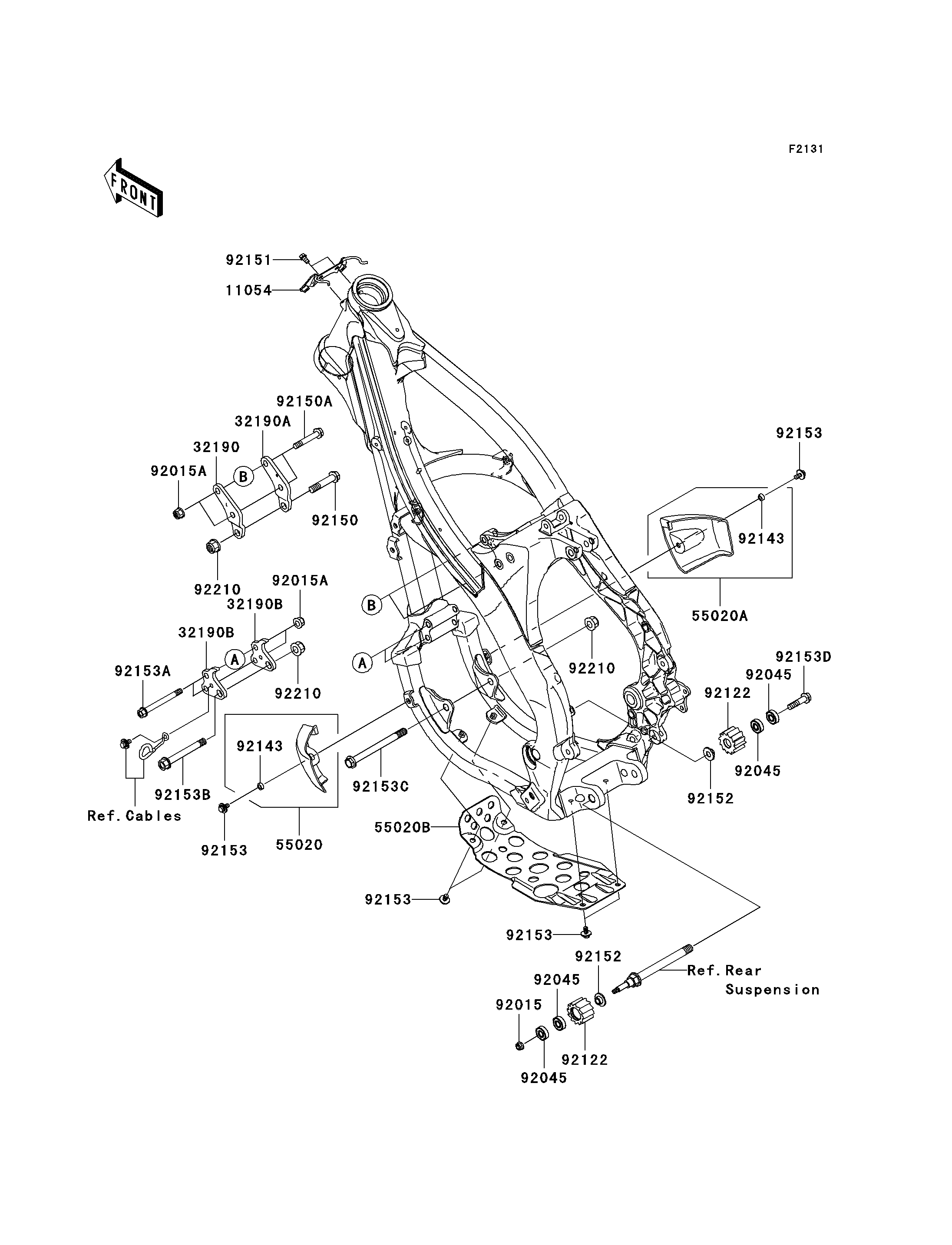

2007 KX250F - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11054
32190
32190A
32190B
32190B
55020
55020A
55020B
92015
92015A
92015A
92045
92045
92045
92045
92122
92122
92143
92143
92150
92150A
92151
92152
92152
92153
92153
92153
92153
92153A
92153B
92153C
92153D
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,IGNITER 11054 11054-0241 1
BRACKET-ENGINE,UPP,LH 32190 32190-0172 1
BRACKET-ENGINE,UPP,RH 32190A 32190-0173 1
BRACKET-ENGINE,FR 32190B 32190-0231 2
GUARD,ENGINE,FR,LH 55020 55020-0175 1
GUARD,ENGINE,FR,RH 55020A 55020-0176 1
GUARD,ENGINE,LWR 55020B 55020-0257 1
NUT,LOCK,FLANGED,6MM 92015 92015-1339 1
NUT,8MM 92015A 92015-1432 4
BEARING-BALL,608LLU/2A 92045 92045-0060 4
ROLLER,CHAIN GUIDE 92122 92122-0016 2
COLLAR 92143 92143-1307 2
BOLT,FLANGED,10X49 92150 92150-1170 1
BOLT,FLANGED,8X50 92150A 92150-1214 2
BOLT,FLANGED,6X10 92151 92151-1233 2
COLLAR 92152 92152-0459 2
BOLT,6X12 92153 92153-0503 6
BOLT,FLANGED,8X82 92153A 92153-0994 2
BOLT,FLANGED,10X84 92153B 92153-0997 1
BOLT,FLANGED,10X120 92153C 92153-1359 1
BOLT,FLANGED,8X35 92153D 92153-1652 1
NUT,LOCK,FLANGED,10MM 92210 92210-1080 3
