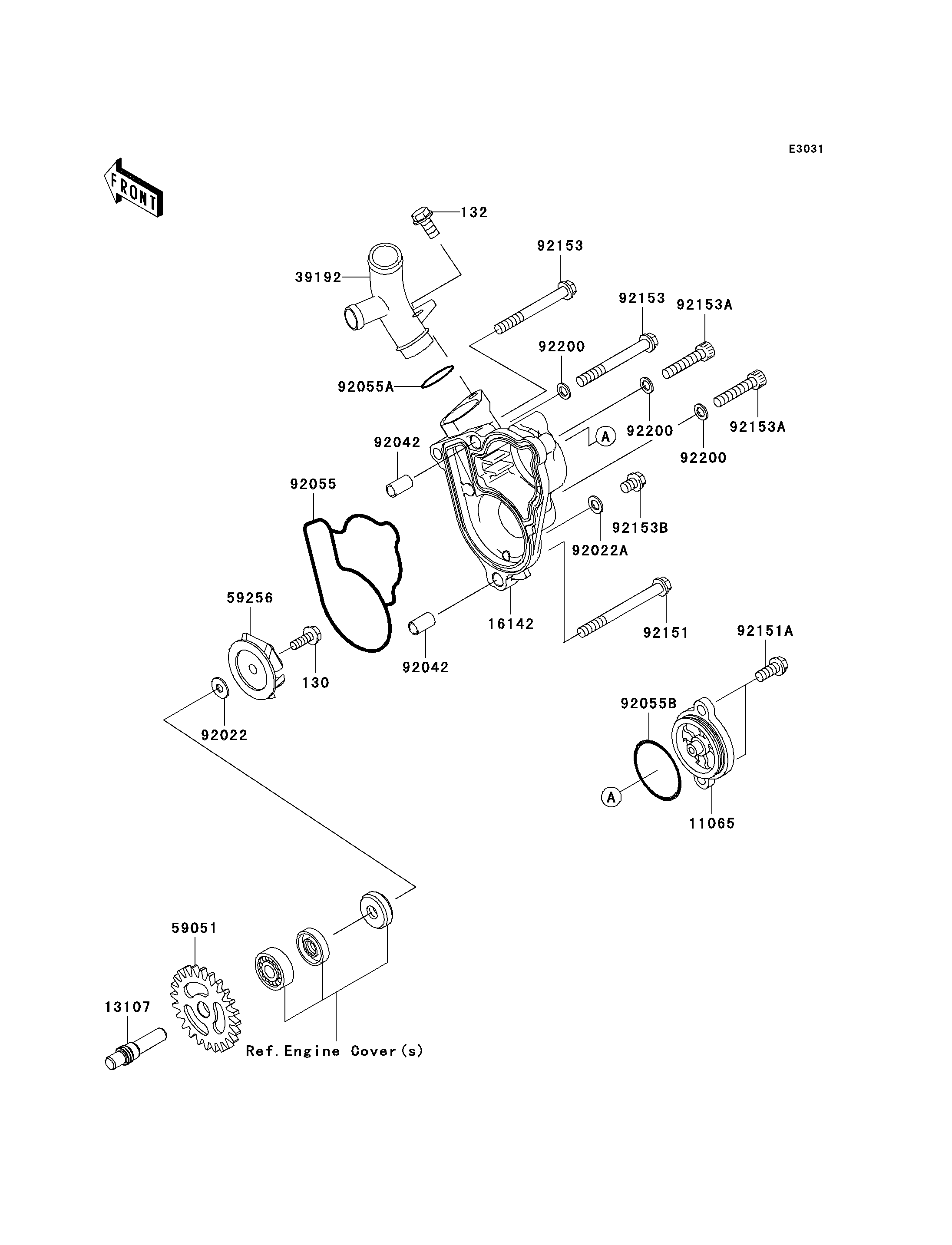

2007 KX250F - Water Pump

DOWNLOAD PDF
SELECT A NEW PART
130
132
11065
13107
16142
39192
59051
59256
92022
92022A
92042
92042
92055
92055A
92055B
92151
92151A
92153
92153
92153A
92153A
92153B
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X14 130 130Z0514 1
BOLT-FLANGED-SMALL,6X12 132 132L0612 1
CAP 11065 11065-0087 1
SHAFT,WATER PUMP 13107 13107-0130 1
COVER-PUMP,WATER 16142 16142-0020 1
PIPE-WATER 39192 39192-0037 1
GEAR-SPUR,WATER PUMP 59051 59051-0061 1
IMPELLER 59256 59256-1065 1
WASHER,5.2X13X1 92022 92022-1380 1
WASHER,6.2X11X1 92022A 92022-304 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
RING-O,WATER PUMP 92055 92055-0010 1
RING-O,18.8X2.4 92055A 92055-1308 1
RING-O,35.2X1.9 92055B 92055-520 1
BOLT,6X65 92151 92151-1199 1
BOLT,6X14 92151A 92151-1423 2
BOLT,6X55 92153 92153-0696 2
BOLT,6X30 92153A 92153-0844 2
BOLT,6X8 92153B 92153-0860 1
WASHER,6.1X10.0X1.0 92200 92200-0190 3
