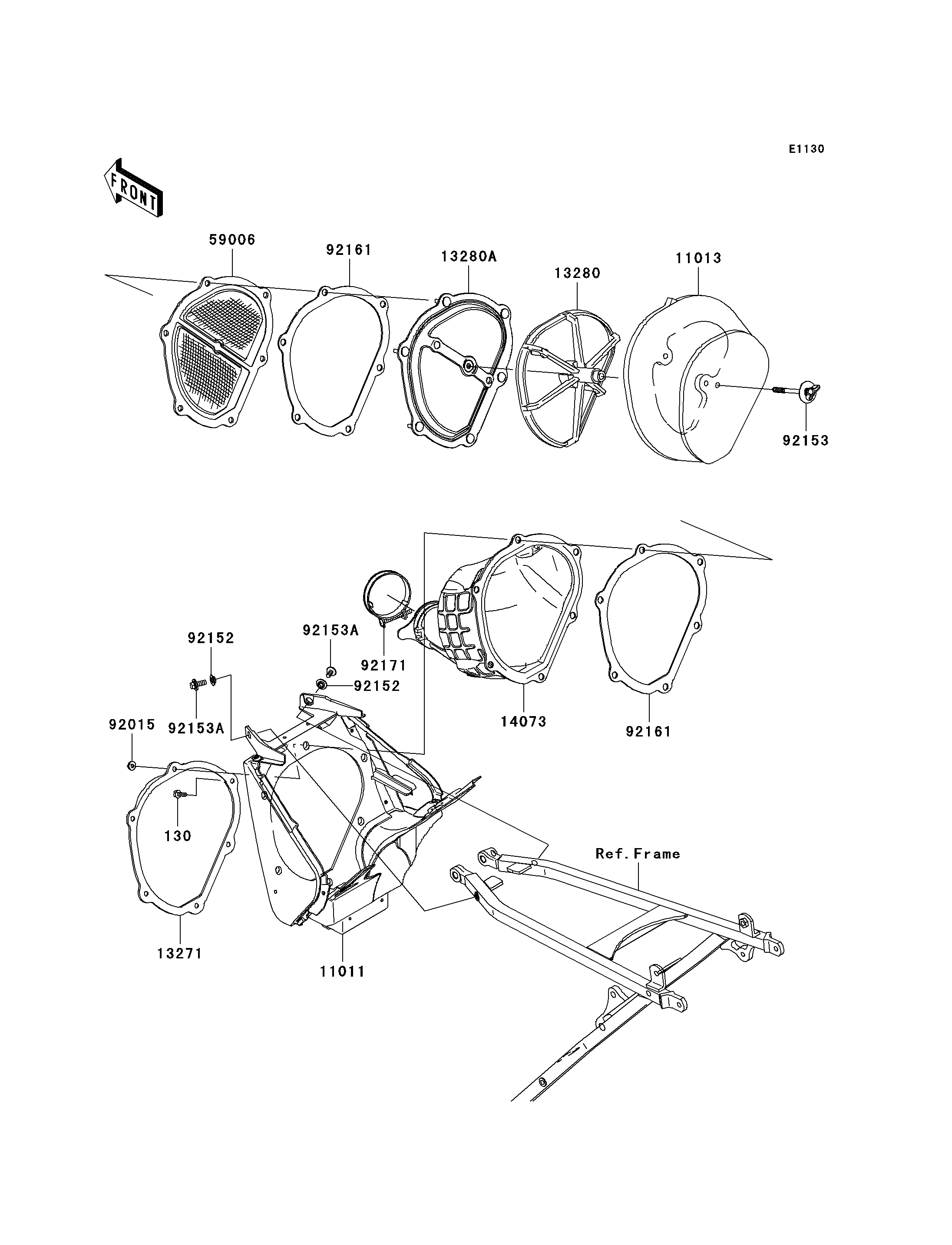

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
11011
11013
13271
13280
13280A
14073
59006
92015
92152
92152
92153
92153A
92153A
92161
92161
92171
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,5X12 | 130 | 130G0512 | 1 | ||
| CASE-AIR FILTER,F.BLACK | 11011 | 11011-0055-6Z | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-0011 | 1 | ||
| PLATE,DUCT FITTING | 13271 | 13271-0730 | 1 | ||
| HOLDER,ELEMENT | 13280 | 13280-0108 | 1 | ||
| HOLDER | 13280A | 13280-0170 | 1 | ||
| DUCT,FUNNEL | 14073 | 14073-0139 | 1 | ||
| ARRESTER-FLAME | 59006 | 59006-0011 | 1 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1259 | 5 | ||
| COLLAR | 92152 | 92152-0275 | 2 | ||
| BOLT,6X75 | 92153 | 92153-0623 | 1 | ||
| BOLT,6X16 | 92153A | 92153-0863 | 2 | ||
| DAMPER | 92161 | 92161-0213 | 2 | ||
| CLAMP,CARBURETOR,DUCT | 92171 | 92171-0651 | 1 |
