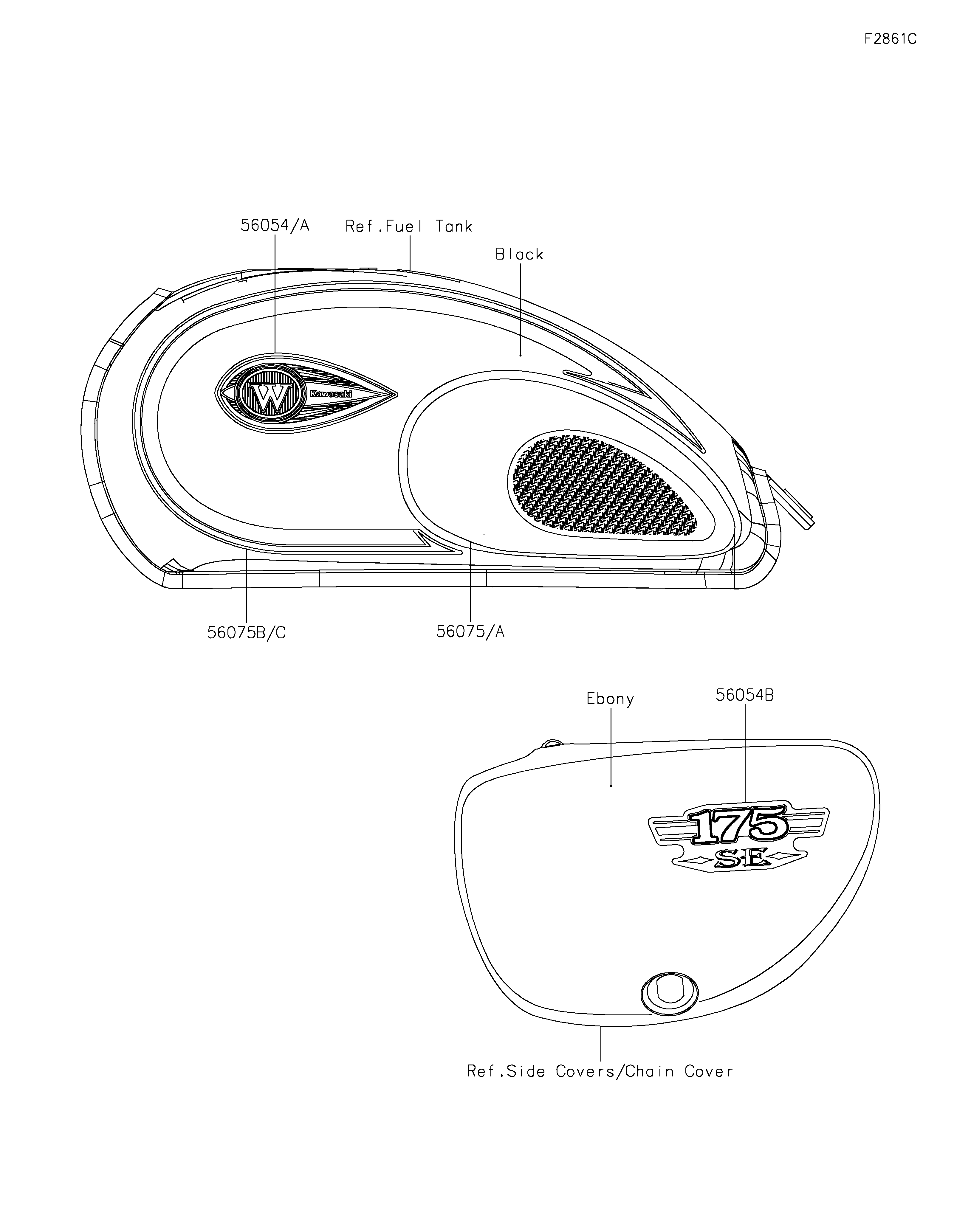

2018 W175 SE (Indonesia Only) - Decals(Black)(AJFA)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LH,W EMBLEM | 56054 | 56054-2371 | 1 | ||
| MARK,FUEL TANK,RH,W EMBLEM | 56054A | 56054-2372 | 1 | ||
| MARK,SIDE COVER,175 SE | 56054B | 56054-2403 | 2 | ||
| PATTERN,TANK PAD,LH | 56075 | 56075-4051 | 1 | ||
| PATTERN,TANK PAD,RH | 56075A | 56075-4052 | 1 | ||
| PATTERN,FUEL TANK,LH | 56075B | 56075-4241 | 1 | ||
| PATTERN,FUEL TANK,RH | 56075C | 56075-4242 | 1 |
| MARK,FUEL TANK,LH,W EMBLEM | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,RH,W EMBLEM | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,175 SE | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK PAD,LH | |
| REF # | 56075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK PAD,RH | |
| REF # | 56075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
