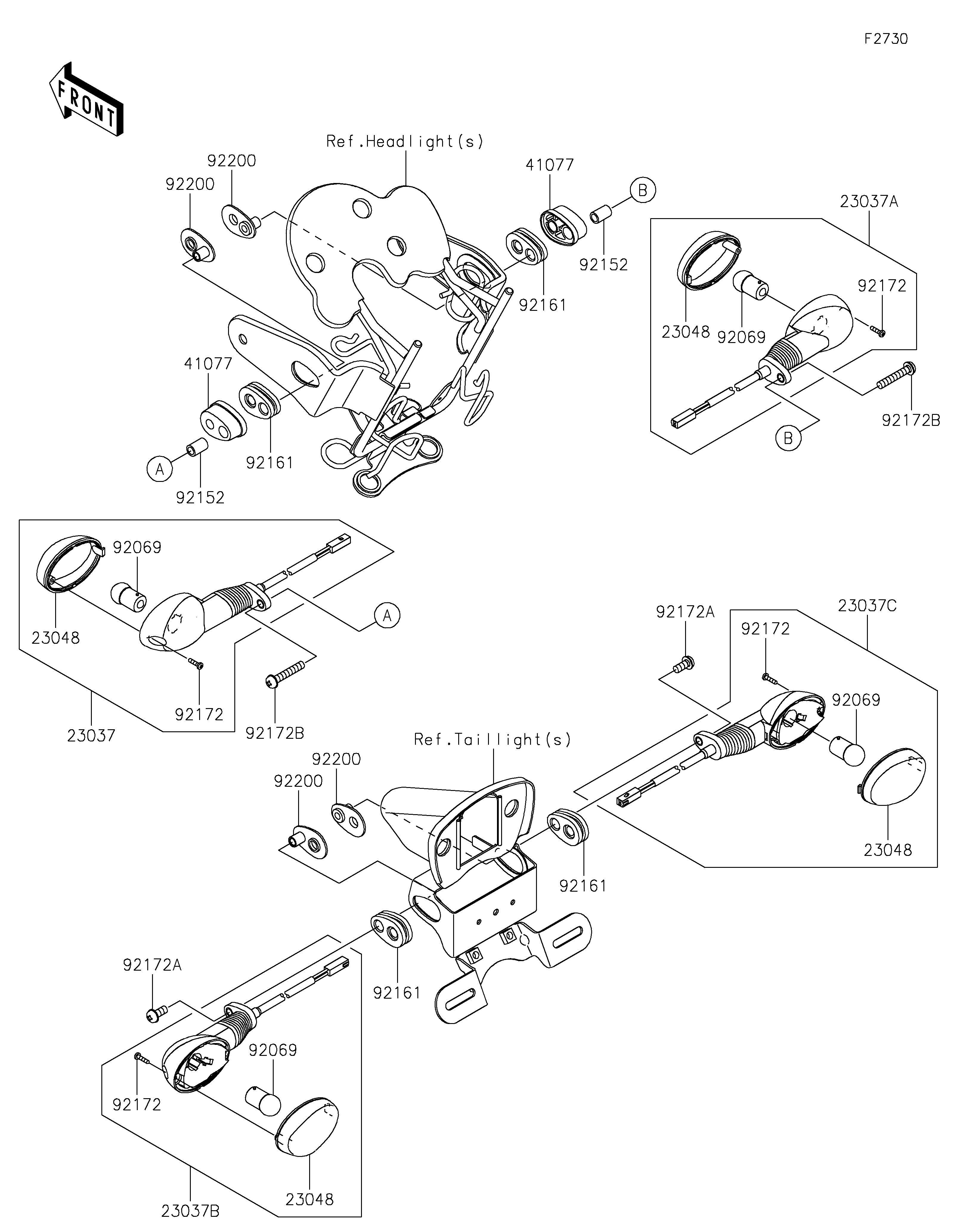

2018 W175 (Indonesia Only) - Turn Signals
23037
23037A
23037B
23037C
23048
23048
23048
23048
41077
41077
92069
92069
92069
92069
92152
92152
92161
92161
92161
92161
92172
92172
92172
92172
92172A
92172A
92172B
92172B
92200
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LAMP-ASSY-SIGNAL,FR,LH | 23037 | 23037-0368 | 1 | ||
| LAMP-ASSY-SIGNAL,FR,RH | 23037A | 23037-0369 | 1 | ||
| LAMP-ASSY-SIGNAL,RR,LH | 23037B | 23037-0370 | 1 | ||
| LAMP-ASSY-SIGNAL,RR,RH | 23037C | 23037-0371 | 1 | ||
| LENS-SIGNAL LAMP | 23048 | 23048-0033 | 4 | ||
| ADAPTER | 41077 | 41077-0717 | 2 | ||
| BULB,12V 10W | 92069 | 92069-0003 | 4 | ||
| COLLAR,6.8X10X15.2 | 92152 | 92152-2150 | 2 | ||
| DAMPER,SIGNAL LAMP | 92161 | 92161-0828 | 4 | ||
| SCREW,TAPPING,2.9X13 | 92172 | 92172-0343 | 4 | ||
| SCREW,6X14 | 92172A | 92172-0497 | 2 | ||
| SCREW,6X35 | 92172B | 92172-0918 | 2 | ||
| WASHER | 92200 | 92200-1972 | 4 |
