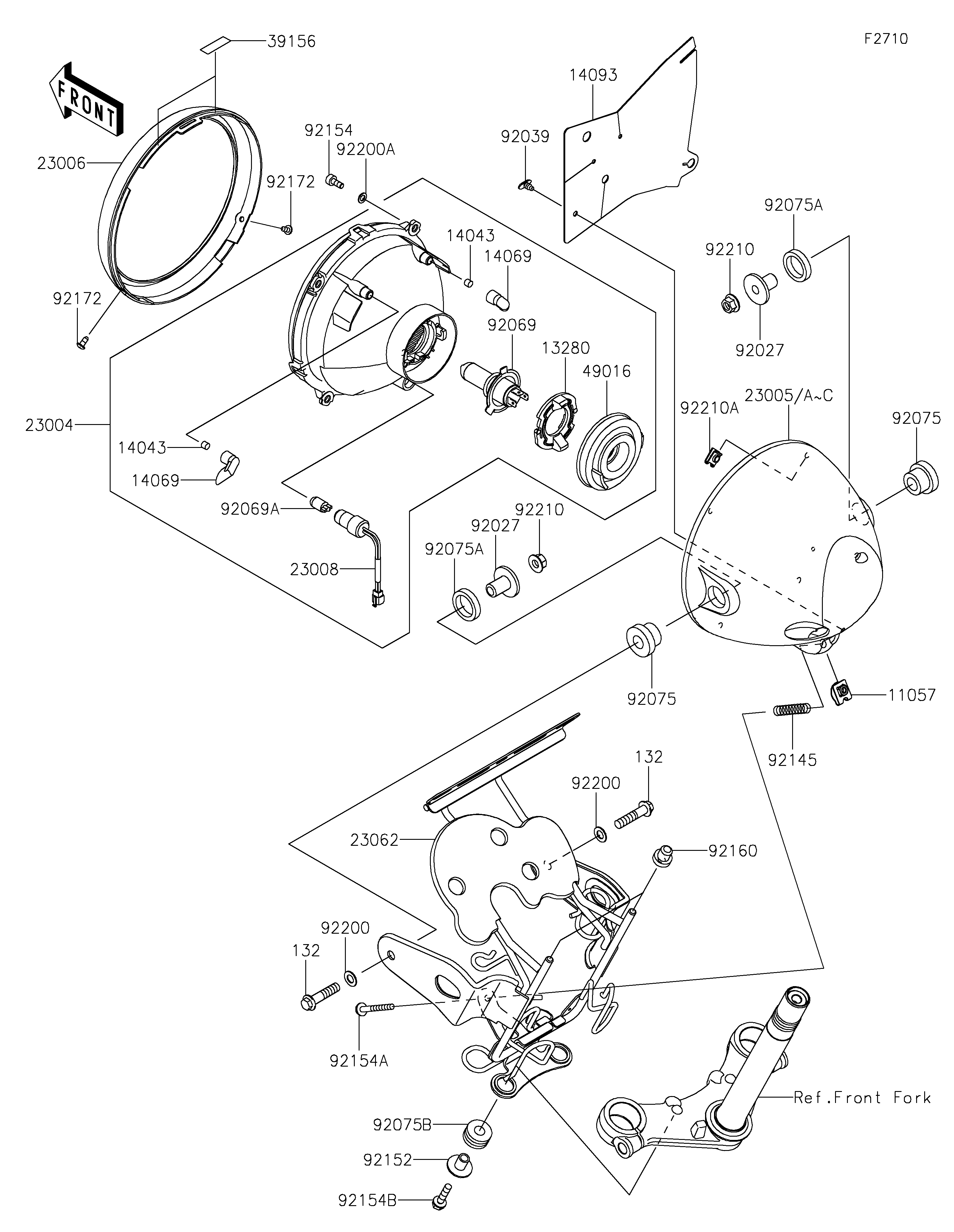

2018 W175 (Indonesia Only) - Headlight(s)(AJF/AJFA)

DOWNLOAD PDF
SELECT A NEW PART
11057
13280
14043
14043
14069
14069
14093
23004
23005B
23006
23008
23062
39156
49016
92027
92027
92039
92069
92069A
92075
92075
92075A
92075A
92075B
92145
92152
92154
92154A
92154B
92160
92172
92172
92200
92200
92200A
92210
92210
92210A
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-1065 1
HOLDER 13280 13280-0902 1
FILTER 14043 14043-0020 2
BREATHER 14069 14069-0031 2
COVER 14093 14093-0754 1
LAMP-HEAD 23004 23004-0376 1
BODY-COMP-HEAD LAMP,EBONY 23005B 23005-0050-6C 1
RIM-LAMP 23006 23006-0020 1
SOCKET-ASSY,POSITION 23008 23008-0188 1
BRACKET-COMP,LICENSE PLATE 23062 23062-1171 1
PAD,30X10X0.21 39156 39156-2352 2
COVER-SEAL 49016 49016-0649 1
COLLAR,L=20 92027 92027-1131 2
RIVET 92039 92039-0792 1
BULB,12V 60/55W,H4 92069 92069-0097 1
BULB,12V 5W 92069A 92069-0098 1
DAMPER,HEAD LAMP FITTING 92075 92075-1109 2
DAMPER,HEAD LAMP FITTING 92075A 92075-1110 2
DAMPER,10X24X12 92075B 92075-1690 2
SPRING 92145 92145-1788 1
COLLAR 92152 92152-0697 2
BOLT,SOCKET,5X14 92154 92154-2772 4
BOLT,FLANGED,5X45 92154A 92154-2773 1
BOLT,FLANGED,6X25 92154B 92154-2774 2
DAMPER 92160 92160-1303 2
SCREW,CROS,4X9.5 92172 92172-1208 2
WASHER,8.2X15X1 92200 92200-0742 2
WASHER,5.8X10X0.8 92200A 92200-1983 4
NUT,8MM 92210 92210-0773 2
NUT,CLIP,5MM 92210A 92210-1666 4
BOLT-FLANGED-SMALL,8X35 132 132BA0835 2
