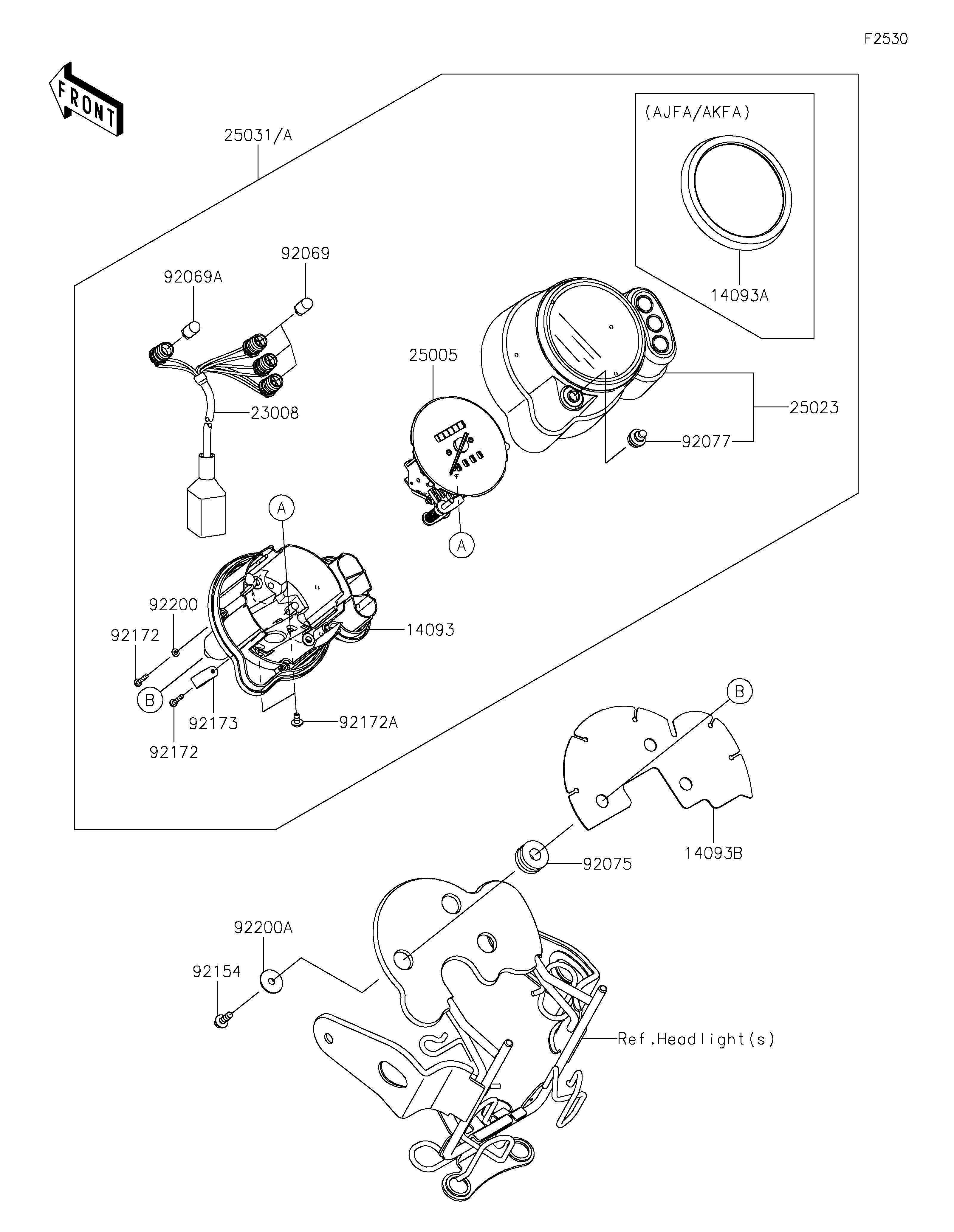

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
14093
14093B
23008
25005
25023
25031
92069
92069A
92075
92077
92154
92172
92172
92172A
92173
92200
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,METER CASE,LWR | 14093 | 14093-0636 | 1 | ||
| COVER,METER | 14093B | 14093-0724 | 1 | ||
| SOCKET-ASSY | 23008 | 23008-0186 | 1 | ||
| SPEEDOMETER | 25005 | 25005-0168 | 1 | ||
| COVER-METER CASE,UPP | 25023 | 25023-0131 | 1 | ||
| METER-ASSY,KPH | 25031 | 25031-0759 | 1 | ||
| BULB,12V 3.4W | 92069 | 92069-0096 | 3 | ||
| BULB,12V 1.7W | 92069A | 92069-0099 | 1 | ||
| DAMPER,10X24X12 | 92075 | 92075-1690 | 3 | ||
| KNOB,TRIP RESET | 92077 | 92077-0010 | 1 | ||
| BOLT,FLANGED,5X14 | 92154 | 92154-3749 | 3 | ||
| SCREW,3X14 | 92172 | 92172-1205 | 7 | ||
| SCREW | 92172A | 92172-1206 | 2 | ||
| CLAMP | 92173 | 92173-1769 | 1 | ||
| WASHER | 92200 | 92200-1912 | 6 | ||
| WASHER,5.5X20X1.2 | 92200A | 92200-1973 | 3 |
| COVER,METER CASE,LWR | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,METER | |
| REF # | 14093B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPEEDOMETER | |
| REF # | 25005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-METER CASE,UPP | |
| REF # | 25023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER-ASSY,KPH | |
| REF # | 25031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 3.4W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 1.7W | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X24X12 | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| KNOB,TRIP RESET | |
| REF # | 92077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,5X14 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW,3X14 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.5X20X1.2 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
