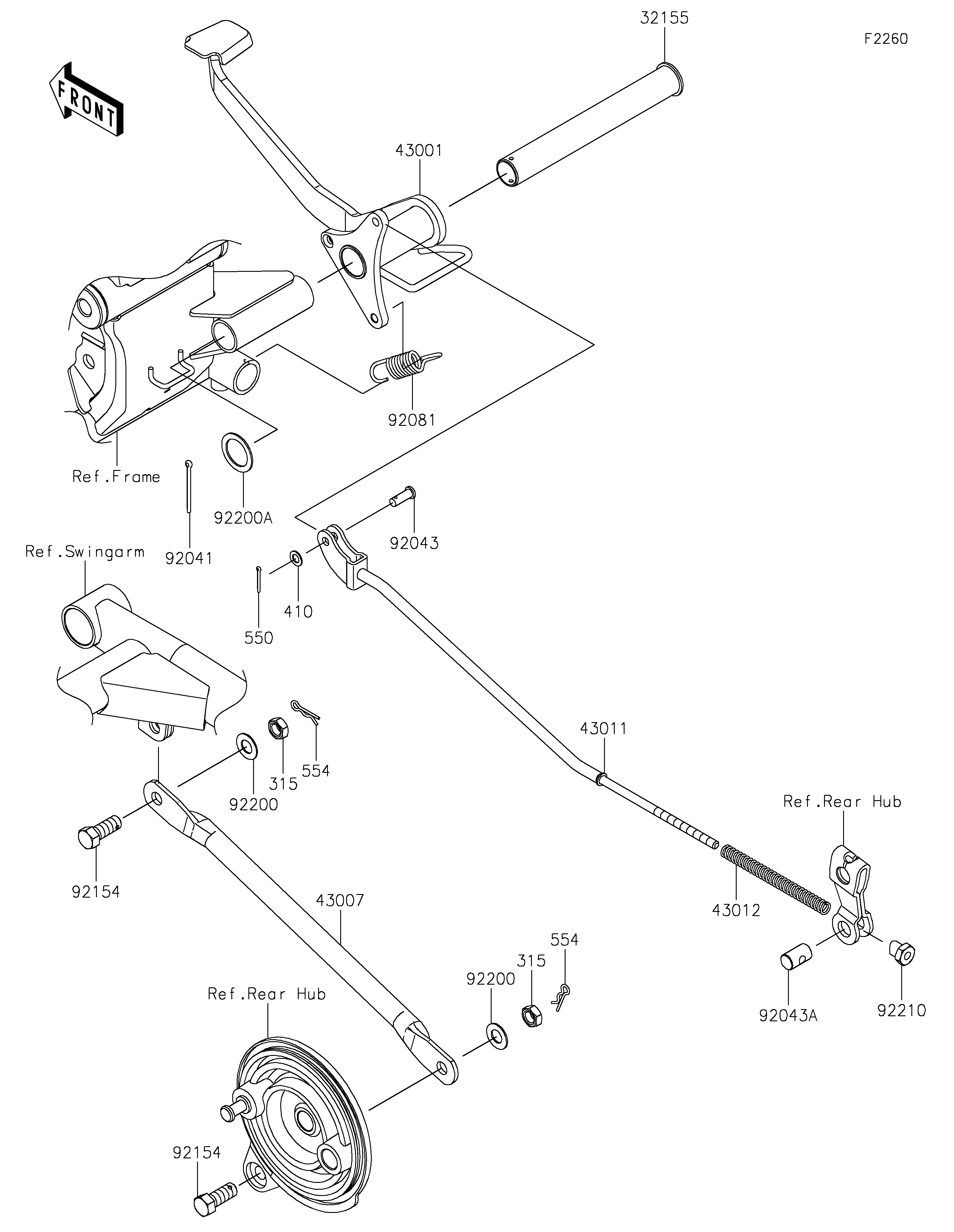

2018 W175 (Indonesia Only) - Brake Pedal

DOWNLOAD PDF
SELECT A NEW PART
32155
43001
43007
43011
43012
92041
92043
92043A
92081
92154
92154
92200
92200
92200A
92210
315
315
410
550
554
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIPE 32155 32155-2929 1
LEVER-BRAKE 43001 43001-0762 1
ROD-TORQUE 43007 43007-0021 1
ROD-BRAKE 43011 43011-0020 1
SPRING,BRAKE ROD 43012 43012-001 1
COTTER,3X35 92041 92041-0010 1
PIN,6X17 92043 92043-064 1
PIN,12X20 92043A 92043-0930 1
SPRING,BRAKE PEDAL 92081 92081-1313 1
BOLT,10X25 92154 92154-0767 2
WASHER,10.5X20X1.0 92200 92200-0870 2
WASHER,21.5X30X1.2 92200A 92200-1908 1
NUT,6MM 92210 92210-1581 1
NUT-HEX-FINE,10MM 315 315AA1000 2
WASHER-PLAIN-SMALL 410 410AA0600 1
PIN-COTTER,2.0X15 550 550AA2015 1
PIN-SNAP 554 554DA0800 2
