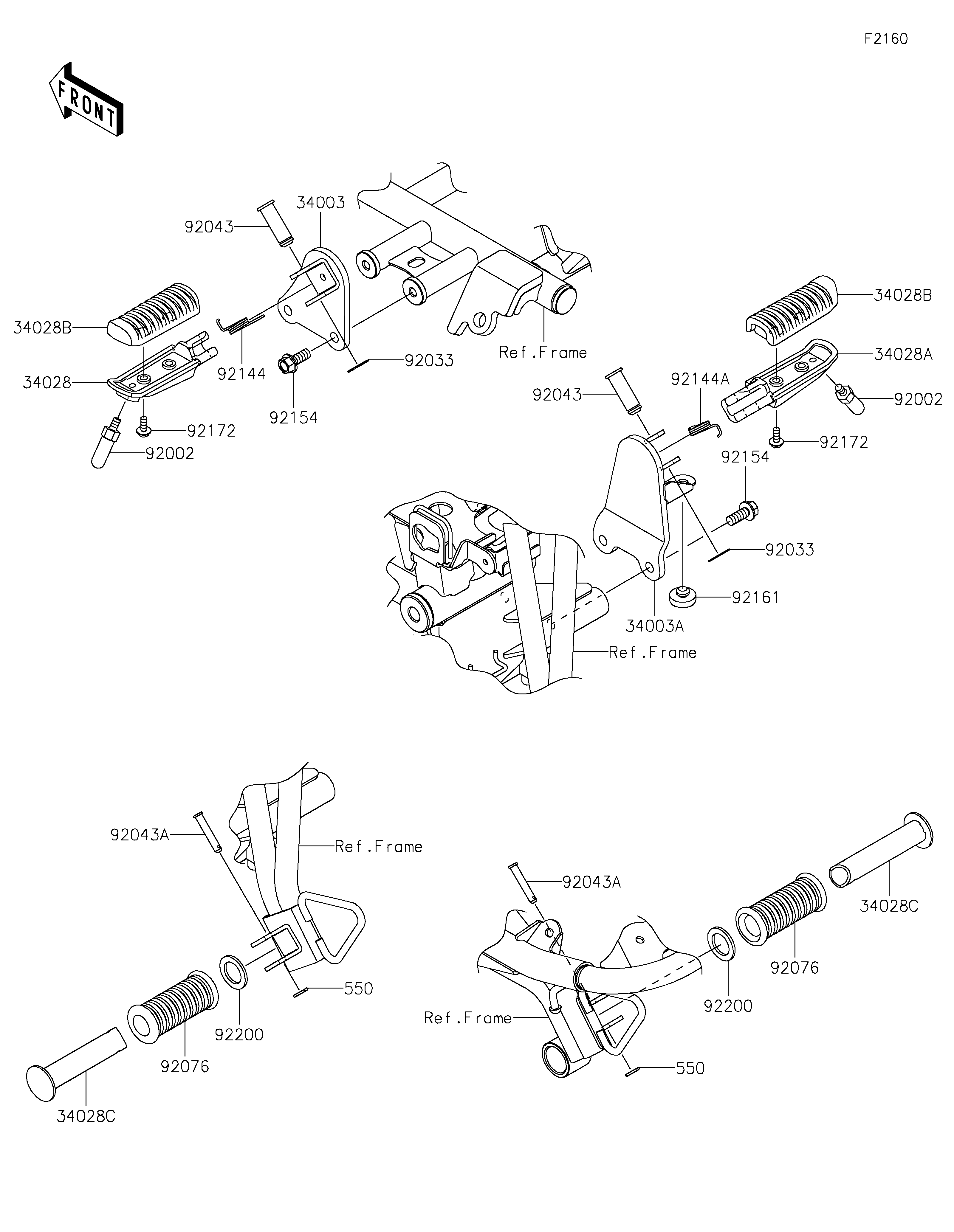

2018 W175 (Indonesia Only) - Footrests

DOWNLOAD PDF
SELECT A NEW PART
34003
34003A
34028
34028A
34028B
34028B
34028C
34028C
92002
92002
92033
92033
92043
92043
92043A
92043A
92076
92076
92144
92144A
92154
92154
92161
92172
92172
92200
92200
550
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-STEP,LH 34003 34003-0176 1
HOLDER-STEP,RH 34003A 34003-0177 1
STEP,FR,LH 34028 34028-0035 1
STEP,FR,RH 34028A 34028-0036 1
STEP,FR,RUBBER 34028B 34028-0056 2
STEP,RR 34028C 34028-0368 2
BOLT,BANK SENSOR 92002 92002-1995 2
RING-SNAP,10MM 92033 92033-0742 2
PIN,12X37 92043 92043-0025 2
PIN,6X35 92043A 92043-0799 2
DAMPER 92076 92076-020 2
SPRING,STEP RETURN 92144 92144-1567 1
SPRING,STEP RETURN 92144A 92144-1568 1
BOLT,FLANGED,8X20 92154 92154-3766 4
DAMPER,8X22X6 92161 92161-1996 1
SCREW,5X14 92172 92172-0976 4
WASHER,20X30X2.3 92200 92200-1928 2
PIN-COTTER,2.0X15 550 550AA2015 2
