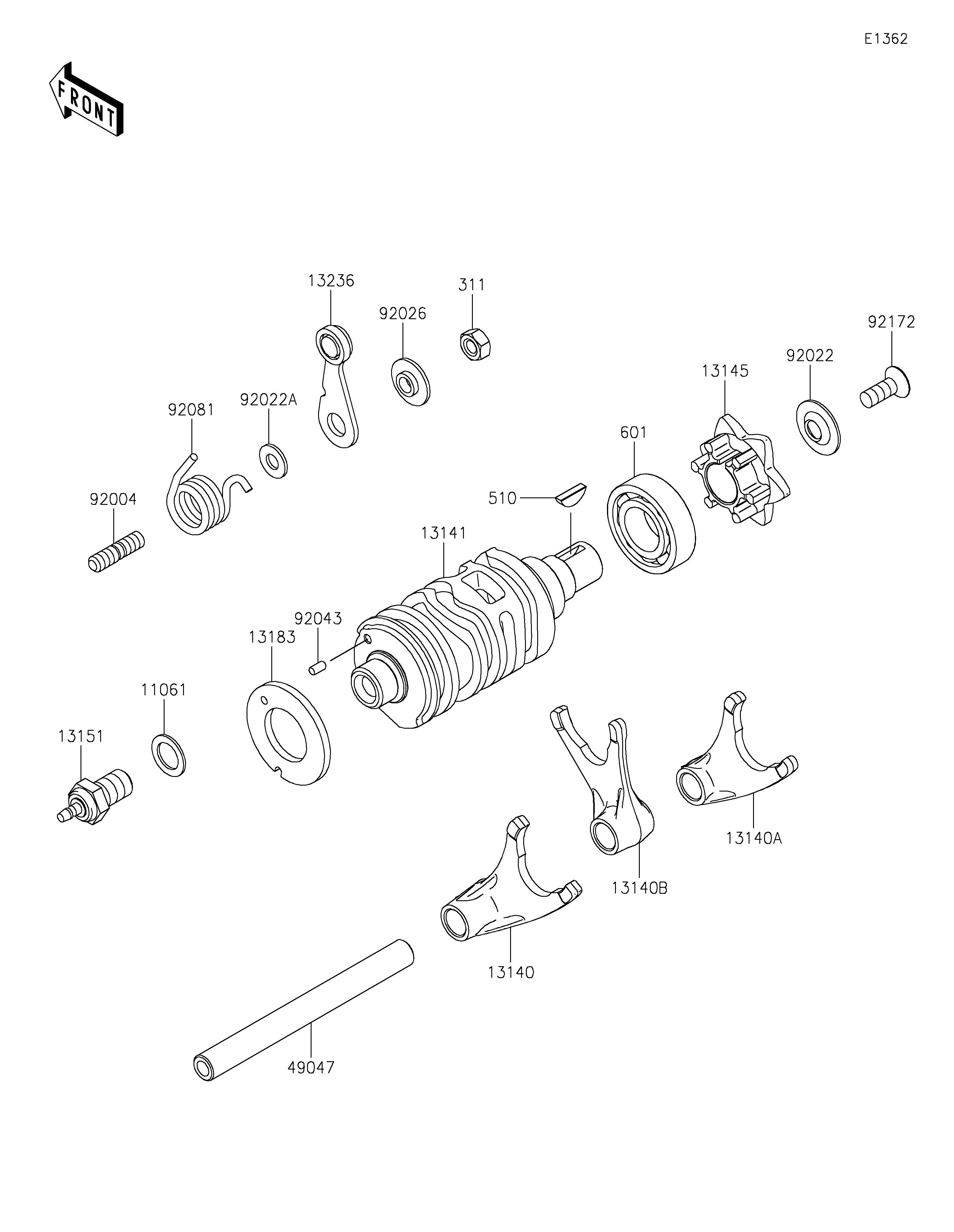

2018 W175 (Indonesia Only) - Gear Change Drum/Shift Fork(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
13140
13140A
13140B
13141
13145
13151
13183
13236
49047
92004
92022
92022A
92026
92043
92081
92172
311
510
601
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10.5X16X1 11061 11061-0373 1
FORK-SHIFT,OUTPUT 4TH 13140 13140-0661 1
FORK-SHIFT,OUTPUT LOW/3RD 13140A 13140-1320 1
FORK-SHIFT,INPUT 2ND/4TH 13140B 13140-1321 1
DRUM-CHANGE 13141 13141-0596 1
CAM-CHANGE DRUM 13145 13145-1084 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 1
PLATE,CHANGE 13183 13183-1066 1
LEVER-COMP,DRUM POSITION 13236 13236-0739 1
ROD-SHIFT 49047 49047-0633 1
STUD,6X12 92004 92004-0783 1
WASHER 92022 92022-1792 1
WASHER,6X12.8X1.2 92022A 92022-1827 1
SPACER 92026 92026-1217 1
PIN-DOWEL,3X6 92043 92043-0919 1
SPRING,POSITION LEVER 92081 92081-1993 1
SCREW,6X16 92172 92172-1198 1
NUT-HEX,6MM 311 311BA0600 1
KEY-WOODRUFF 510 510A3200 1
BEARING-BALL 601 601B6003 1
