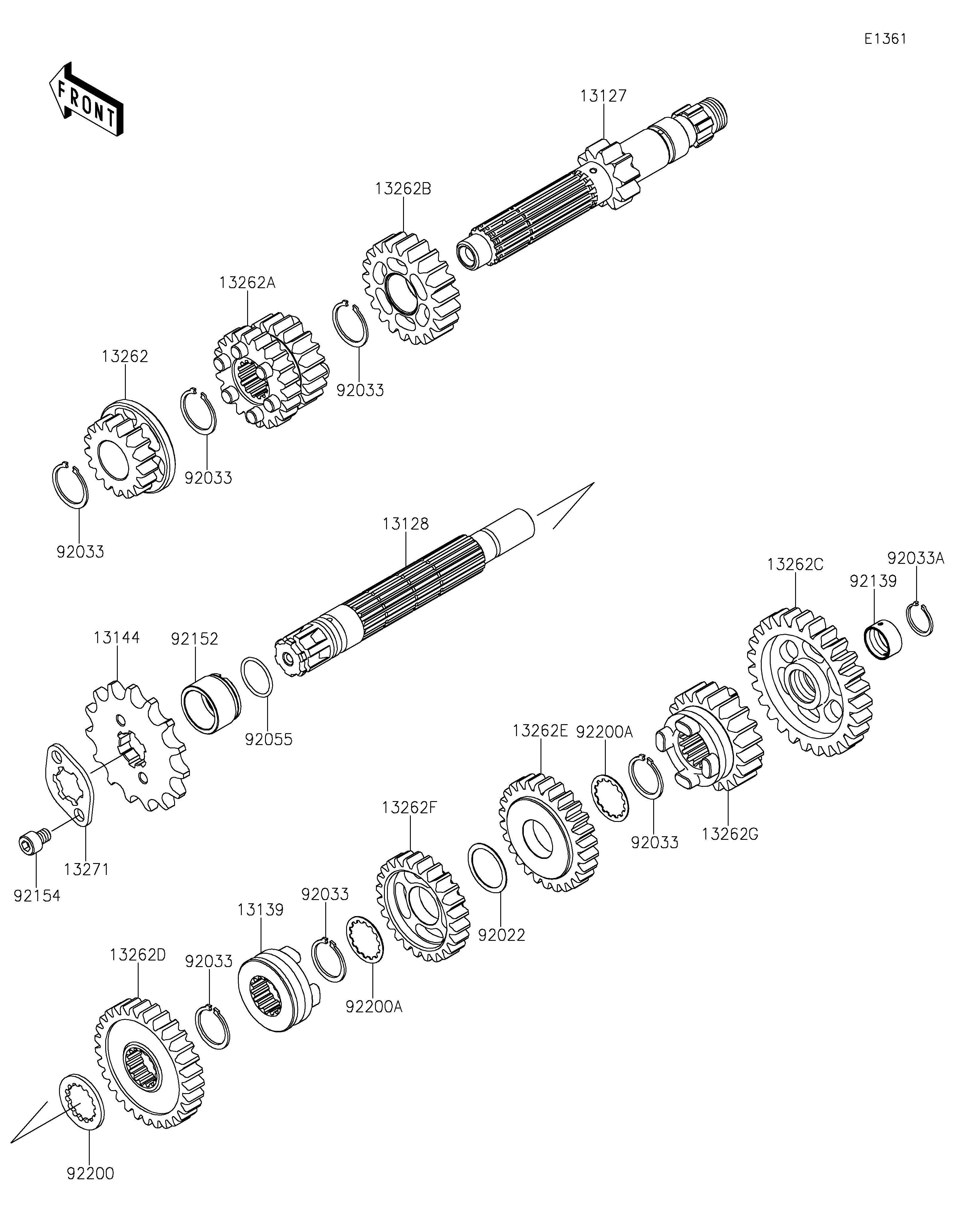

2018 W175 (Indonesia Only) - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13127
13128
13139
13144
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
13271
92022
92033
92033
92033
92033
92033
92033
92033A
92055
92139
92152
92154
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT,10T 13127 13127-0685 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0705 1
SHIFTER 13139 13139-0027 1
SPROCKET-OUTPUT 13144 13144-0578 1
GEAR,INPUT 2ND,17T 13262 13262-1277 1
GEAR,INPUT 3RD&4TH,20T&22T 13262A 13262-1278 1
GEAR,INPUT 5TH,21T 13262B 13262-1279 1
GEAR,OUTPUT LOW,27T 13262C 13262-1280 1
GEAR,OUTPUT 2ND,29T 13262D 13262-1281 1
GEAR,OUTPUT 3RD,26T 13262E 13262-1282 1
GEAR,OUTPUT 4TH,24T 13262F 13262-1283 1
GEAR,OUTPUT 5TH,20T 13262G 13262-1284 1
PLATE,SPROCKET 13271 13271-1052 1
WASHER,20.5X25.5X0.5 92022 92022-252 1
RING-SNAP 92033 92033-0793 6
RING-SNAP 92033A 92033-1260 1
RING-O,17.5X1.5 92055 92055-022 1
BUSHING 92139 92139-0897 1
COLLAR,SPROCKET 92152 92152-2351 1
BOLT,SOCKET,6X8 92154 92154-2760 2
WASHER,20.3X28X2 92200 92200-1923 1
WASHER,20.3X24X0.5 92200A 92200-1924 2
