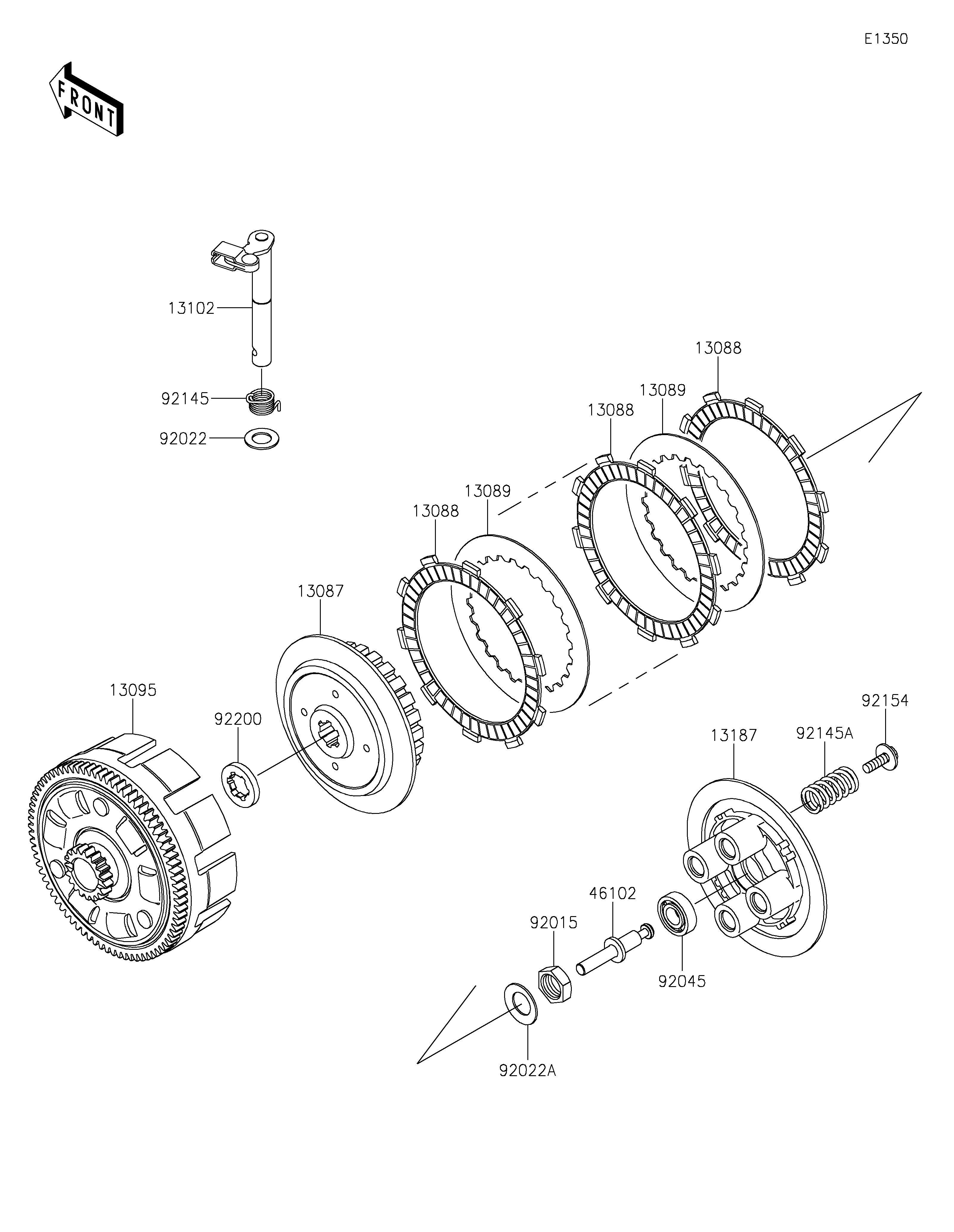

Parts Diagrams |
13087
13088
13088
13088
13089
13089
13095
13102
13187
46102
92015
92022
92022A
92045
92145
92145A
92154
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HUB-CLUTCH | 13087 | 13087-0563 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-1068 | 5 | ||
| PLATE-CLUTCH | 13089 | 13089-1076 | 4 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-0590 | 1 | ||
| RELEASE-COMP-CLUTCH | 13102 | 13102-0042 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-1072 | 1 | ||
| ROD | 46102 | 46102-0633 | 1 | ||
| NUT,LOCK,16MM | 92015 | 92015-072 | 1 | ||
| WASHER,12.5X22X1.2 | 92022 | 92022-072 | 1 | ||
| WASHER,16.3X29X1.75 | 92022A | 92022-1356 | 1 | ||
| BEARING-BALL,12X28X8 | 92045 | 92045-0830 | 1 | ||
| SPRING,RELEASE SHAFT | 92145 | 92145-1799 | 1 | ||
| SPRING,CLUTCH | 92145A | 92145-1831 | 4 | ||
| BOLT,WP,6X20 | 92154 | 92154-2118 | 4 | ||
| WASHER,20X30X4.5 | 92200 | 92200-1910 | 1 |
